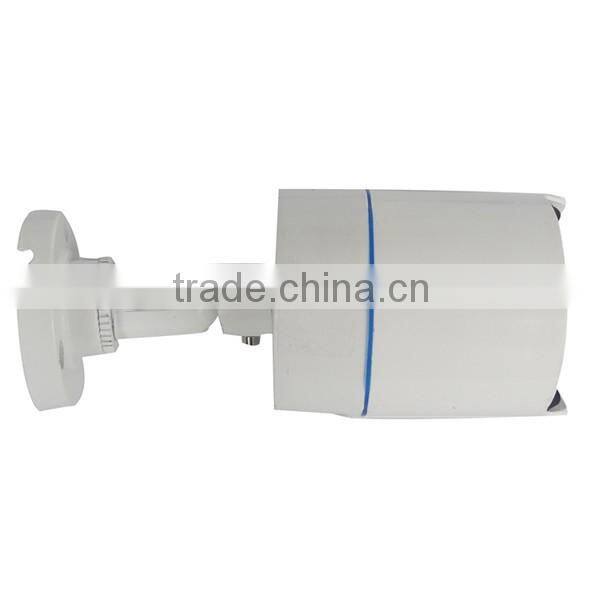

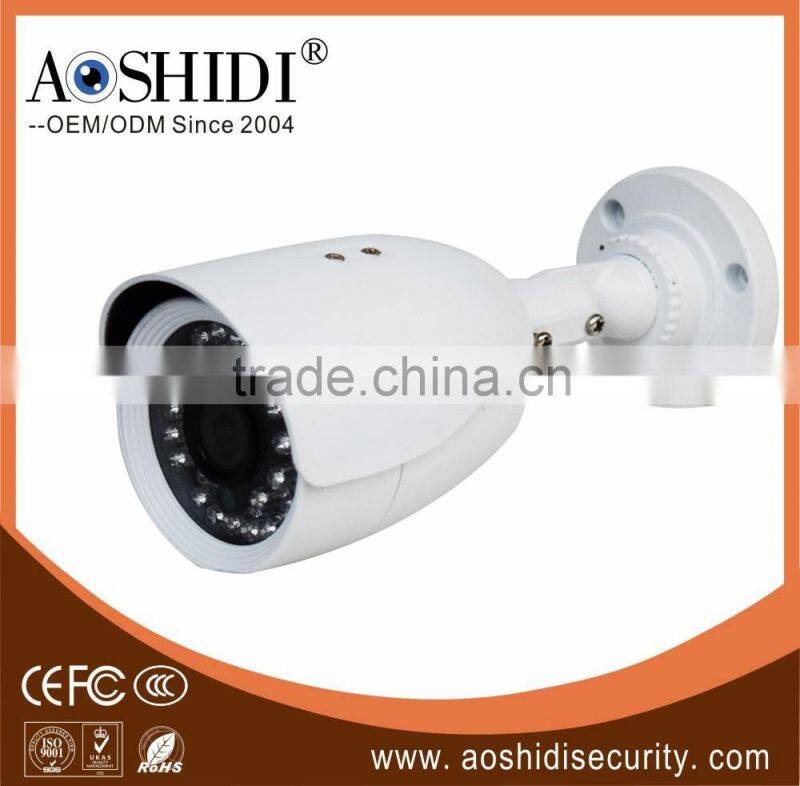

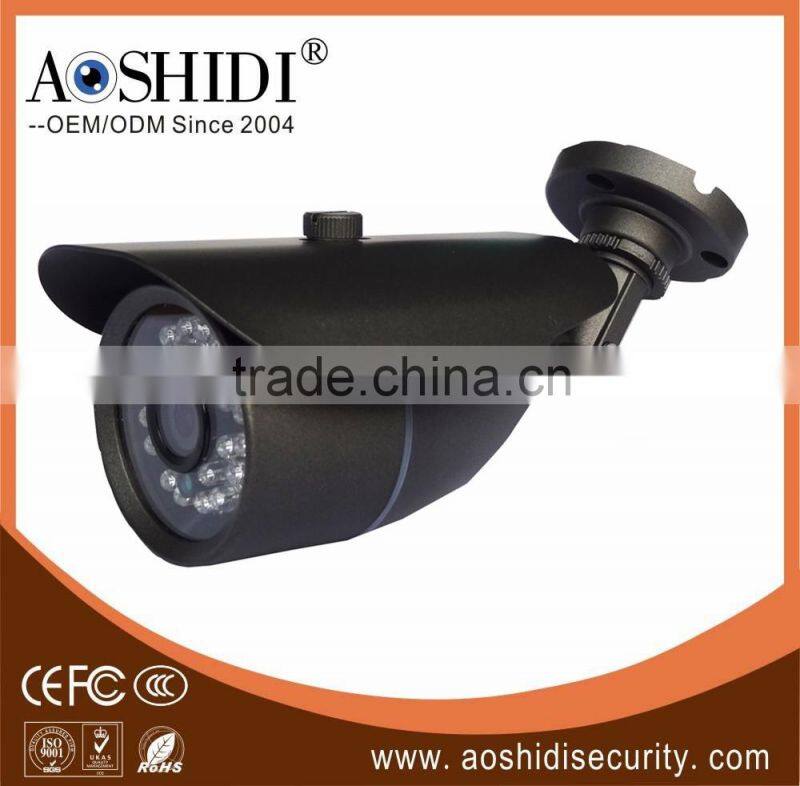

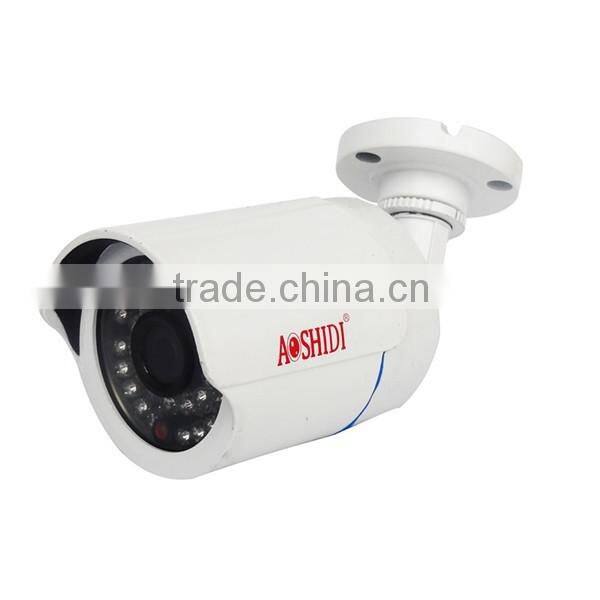

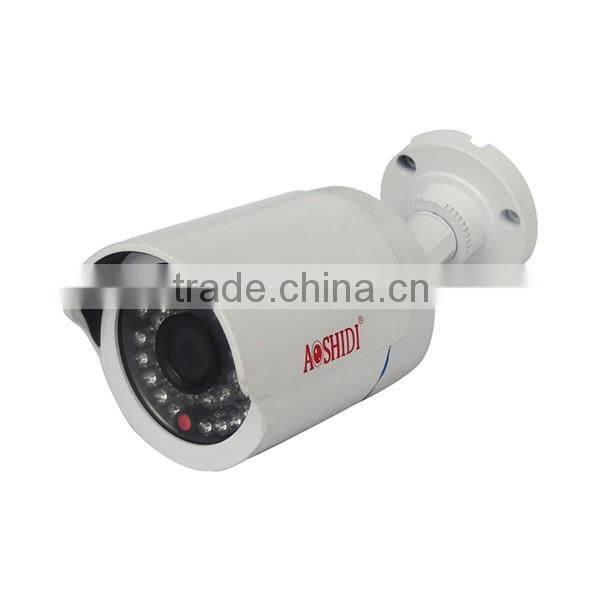

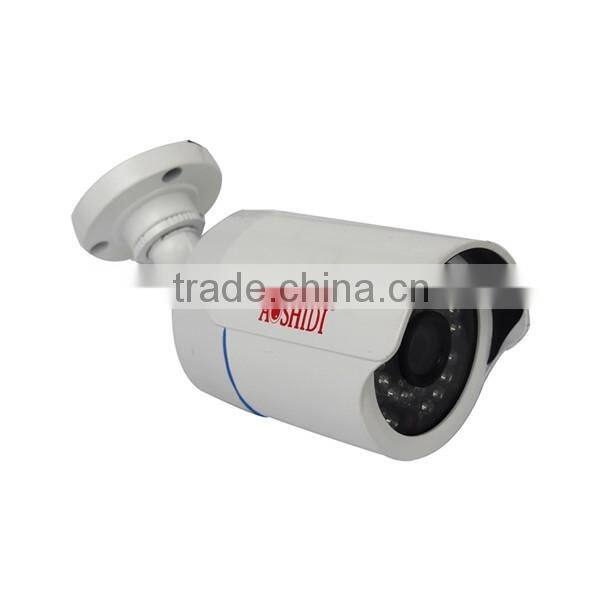

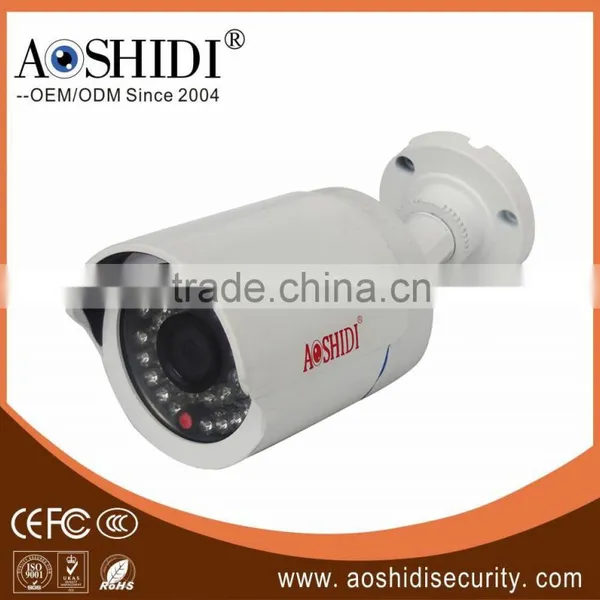

B3K 1mp/1.3mp/2mp IP Cameras, High Definition 30M IR Onvif P2P POE Security Camera

B3K 1mp/1.3mp/2mp IP Cameras, High Definition 30M IR Onvif P2P POE Security Camera thumbnail-1
B3K 1mp/1.3mp/2mp IP Cameras, High Definition 30M IR Onvif P2P POE Security Camera thumbnail-2
B3K 1mp/1.3mp/2mp IP Cameras, High Definition 30M IR Onvif P2P POE Security Camera thumbnail-3
B3K 1mp/1.3mp/2mp IP Cameras, High Definition 30M IR Onvif P2P POE Security Camera thumbnail-4
B3K 1mp/1.3mp/2mp IP Cameras, High Definition 30M IR Onvif P2P POE Security Camera thumbnail-5
B3K 1mp/1.3mp/2mp IP Cameras, High Definition 30M IR Onvif P2P POE Security Camera thumbnail-6
B3K 1mp/1.3mp/2mp IP Cameras, High Definition 30M IR Onvif P2P POE Security Camera photo-1

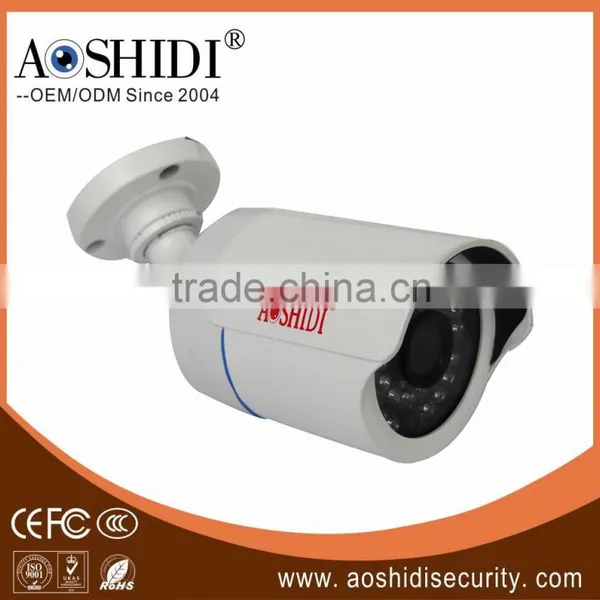

B3K 1mp/1.3mp/2mp IP Cameras, High Definition 30M IR Onvif P2P POE Security Camera photo-2

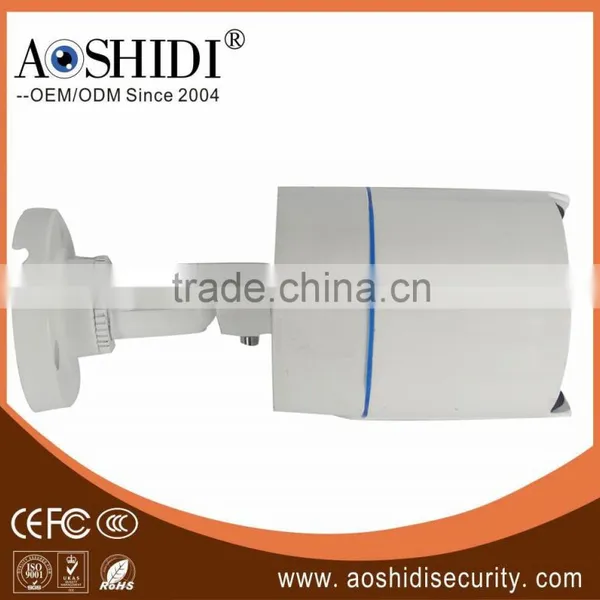

B3K 1mp/1.3mp/2mp IP Cameras, High Definition 30M IR Onvif P2P POE Security Camera photo-3

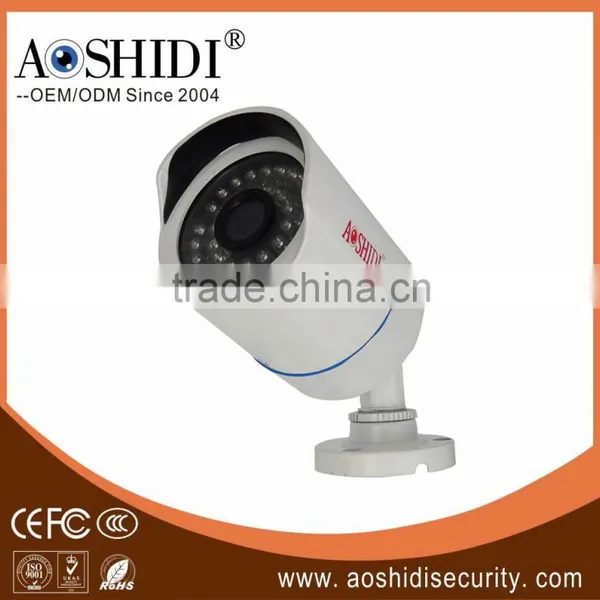

B3K 1mp/1.3mp/2mp IP Cameras, High Definition 30M IR Onvif P2P POE Security Camera photo-4

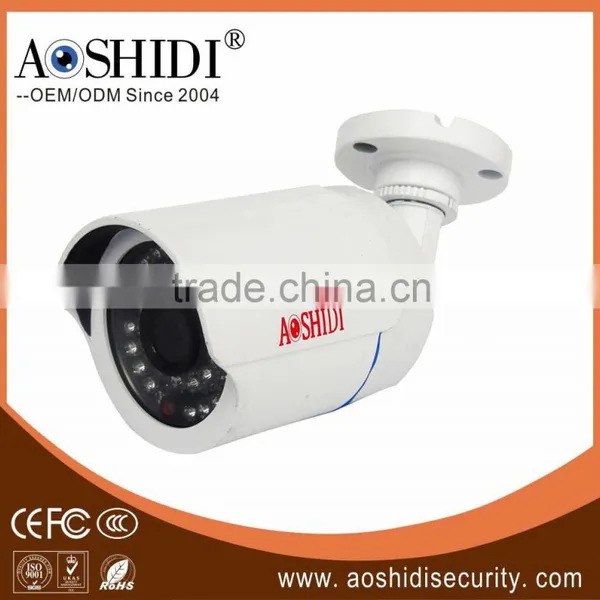

B3K 1mp/1.3mp/2mp IP Cameras, High Definition 30M IR Onvif P2P POE Security Camera photo-5

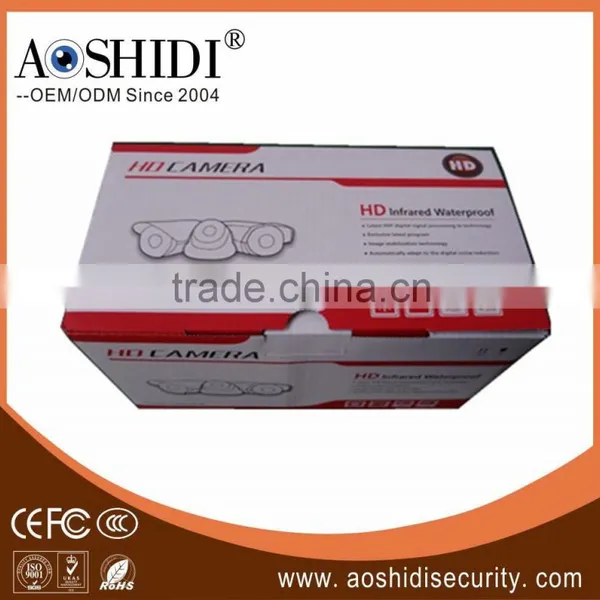

B3K 1mp/1.3mp/2mp IP Cameras, High Definition 30M IR Onvif P2P POE Security Camera photo-6
US$ 6.6 - 23.6 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Aoshidi
Model Number:
B3K IP Series
Contact Supplier Request Quote Chat Now
Shenzhen Aoshidi Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Aoshidi
Model Number B3K IP Series
Type IP Camera
Style Bullet Camera
Sensor CMOS
Technology Infrared
Special Features Waterproof / Weatherproof
Description

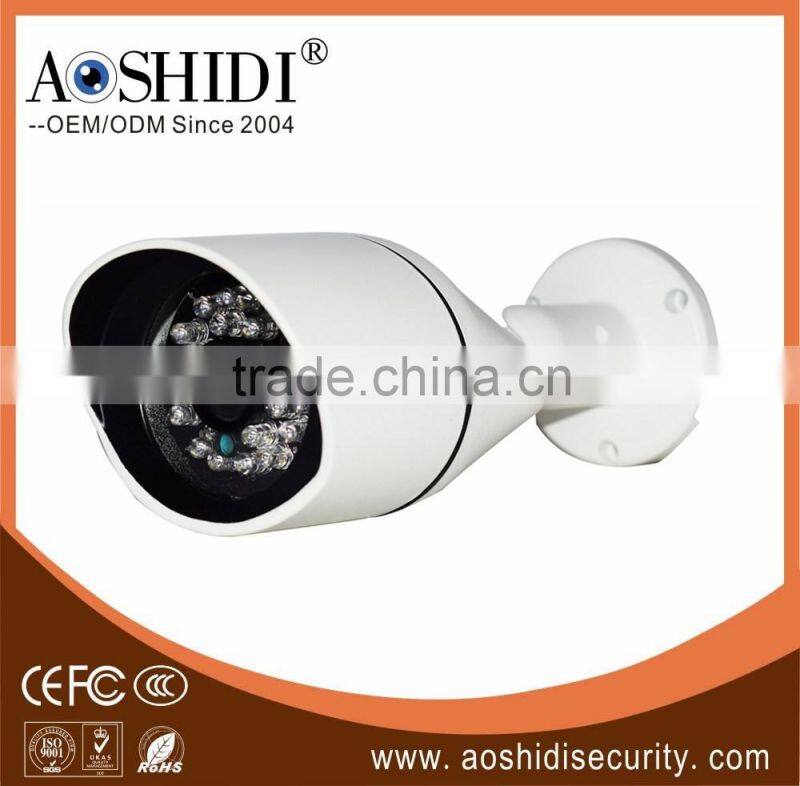

B3K 1mp/1.3mp/2mp IP cameras, High Definition 30M IR Onvif P2P POE security camera

Features IP Camera:

•1MP /1.3MP/2MP/3MP/4MP/5MP HD Resolution optional

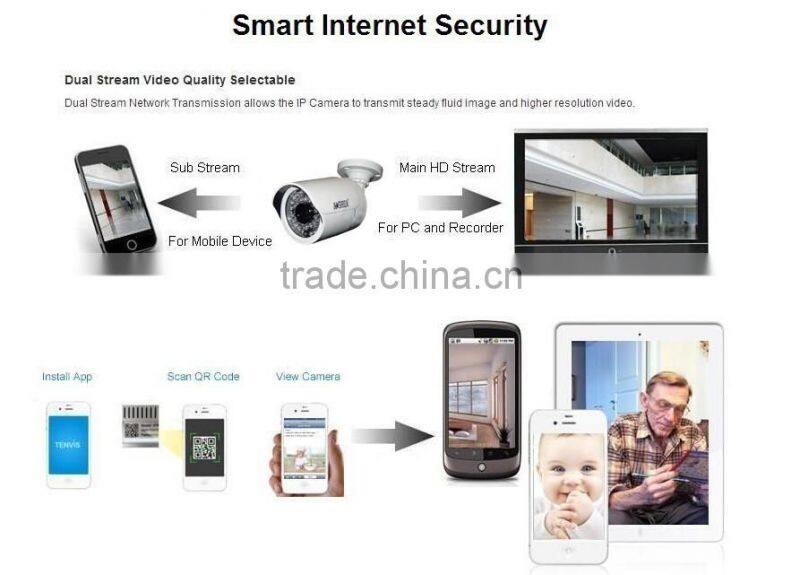

•Support Dual Stream
•Support P2P Cloud Service;
•Support Motion Detection and Alarm Notification on mobile phone
•Support Onvif, compatible with Blue Iris
•Mobile monitor: Support iPhone, Windows Mobile, BlackBerry, Symbian,Android
•Support IE, Google, Firefox Browser
•Support DHCP,PPPOE,FTP,DNS,DDNS,NTP,UPNP,EMAILl,IP Access,Alarm
•Provide SDK for further development
•2MP/3MP lens
•Material:Metal

.Warranty: 3 years warranty
.Certificates:CE,ROHS,FCC

Model NO.
B3K50-IP
B3K40-IP
B3K18-IP
B3K96-IP
B3K72-IP
Camera
Image Sensor
1/1.8" SONY IMX178
1/3" OV4689
1/2.8" SONY IMX322
1/3" Aptina AR0130
1/4" Omnivision OV9712
Main processor
Hi3516A
Hi3516D
HI3516C
HI3518E
HI3518E
Resolution
5MP
4MP
1080P
960P
720P
Effective Pixels
2592(H)*1944(V)
2592(H)*1520(V)
1920(H)*1080(V)
1280(H)*960(V)
1280(H)*720(V)
TV System

PAL/NTSC
Electronic Shutter Time

Auto: PAL 1/1-1/10000Sec; NTSC 1/1-1/10000Sec
Sync System

Internal
Usable Illumination
0.001Lux
0.001Lux
0.01Lux
0.01Lux
0.1Lux
S/N Ratio

≥52dB
Scanning System

Progressive
Video Output

Network

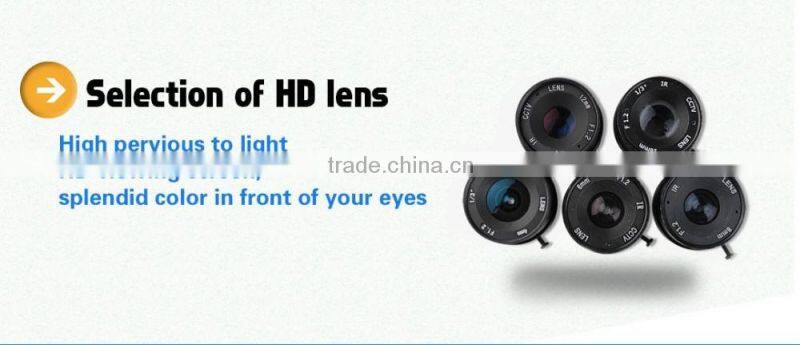

Lens
Focus Length

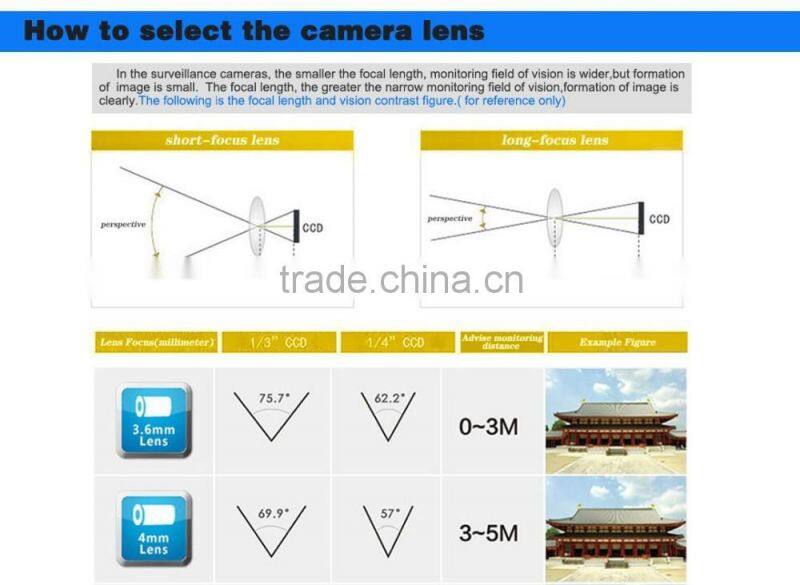

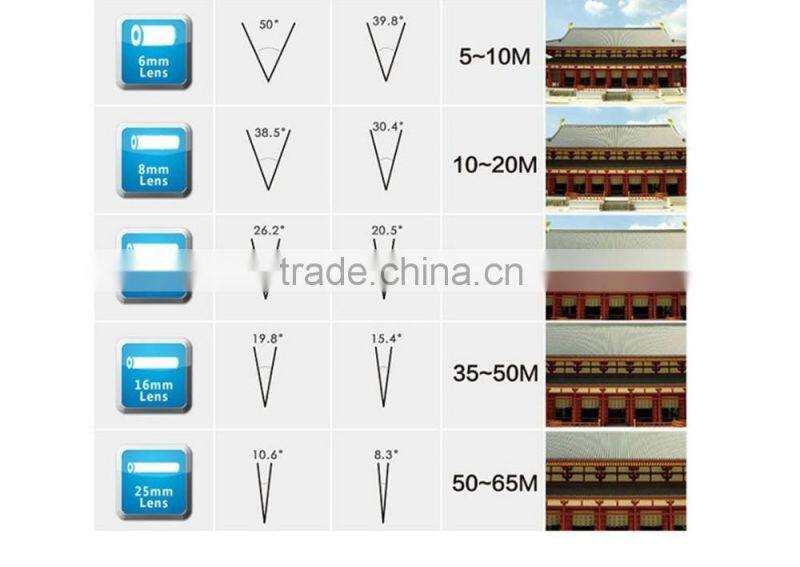

Default 3.6mm Fixed Lens(2.8mm/6mm optional)
Pixels
3M Pixel
3M Pixel
3M Pixels
2M Pixels
2M Pixels
Night Vision
5MP
4MP
1080P
960P
720P
Infrared LED

￠5X36PCS
Infrared Distance

30M
IR Status

Under 10 Lux By CDS
IR Power On

CDS Auto Control
Network
Ethernet

RJ-45 (10/100Base-T)
Protocol

IPv4, HTTP, TCP/IP, FTP, NTP, RTSP, UDP, SMTP, DNS, DDNS
ONVIF

Support ONVIF 2.4
P2P

YES, Support QR Code
POE

Optional, Support IEEE 802.3af
WIFI

N/A
Video Delay

0.3S (Within the Lan)
Main Stream
2592*1944@30fps
2592*1520@15fps
1920*1080@30fps
1280*960@30fps
1280*720@25fps
Sub Stream
1280*720@30fps
704*576@30fps,352*288@30fps
1920(H)*1080(V)
1280(H)*960(V)
1280(H)*720(V)
IE Brower

IE8-11, Google Chrome, Firefox
Smart Phone

iPhone, iPad, Android, Android Pad
Camera Features

Internal

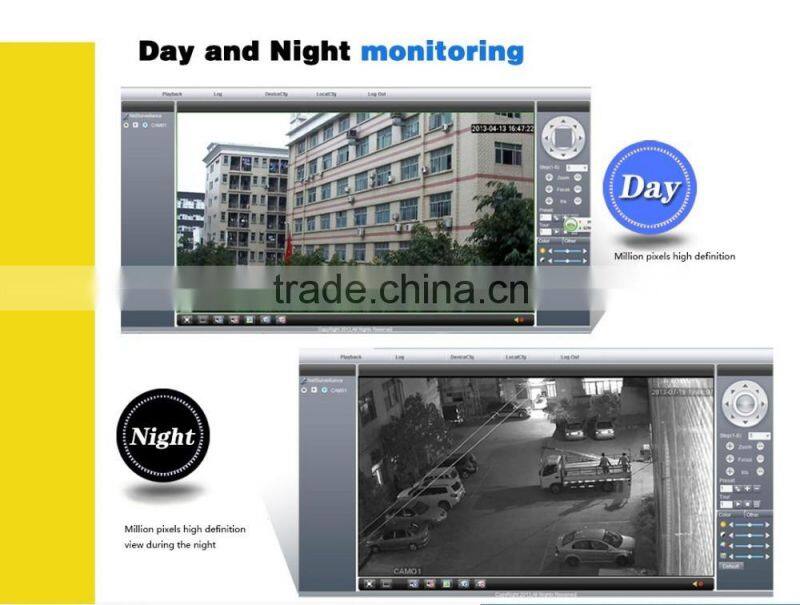

Day/Night

Color/ B&W (IR-CUT )
Compression
H.264/H.264,Support record AVI format.
H.264/JPEG,Support record AVI format.
Image Config
Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, BLC, FLK(Flicker Control)

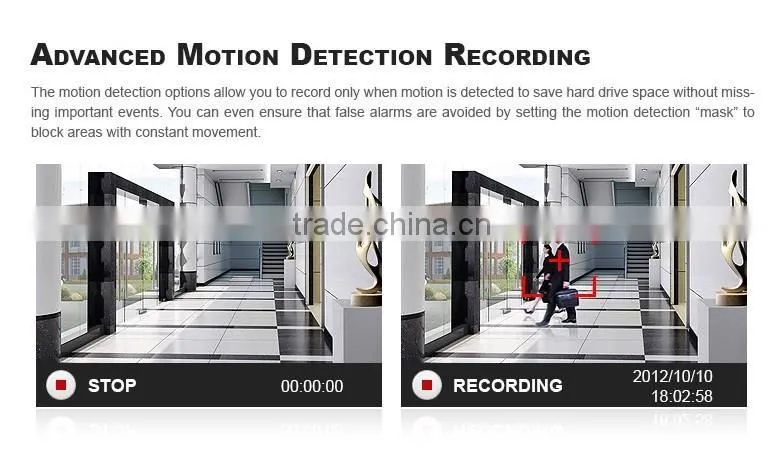

Motion Detection

Support
Privacy Masking

3 Rectangular Zone
WDR
NO, support digital
NO, support digital
NO, support digital
NO
NO
Recording Mode

NVR/NAS/CMS/Web
Language

Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian
General
Housing

Weatherproof,P66
Anti-cut Bracket

Yes,3-Axis
IR Cut Filter

YES
Operation Temperature

-20℃ ~ +50℃ RH95% Max
Storage Temperature

-30℃ ~ +60℃ RH95% Max
Power Source

DC12V±10%, 1000mA
Dimension

155*65*65mm (Color Box: 168*82*95mm)
Weight

0.45kgs
Related Products

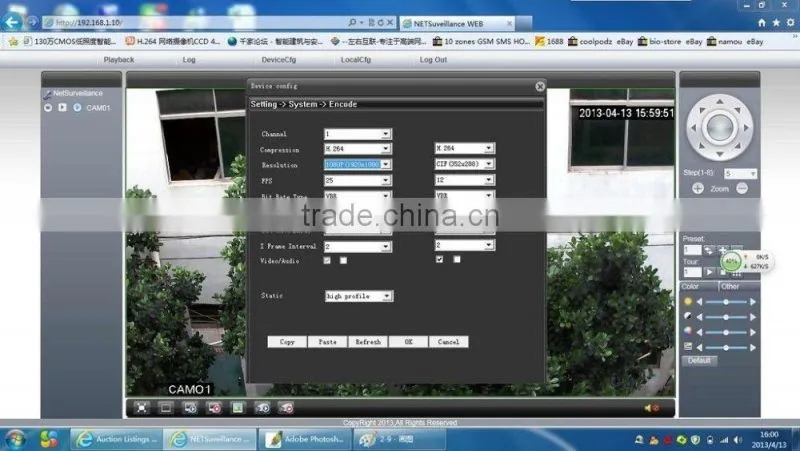

Product Function

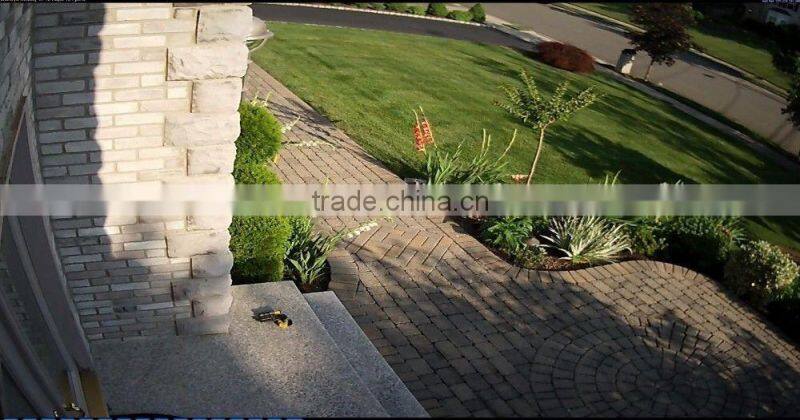

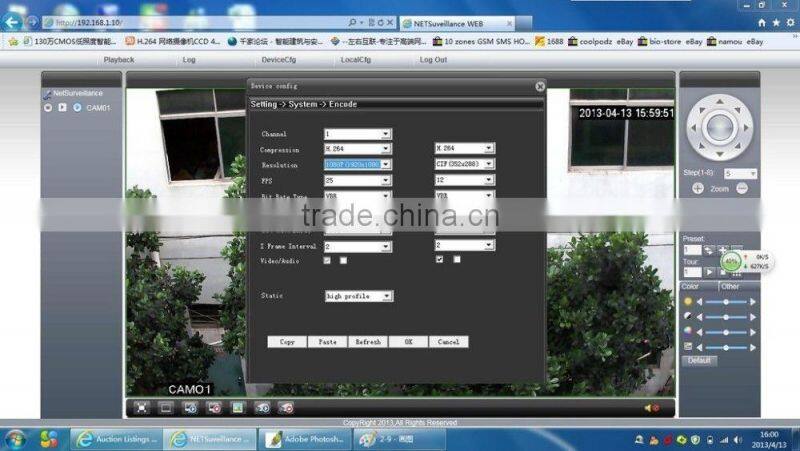

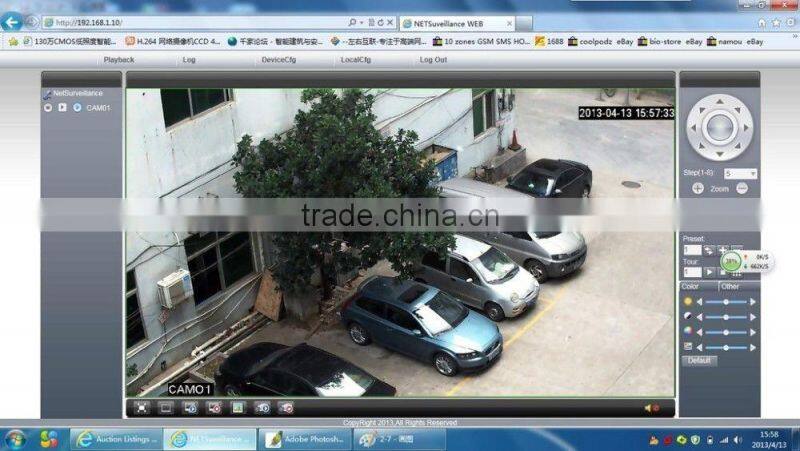

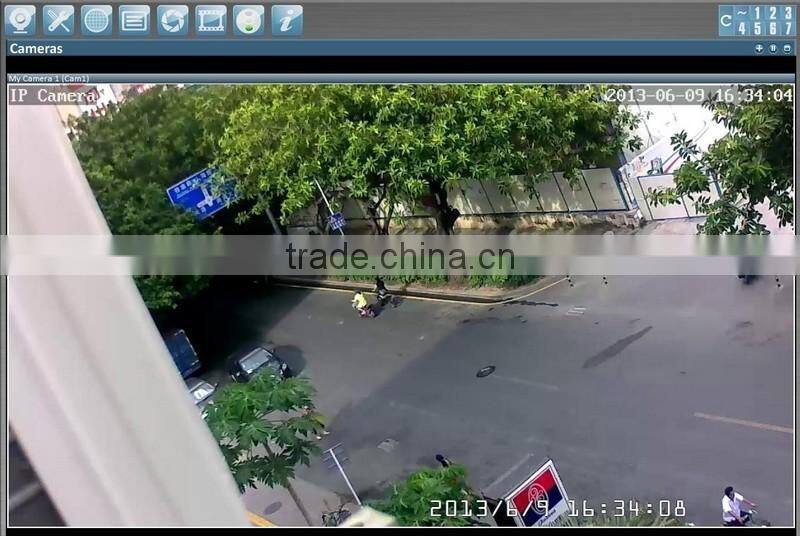

Pictures Taken from Blue Iris

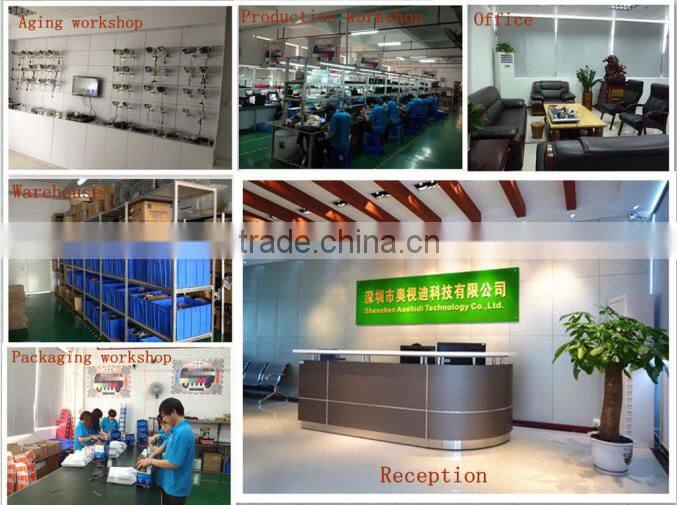

Factory & Fair

Aoshidi Fair: CPSE, Exposec, ISAF, HK Fair and so on

Certificate

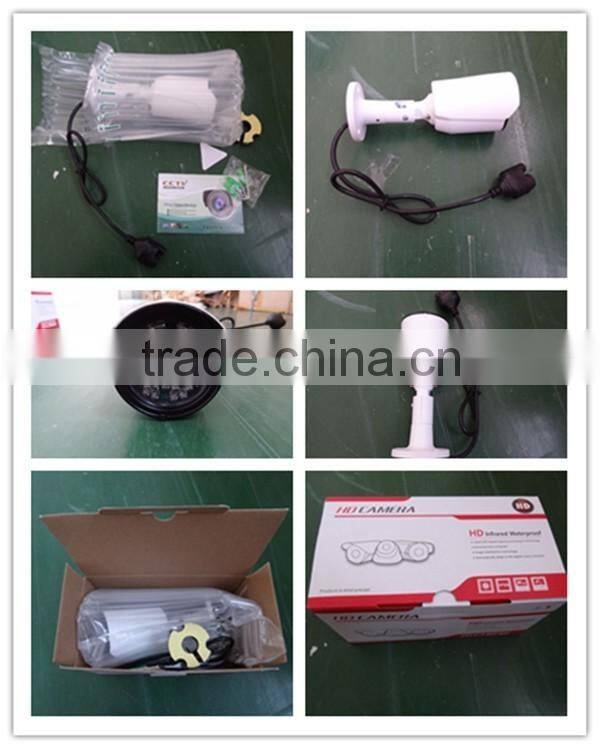

Packing&Delivery
Our Service

1. We Aoshidi are a professional factory in security products, with high flexibility, so we will try our best to satisfy customers. And we adopt “ quick sale and small profit ” sincerely, do not need to worry about our prices and products.
2. Our service tenet: Trust brings further cooperation.
3. Only quality and service can speak for us.
4. For the mutual benefit, we will do our best.
5. So choose us, and we will not let you down.
