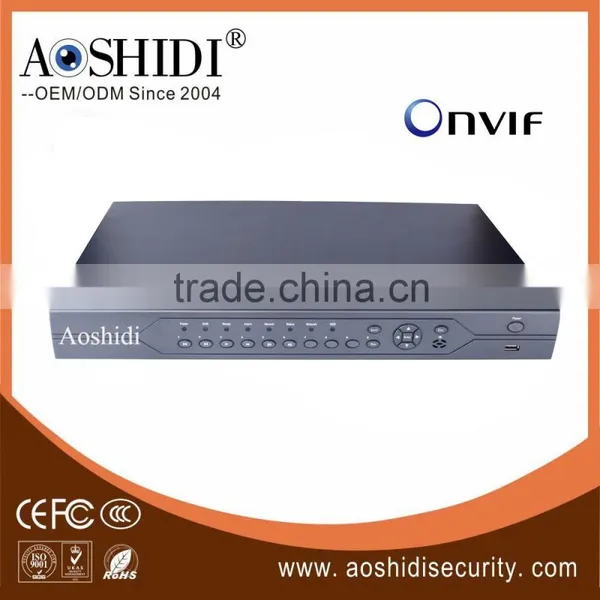

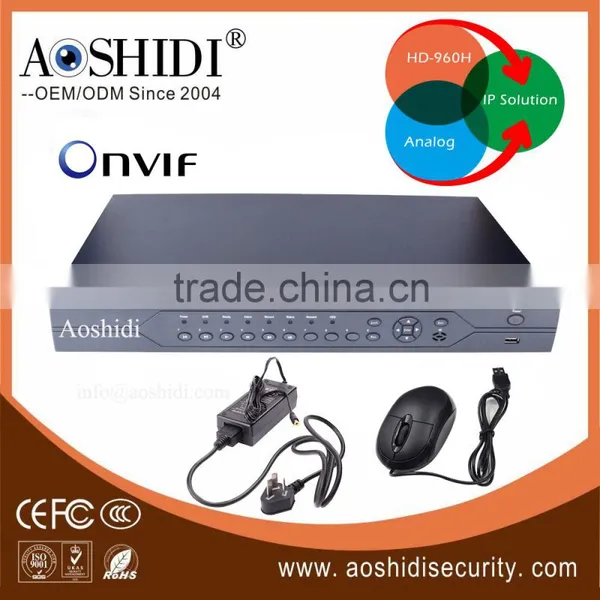

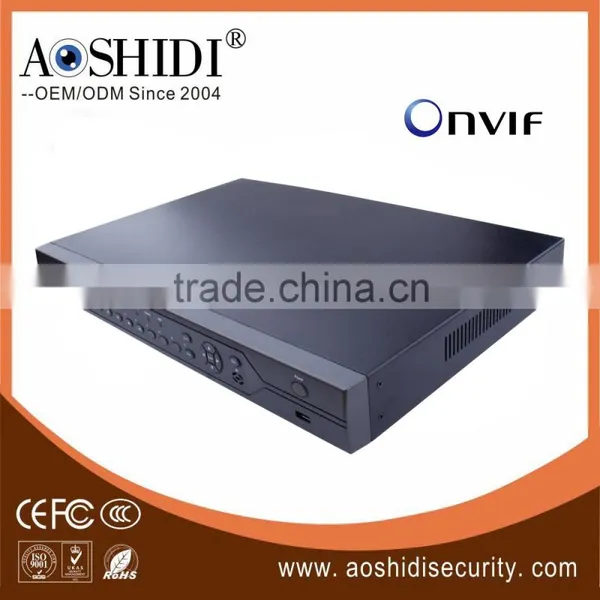

24CH Channel HD 1080P AHD DVR Recorder, NVR HVR Support Onvif P2P Cloud

24CH Channel HD 1080P AHD DVR Recorder, NVR HVR Support Onvif P2P Cloud thumbnail-1
24CH Channel HD 1080P AHD DVR Recorder, NVR HVR Support Onvif P2P Cloud thumbnail-2
24CH Channel HD 1080P AHD DVR Recorder, NVR HVR Support Onvif P2P Cloud thumbnail-3
24CH Channel HD 1080P AHD DVR Recorder, NVR HVR Support Onvif P2P Cloud thumbnail-4
24CH Channel HD 1080P AHD DVR Recorder, NVR HVR Support Onvif P2P Cloud thumbnail-5
24CH Channel HD 1080P AHD DVR Recorder, NVR HVR Support Onvif P2P Cloud thumbnail-6
24CH Channel HD 1080P AHD DVR Recorder, NVR HVR Support Onvif P2P Cloud photo-1
24CH Channel HD 1080P AHD DVR Recorder, NVR HVR Support Onvif P2P Cloud photo-2
24CH Channel HD 1080P AHD DVR Recorder, NVR HVR Support Onvif P2P Cloud photo-3

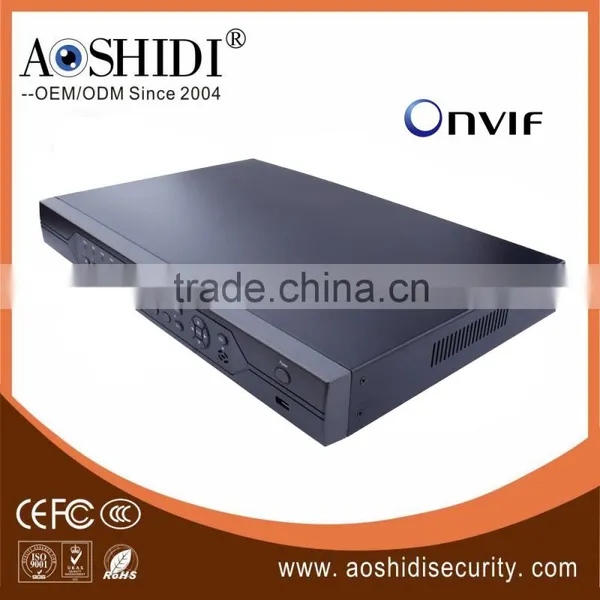

24CH Channel HD 1080P AHD DVR Recorder, NVR HVR Support Onvif P2P Cloud photo-4
24CH Channel HD 1080P AHD DVR Recorder, NVR HVR Support Onvif P2P Cloud photo-5
24CH Channel HD 1080P AHD DVR Recorder, NVR HVR Support Onvif P2P Cloud photo-6
US$ 19.3 - 39.72 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OEM
Model Number:
AD-9024T-NH-2
Contact Supplier Request Quote Chat Now
Shenzhen Aoshidi Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name OEM
Model Number AD-9024T-NH-2
Description

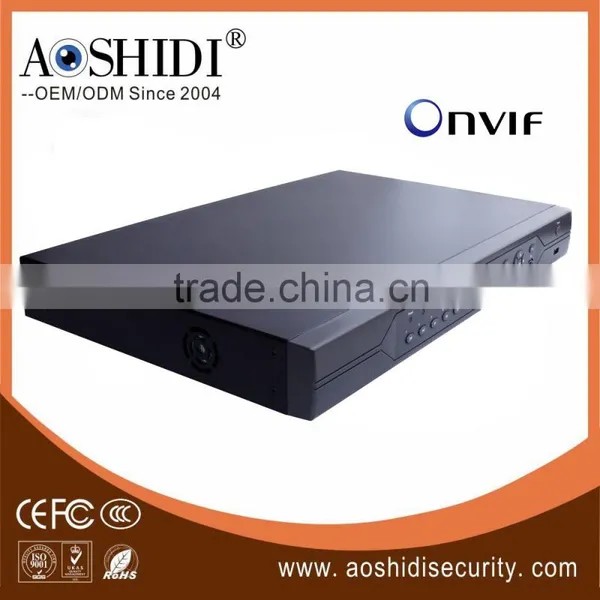

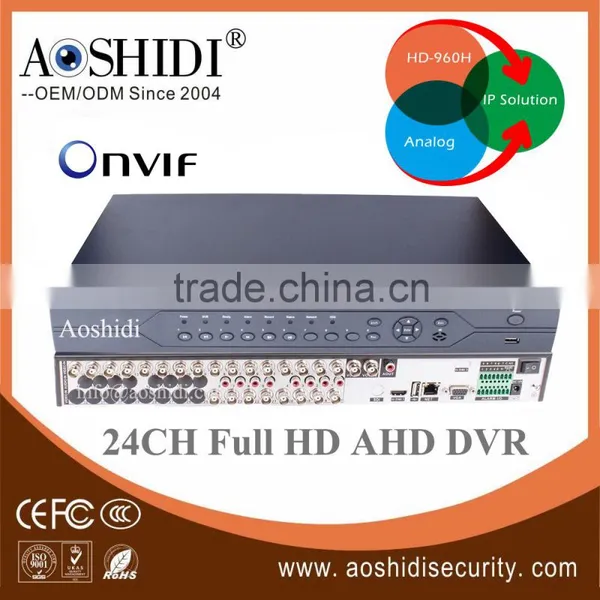

24CH Channel HD 1080P AHD DVR Recorder with HDMI, NVR HVR support Onvif P2P Cloud

Features DVR:

1)24CH AHD DVR
2)24ch BNC video input; 1*VGA and 1*HDMI Output
3)8ch audio input and 1ch audio output,8ch Alarm in and 4ch alarm out
4)Encoding: 24*AHD-M
5)Decoding: 8*AHD-M
6)Three Input Mode
Pure Analog: 24*AHD-M，16*AHD-M；16*AHD-L
Hybrid:4*AHD-M(Analog) + 4*720P(Network);
Pure Network: 1*1080P+8*720P；4*1080P；20*960H；
7)1*RS485, 1*RJ45(10M/100M),2*USB
8)Support two Sata HDD(each up to 4TB)
9)Support P2P, cloud service, audio intercom,
10)12V 4A DC input

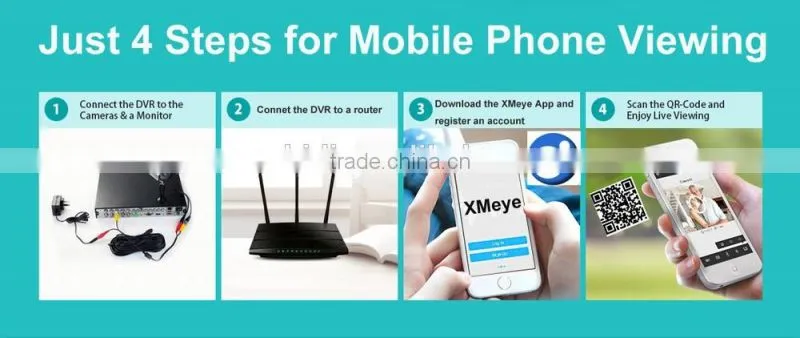

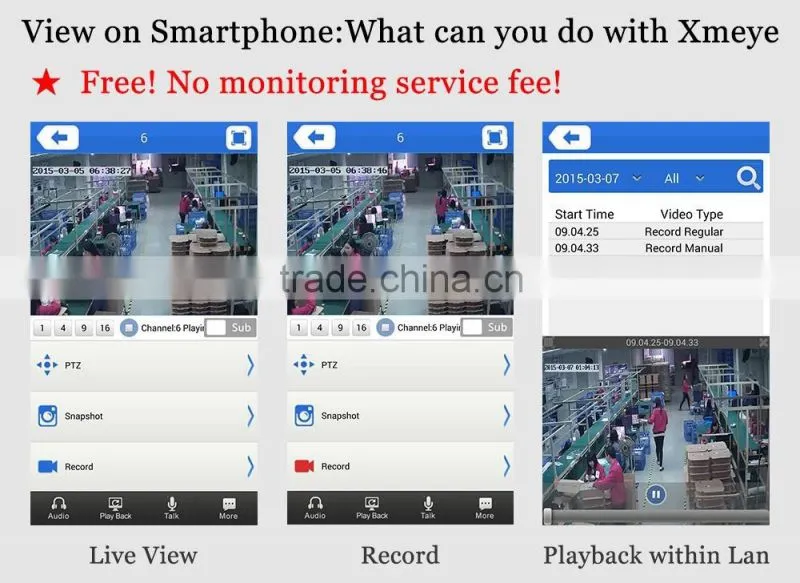

11)Support mobile phone view
12)Size: 1.5U

Weight: 2.5KG
Model
AD-9024T-NH-2
System
Main processor
Hi3535

Video
Video compression
H.264(High Profile);JPEG snapshot
Encode capacity
24*AHD-M
Decode capacity
8*AHD-M
Multi-mode input
Pure Analog: 24*AHD-M,16*AHD-M; 16*AHD-L
Hybrid:4*AHD-M(Analog) + 4*720P(Network);
Pure Network: 1*1080P+8*720P; 4*1080P; 20*960H;
Audio
Audio compression
G.711A
Intercom
support
Record & playback
Record mode

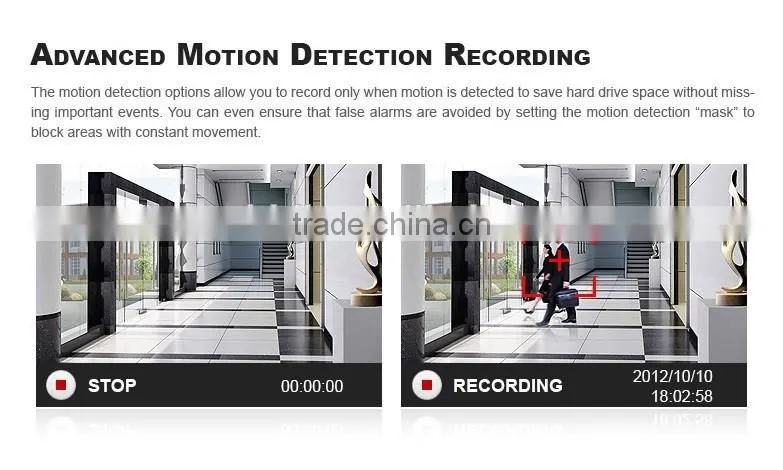

manual>alarm>motion detection>timing
Playback
8ch

Storage & backup
Space occupation
960H: 12~20G/ day*channel
720P: 20G~30G/ day*channel
1080P: 20~30G/ day*channel
Audio: 691.2M/ day*channel
Backup mode
Network, U-disk, USB burner, SATA burner

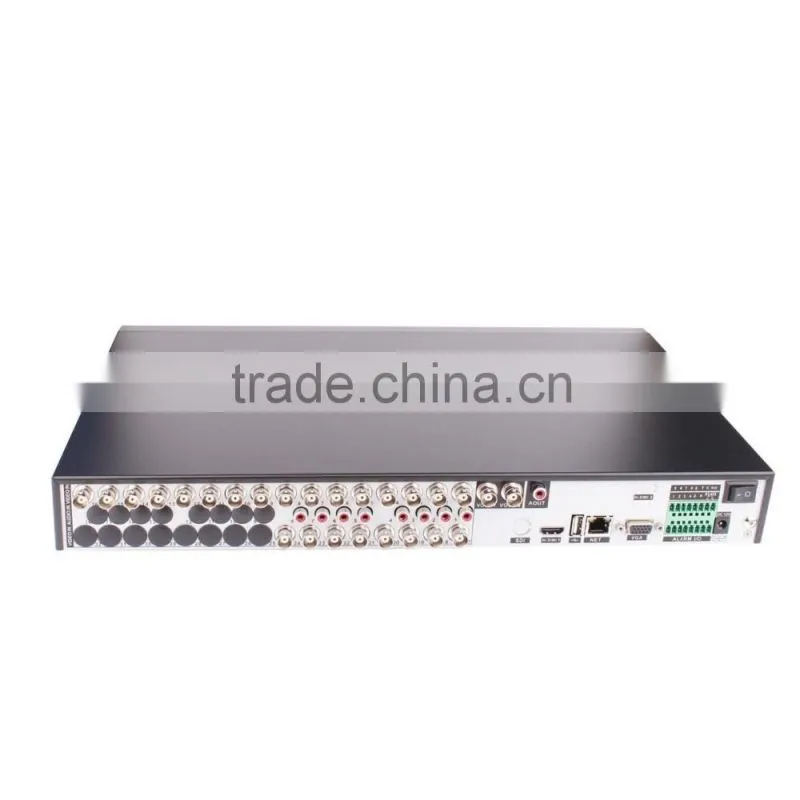

Interface
Video input
24ch BNC
Video output
1ch VGA,1ch HDMI
Audio input
8ch RCA
Audio output
1ch RCA

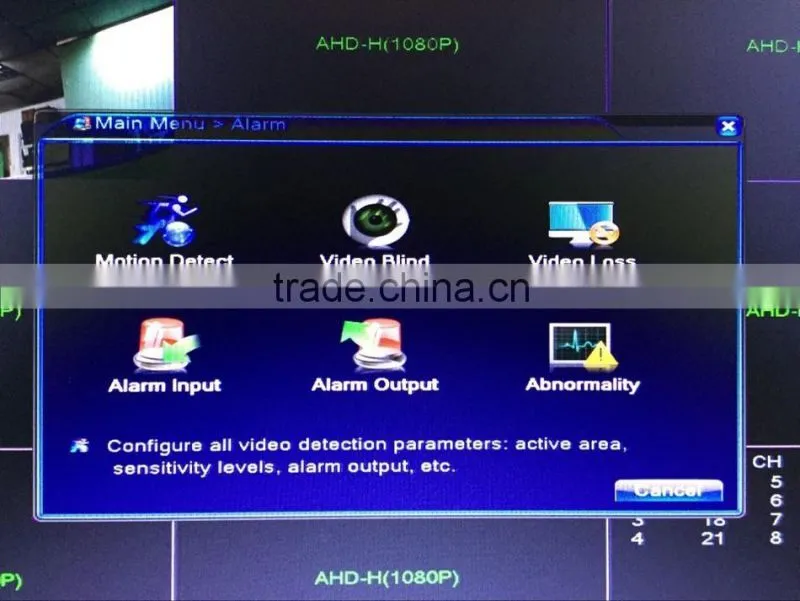

Alarm input
8ch Alarm in
Alarm output
4ch alarm out
Network interface
RJ45 10M/100M
PTZ control
RS485; support multiple PTZ protocols
USB
2* USB 2.0
HDD
2*SATA port (Max 4TB/per)
3G/Wifi
 Support External 3G/wifi Module via USB




Other
Onvif
Yes

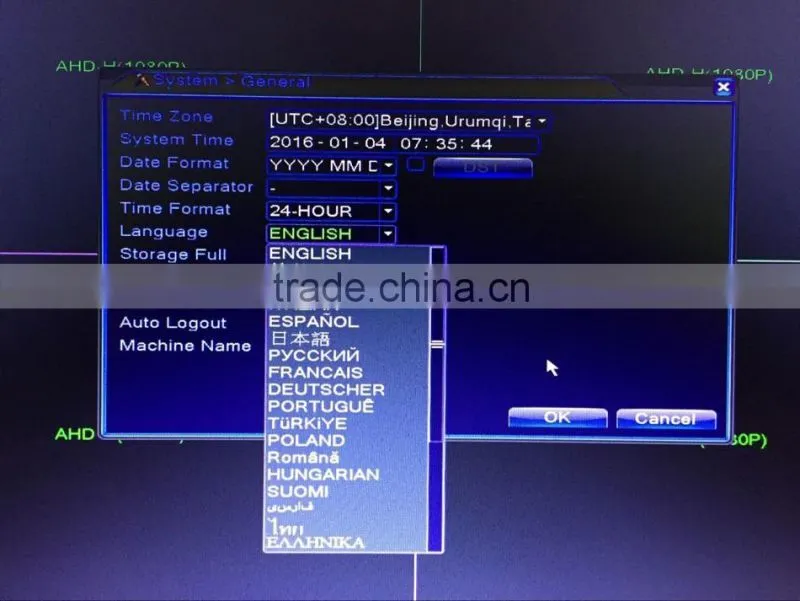

Language
English, Finnish, French, German, Greek, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, T-Chinese, S-Chinese, Turkish
Power supply
12V/4A
Weight
2.5Kg
Dimension
235mm(L)*260mm(W)*40mm(H)
