Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > GYTA Duct and Non-Self Supproting Aerial Cable Optic Fiber Cable

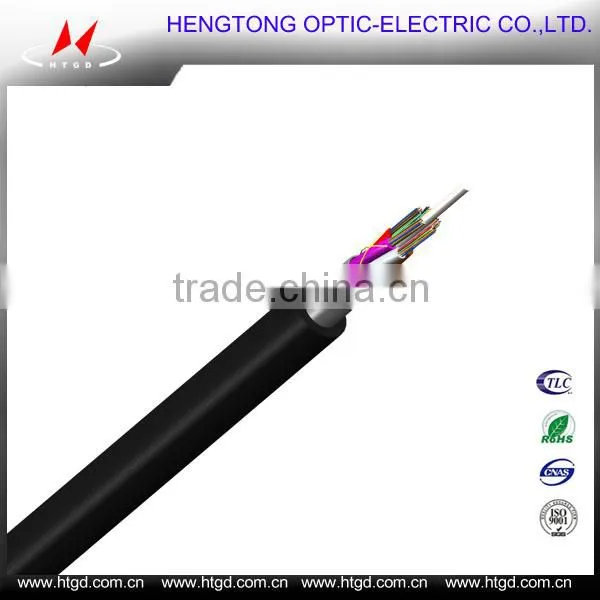

GYTA Duct and Non-Self Supproting Aerial Cable Optic Fiber Cable

Name: GYTA Duct and Non-Self Supproting Aerial Cable Optic Fiber Cable
Brand: HTGD
SKU: 133805201
Availability: InStock

GYTA Duct and Non-Self Supproting Aerial Cable Optic Fiber Cable thumbnail-1

GYTA Duct and Non-Self Supproting Aerial Cable Optic Fiber Cable thumbnail-2

GYTA Duct and Non-Self Supproting Aerial Cable Optic Fiber Cable photo-1

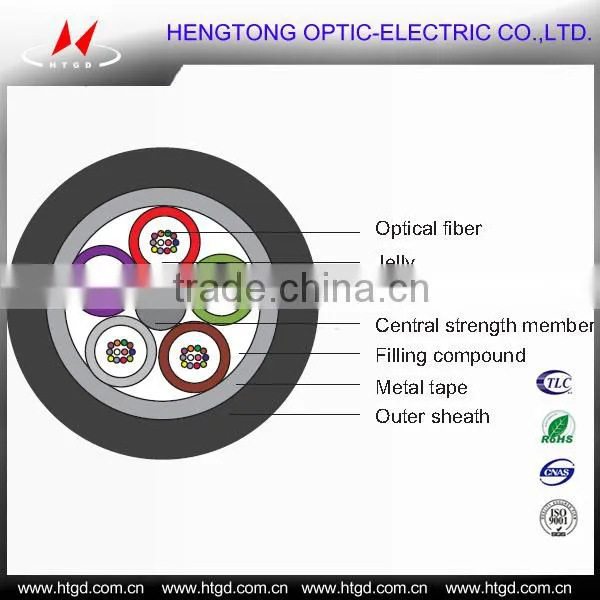

GYTA Duct and Non-Self Supproting Aerial Cable Optic Fiber Cable photo-2

US$ 200 - 2,000 MOQ: 10 Kilometers

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

HTGD

Model Number:

GYTA

Contact Supplier Request Quote Chat Now

Jiangsu Hengtong Optic-Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name HTGD

Model Number GYTA

Product Description

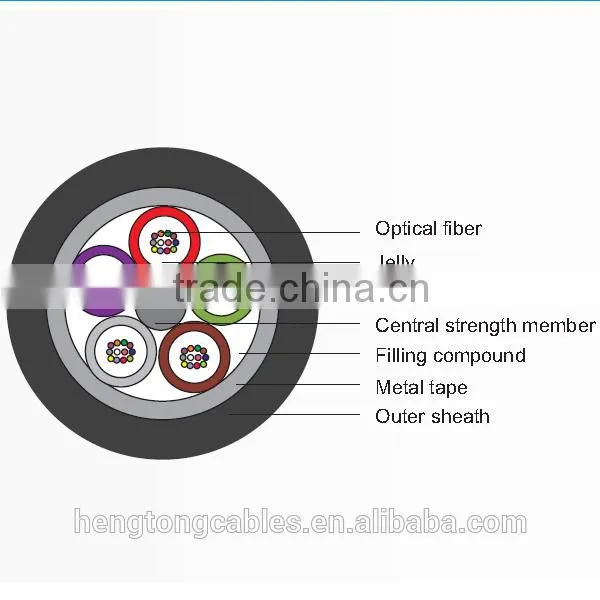

Cable details:

Fiber: Up to 288, Gel-filled
Fiber Types: Single-mode and Multimode
Cable Constructions: S-Z Stranded loose tube
Strength Member:Steel wire
Sheath Options: Single PE Sheath
Armored:Aluminum tape
Operating Temperature: -40℃ - 70℃
Compliances:In Accordance with IEC,ITU and EIA stendards

Features and Applications:

◆Excellent mechanical and environmental performance ◆Good water resistance performance

◆Easy to install

◆Gel-filled Loose tube protect the fiber well

◆Armored with anti-moisture aluminum tape ◆Applications：Duct and Non-Self Supporting Aerial

Specification

Fiber Transmission Performance

Cabled Optical fiber （dB/km）	62.5μm (850nm/1300nm)	50μm (850nm/1300nm)	G.652 (1310nm / 550nm)	G.655 (1550nm / 625nm)
Max attenuation	3.5/1.5	3.5/1.5	0.36/0.22	0.22/0.26
Typical value	3.5/1.5	3.0/1.0	0.35/0.21	0.21/0.24

Technical Specification

Cable type	Maximum cores	Tensile Strength		Crush Resistance		Minimum bend radius
Cable type	Maximum cores	Short term	Long term	Short term	Long term	Dynamic	Static
GYTA	30	1500	600	1000	300	20D	10D
GYTA	36	1500	600	1000	300	20D	10D
GYTA	60	1500	600	1000	300	20D	10D
GYTA	72	1500	600	1000	300	20D	10D
GYTA	96	1500	600	1000	300	20D	10D
GYTA	120	1500	600	1000	300	20D	10D
GYTA	144	1500	600	1000	300	20D	10D
GYTA	288	1500	600	1000	300	20D	10D

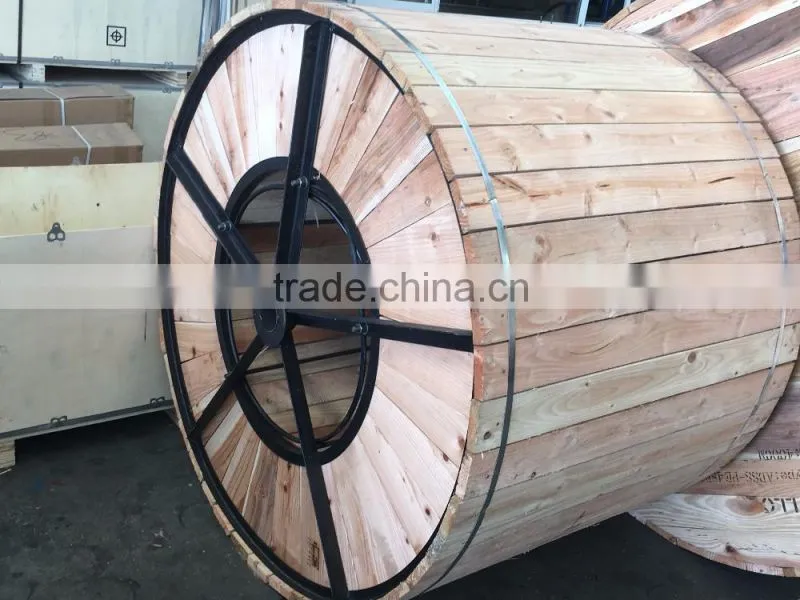

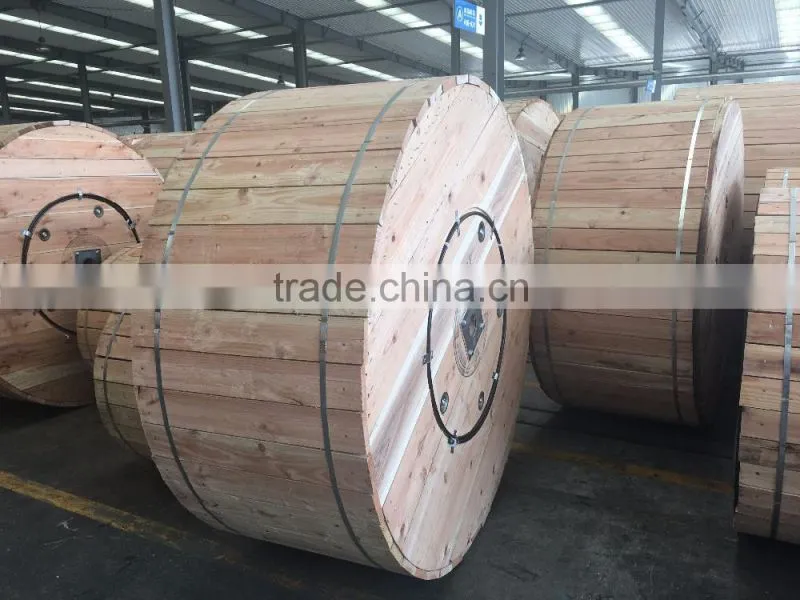

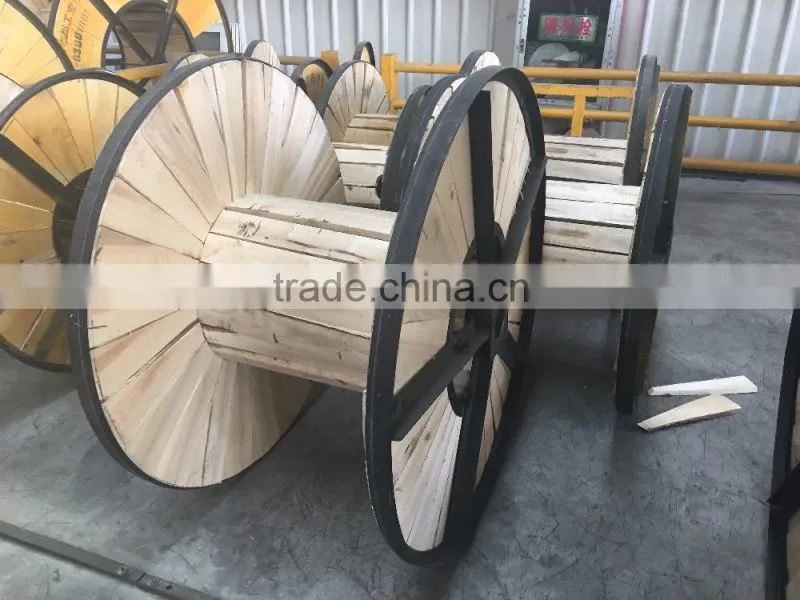

Packing

About us

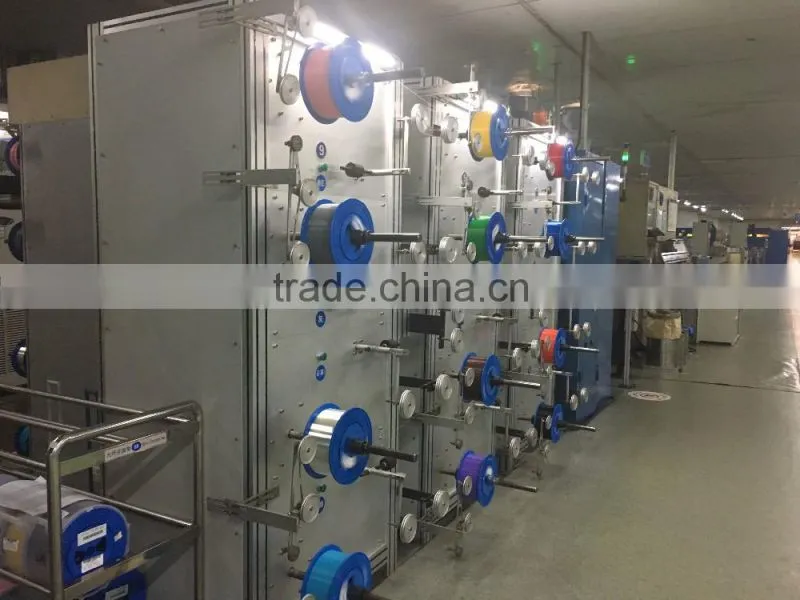

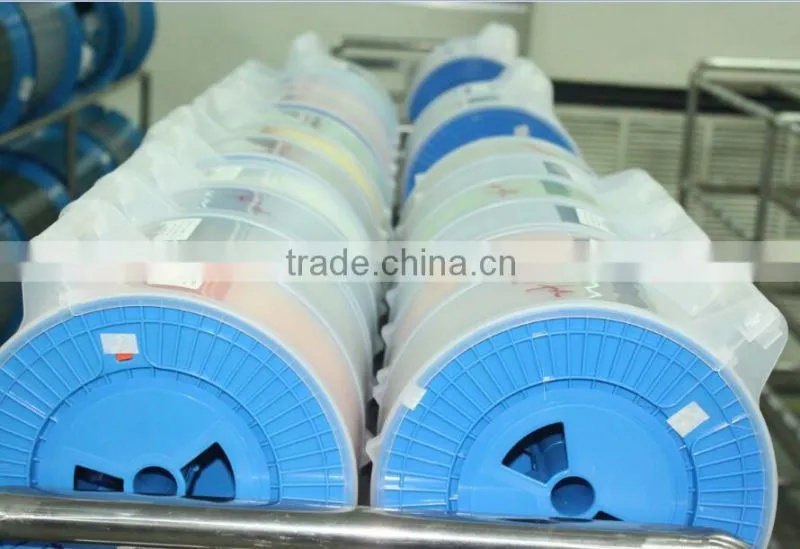

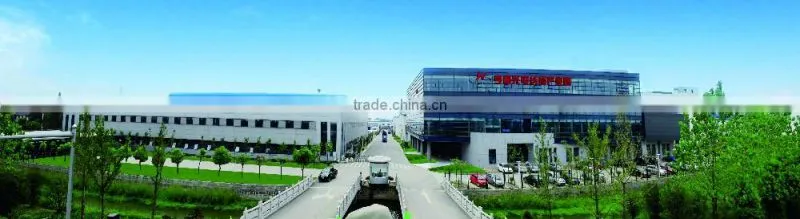

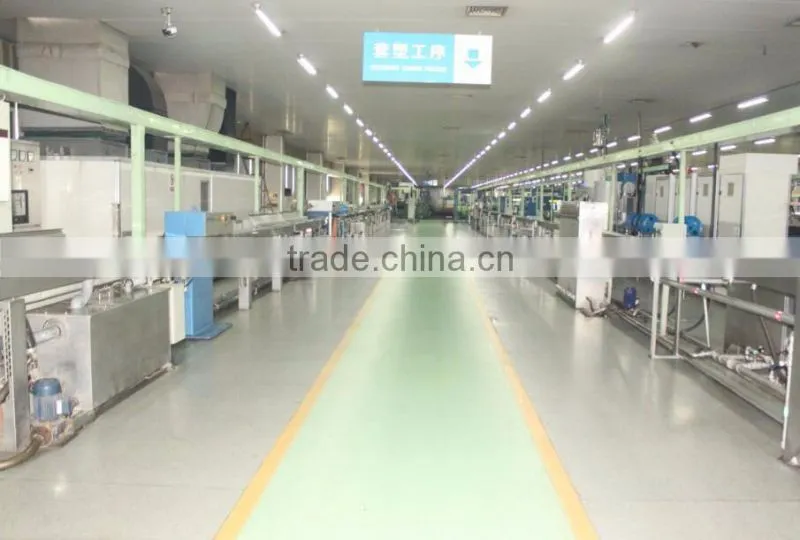

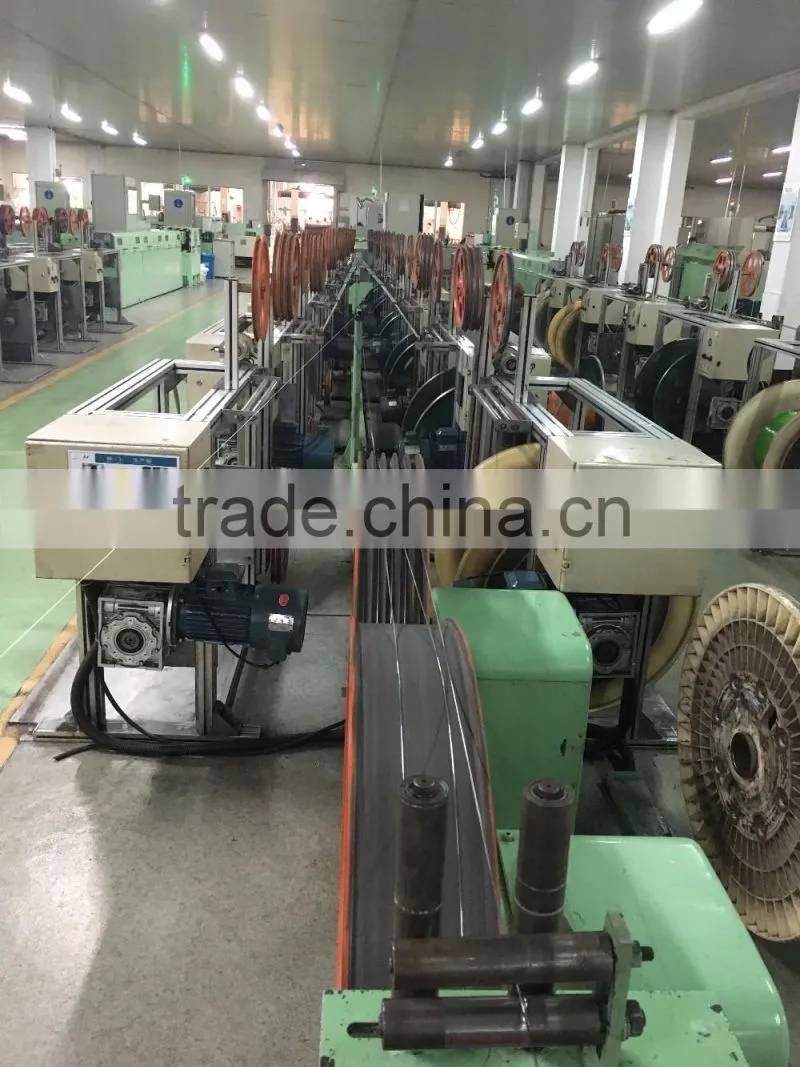

Hengtong Optic-Electric Co.,Ltd. with the acreage of 1000 thousand square meters and 1200 staffs, is the core member of China Hengtong Group and state-level High-Tech enterprise of China. It is specialized in researching and producing fiber, optical fiber cable preform, optical device and optical input equipment. In 2015, the sales volume of optical fiber cable is 20 million core km, sharing about 18% of domestic market. The sales volume of products has been No 1 in China for several years. At present, Hengtong has holding 38 subsidiary companies and 2 listed companies. We built more than 35 international agencies in Europe area, Middle East &North Africa, Asia-Pacific and America area; Over 100 international sellers.
