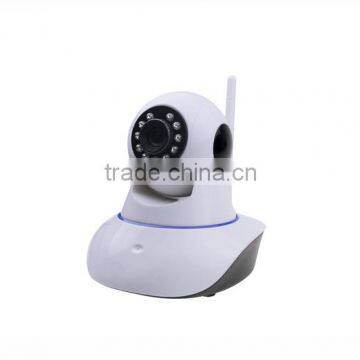

Network Yoosee Wifi IP Camera With Email Alert Support Android/ISO View

Model No. :U2LA

Feature

Features

P2P ,ONE SETTING WIFI

System

OS

Embedded Linux OS

system security

Three level user authority management

online users

support multiple online visitors simultaneously

DDNS

Free DDNS

Control protocol

ONVIF 2.4protocol, high interoperability

Processor

Hisilicon processor,built-in ARM926 Max. 440MHz and a high-speed video co-processor.

Reset

Long press for 15 seconds to restore back to factory settings

Collection

Image sensor

1/4inch 720p Progressive scan CMOS sensor

CMOS

support AWB, AGC, BLC

sensor size

3.84mm×2.16mm

SNR

≥39dB

Minimum illumination

0.8Lux/F1.4(colourful model ),0.3Lux/F1.(B&W mode)

Lens/viewing angle

3.6mmF1.4/56.14

Night vision

Dual IR-CUT filter auto switch, 9pcs 850nm 5mm LED,10m IR distance

IR control

IR turned on: night vision view enabled, infrared Ray, ICR auto detect.

 IR turned off: night vision disabled, infrared ray off, ICR stay in day view mode.

Video

Compression Format

H.264 Main Profile/H.264 Baseline Profile/MJPEG/JPEG Baseline

Video coding process

Multi-stream:720P/24fps+VGA/30fps+QVGA/30fps+720P 1fsJPEG snapshot

Resolution

720p/VGA/QVGA

Bit Rate

CBR/VBR, output bit rate range:128~4096kbps

Frame rate

25fps

Picture Adjustment

Contrast, brightness, saturation, chroma are adjustable.

Audio

Input

Built in -48dB Microphone

Output

Built in speaker(8Ω1W)

Sampling frequency / width

8KHz/16bit

Compression format

ADPCM/32kbps

Network

Interface

10Base-T / 100Base-TX, RJ45 connector

Network Protocol

TCP/IP,HTTP,TCP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPnP,RTSP,P2P,ONVIF etc.

WIFI

WiFi802.11b/g/n

Antenna

3dBi antenna,stronger signal, more stable

Wireless network security

 one key setup WiFi, do not need network cable .

storage

Storage mode

Local storage / client storage

card

support  32G TF card .

Interface

Micro SD

Pan-Tilt

P/T

Pan:355,Tilt:90

Preset Postion

support up to 15 preset postions

Limit method

Software limit position, more accurate preset positions,lower Pan Tilt failure rate

Alarm

Alarm action

Sensors: ASK encoding, millions of encoding library, can support most sensor's factories

which in provided in VStarcam software list, like door sensor, pir sensor, smoke detector,

gas detector and etc.

Eye4 APP ASK module's compatibility

RF: 433MHz, transmit distance>80meters.

Sensor definition: sensor's category and type

Physical index

Rated Voltage

DC5/2A±0.3V

Power comsumption

Rated power:3.0w(IR ON)

Working environment

Working Temperature:-20-70,Working Humidity 90%

Weight

Gross Weight :755g (Note: in kind prevail)

Housing material

ABS plastics

Camera size

195x140x130mm (L×W×H)

Installation

Wall mounting, ceiling mounting

Only for reference
