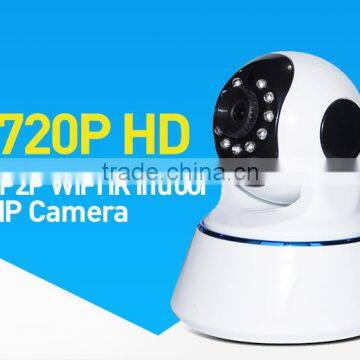

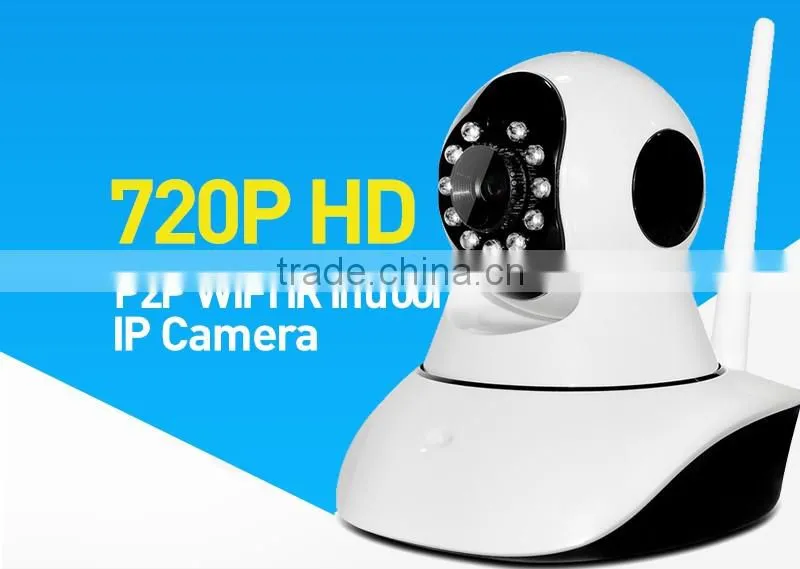

Help CenterXmeye 2 Way Audio P2p Mini Dome Wifi Ip Camera,wireless Camera,wireless Security Camera
Related Products
-
BEST-SELLING WIFI 1080P P2P Network Indoor Wifi ip Camera With Iphone AppUS$ 20 - 30MOQ: 10 Pieces -
Two Way Audio 720P Yoosee Wifi IP Camera With Email Alert Support Android/ISO ViewUS$ 20 - 30MOQ: 10 Pieces
-
2016 New 960P Wireless Hidden Camera/invisable Camera/Lamp CameraUS$ 20 - 30MOQ: 10 Pieces
-
Mini Wifi Cctv Cameras/wireless IP Security CamerasUS$ 20 - 30MOQ: 10 Pieces
-
720p/960P/1080P Yoosee 2 Way Audio Home Security CamerasUS$ 20 - 30MOQ: 10 Pieces

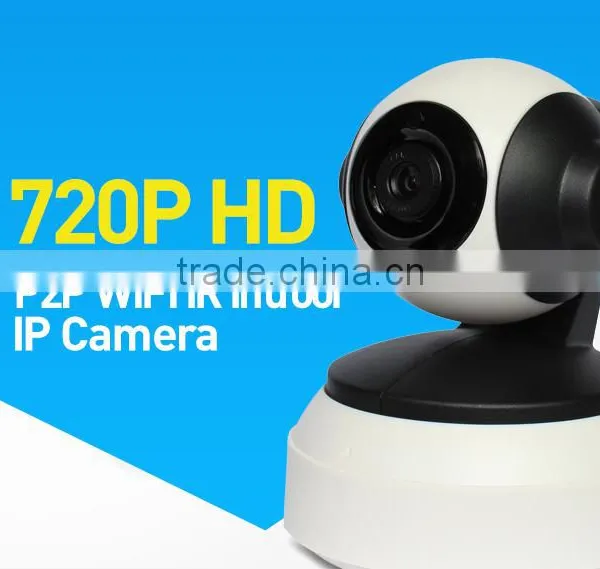

HD image quality 720P,UP to 1280*720;
Support Cloud,P2P,WIFI ;
Motion detection alert via email or upload image to FTP;
Plug&Play,simple and quick to setup,friendly user interface;
Combine all XMeye security camera system
Specification
Model No. :XQ60 | ||
Feature |
Features |
P2P ,ONE SETTING WIFI |
System |
OS |
Embedded Linux OS |
system security |
Three level user authority management |
|
online users |
support multiple online visitors simultaneously |
|
DDNS |
Free DDNS |
|
Control protocol |
ONVIF 2.4protocol, high interoperability |
|
Processor |
Hisilicon processor,built-in ARM926 Max. 440MHz and a high-speed video co-processor. |
|
Reset |
Long press for 15 seconds to restore back to factory settings |
|
Collection |
Image sensor |
1/4inch 720p Progressive scan CMOS sensor |
CMOS |
support AWB, AGC, BLC |
|
sensor size |
3.84mm×2.16mm |
|
SNR |
≥39dB |
|
Minimum illumination |
0.8Lux/F1.4(colourful model ),0.3Lux/F1.(B&W mode) |
|
Lens/viewing angle |
3.6mmF1.4/56.14 |
|
Night vision |
Dual IR-CUT filter auto switch, 9pcs 850nm 5mm LED,10m IR distance |
|
IR control |
IR turned on: night vision view enabled, infrared Ray, ICR auto detect. IR turned off: night vision disabled, infrared ray off, ICR stay in day view mode. |
|
Video |
Compression Format |
H.264 Main Profile/H.264 Baseline Profile/MJPEG/JPEG Baseline |
Video coding process |
Multi-stream:720P/24fps+VGA/30fps+QVGA/30fps+720P 1fsJPEG snapshot |
|
Resolution |
720p/VGA/QVGA |
|
Bit Rate |
CBR/VBR, output bit rate range:128~4096kbps |
|
Frame rate |
25fps |
|
Picture Adjustment |
Contrast, brightness, saturation, chroma are adjustable. |
|

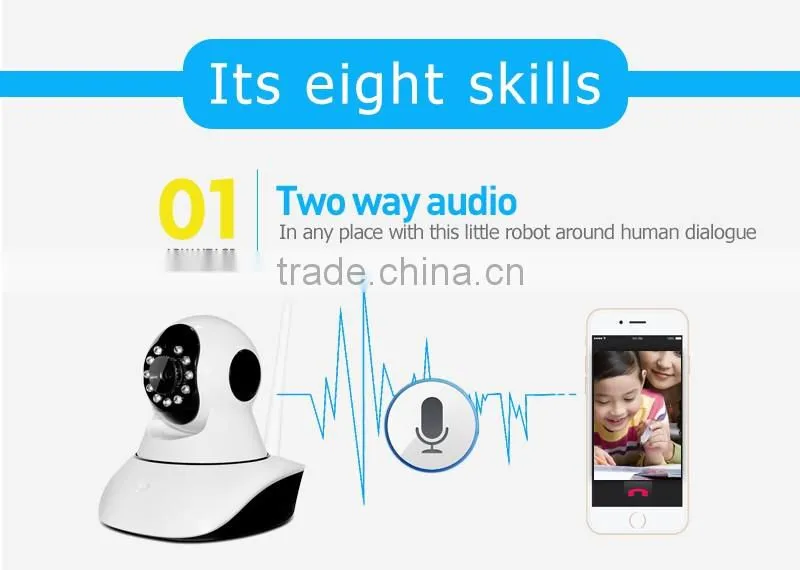

Audio |
Input |
Built in -48dB Microphone |
Output |
Built in speaker(8Ω1W) |
|
Sampling frequency / width |
8KHz/16bit |
|
Compression format |
ADPCM/32kbps |
|
Network |
Interface |
10Base-T / 100Base-TX, RJ45 connector |
Network Protocol |
TCP/IP,HTTP,TCP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPnP,RTSP,P2P,ONVIF etc. |
|
WIFI |
WiFi802.11b/g/n |
|
Antenna |
3dBi antenna,stronger signal, more stable |
|
Wireless network security |
one key setup WiFi, do not need network cable . |
|
storage |
Storage mode |
Local storage / client storage |
card |

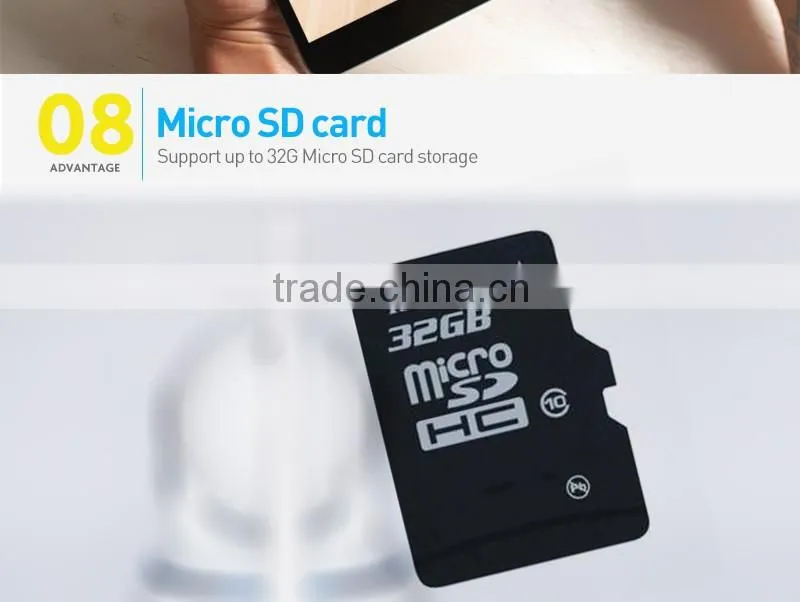

support 32G TF card . |
|
Interface |
Micro SD |
|

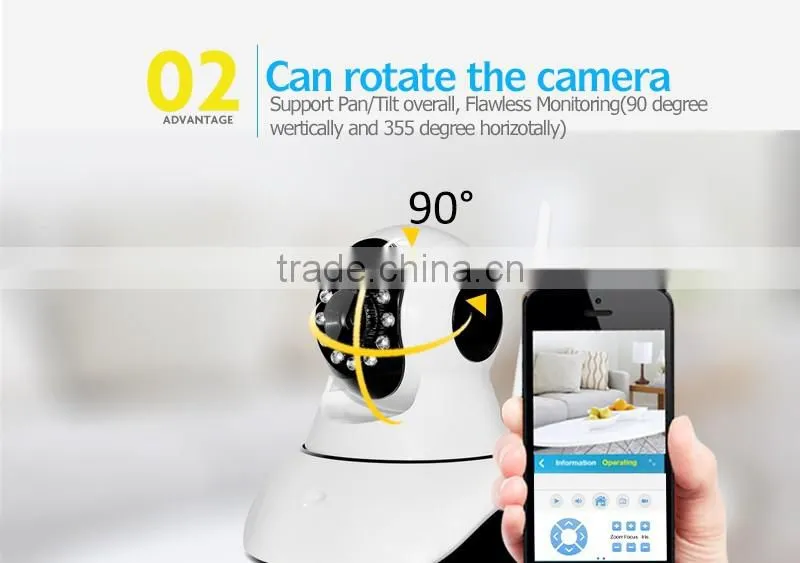

Pan-Tilt |
P/T |
Pan:355,Tilt:90 |
Preset Postion |
support up to 15 preset postions |
|
Limit method |
Software limit position, more accurate preset positions,lower Pan Tilt failure rate |
|
Alarm |
Alarm action |
Sensors: ASK encoding, millions of encoding library, can support most sensor's factories which in provided in VStarcam software list, like door sensor, pir sensor, smoke detector, gas detector and etc. |
Eye4 APP ASK module's compatibility | ||
RF: 433MHz, transmit distance>80meters. | ||
Sensor definition: sensor's category and type | ||
Physical index |
Rated Voltage |
DC5/2A±0.3V |
Power comsumption |
Rated power:3.0w(IR ON) |
|
Working environment |
Working Temperature:-20-70,Working Humidity 90% |
|
Weight |
Gross Weight :755g (Note: in kind prevail) |
|
Housing material |
ABS plastics |
|
Camera size |
195x140x130mm (L×W×H) |
|
Installation |
Wall mounting, ceiling mounting |
|
|
Only for reference |
|
