Specifications
*DSE9155 30V2A generator battery charger*30V2A power
*Best quality
*In stock
*Best services

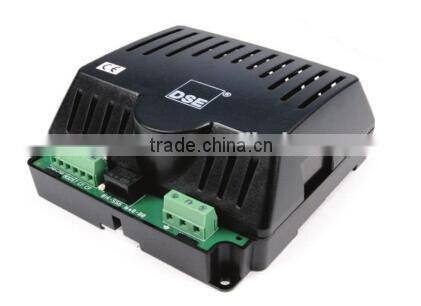

DSE9155 30V2A generator battery charger
Features
·Universal Output Range: 0V~.
·Universal Input Range :AC85~265V
·Protection: Overload /Over voltage/Over temperature/Short circuit
·Efficiency75%(Min)
·LED power on indication
·Built-in EMI filter
·100% full load burn-in test 2H
·MTBF>50,000H
·Safety standards:GB4943,UL60950,EN60950
·EMC standards:GB9254,EN55022 A
·1 year warranty
·Cooling:free air convention
Specifications
INPUT SPECIFICATIONS: OUTPUT SPECIFICATIONS:
AC Input voltage range…….AC85~265V Rise time……...............…….……..1S typ.@115VDC
Hold up time…….…......…….……..20mS typ.@115VDC
Frequency……………..……….47~ 63HZ Overload protection.….105% - 150% rated power,automatic recovery
Inrush Current……..…….20A Max.@115VAC Over-voltage protection..……105% - 150% of the rated voltage
40A Max.@264VAC
Isolation……….….Input to output=4242VDC
Leakage Current…………………………….3.5mA max
ENVIRONMENTAL CHARACTERISTICS: MECHANICAL OUTLINE :
Operating temp&humidity … -20°C~+70°C, Dimensions..............................136×140×63mm
20%~93%RH(non condensing) Weight....................................... 1.0KG
Storage temp&humidity ……–40°C~+85°C,
10%~95%RH
Our products are widely used in many industries,such as LED lighting,CCTV,postal service,communications industry,power industry,semiconductor refrigeration and heating industry,medical equipment industry,monitor system industry,automatic control industry.
We can produce different AC/DC series of switching power supply.All of our products have been approved by CE,ROHS and other relevant certificate.If some customized demand and model can`t be found in our standard product lines,our R&D engineers can design and provide you samples in time as per your requirement.
Owing to high quality and good reputation,our products have been reached all over the world.Such as North America,South America,Australia,Europe,Southeast Asia.
Indoor Power Supply
Protection:short circuit protection,overload protection,over voltage protection,over temperature protection.
DC output voltage can be changed from 0-5V,0-12V,0-24V……..
High effiency,real long life,High Realiability.
100% high temperature full load burn-in test.
MTBF>50,000hours.
Green glass fiber PCB.
LED indicator for power on.
Certification:CE ROHS.
