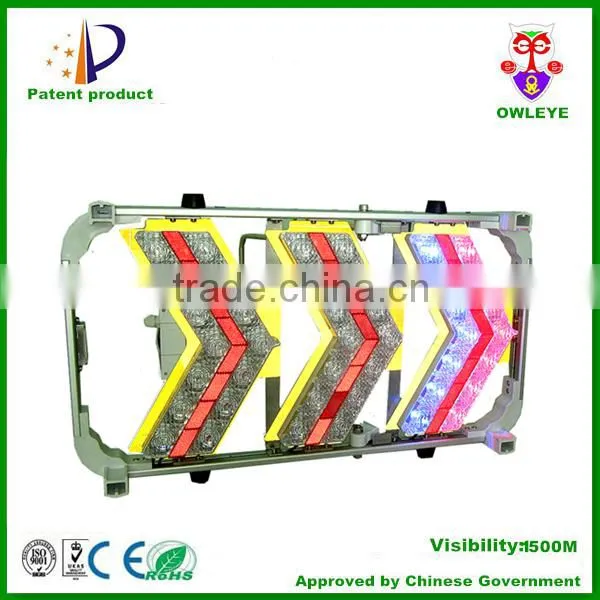

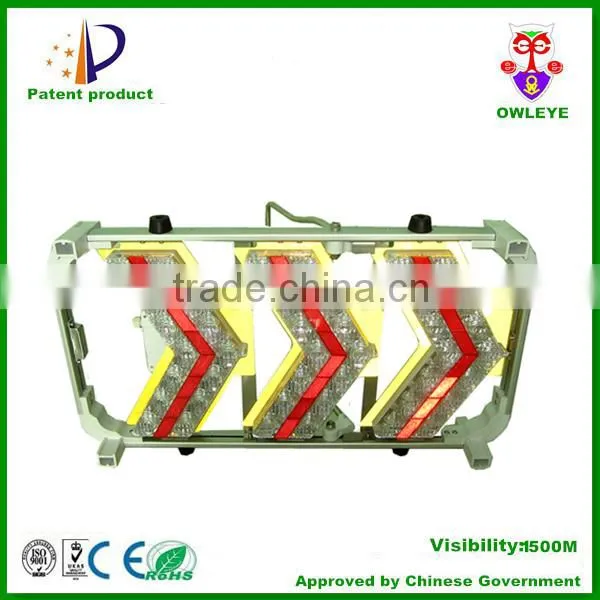

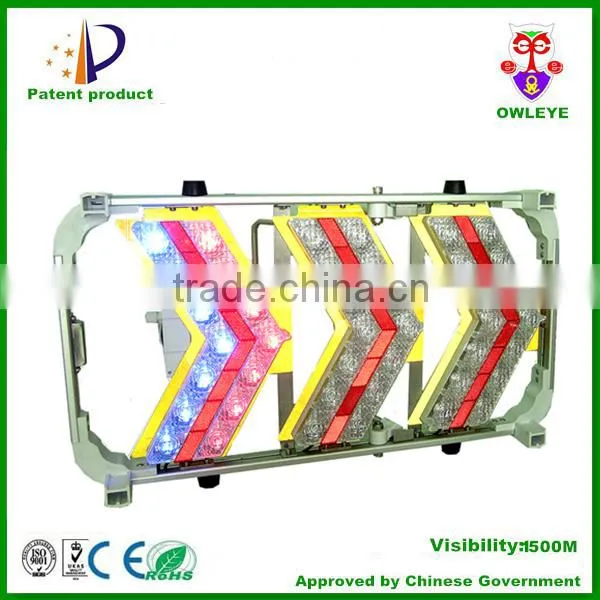

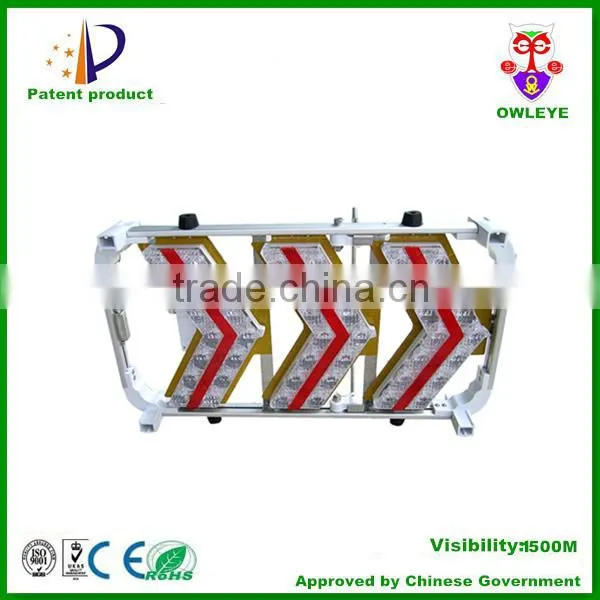

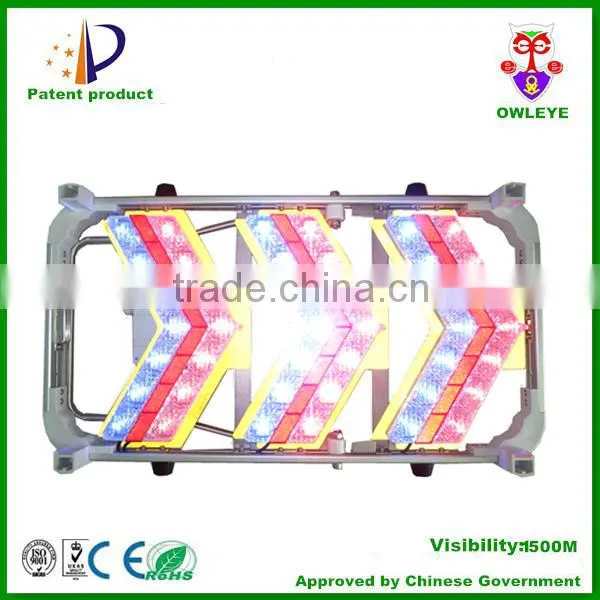

Construction Induction Portable Solar Led Sign

Specification of the LED Arrow Sign Board

Item Name  LED Arrow Sign board

Product description

High quality and super bright LED and reflector as the light source, LEDs emit light actively, reflector reflects light passively, so it can supply good visual effect no matter in daytime or at night. Especially in the rainy or foggy days and so on of the bad weather conditions, it shows strong light penetration at long distance.

Item Character:

1.Using imported high brightness LED, small working current, stable performance, long lifetime

2.The shell is made of ABS material injection molding, anti aging, good Seismic performance

3.The upper cover is made of special PC material injection molding, high mechanical strength,

good wearresistance, won’t change color

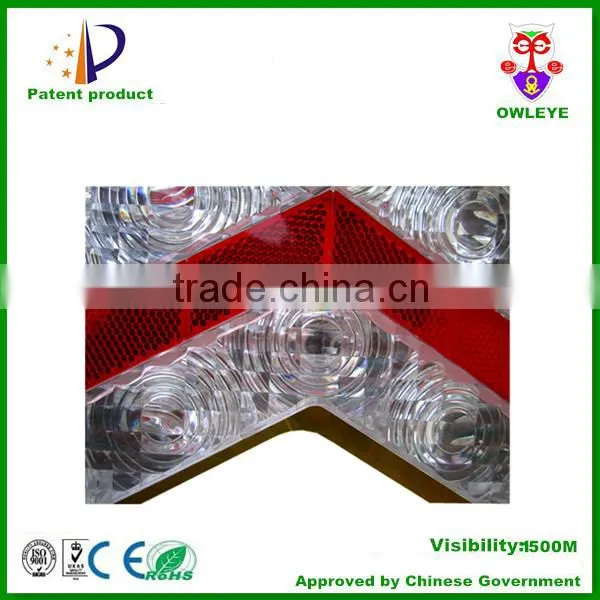

4.The upper cover with special optical texture and LED reflector cap with special design,

make it achieve the best brightness effect

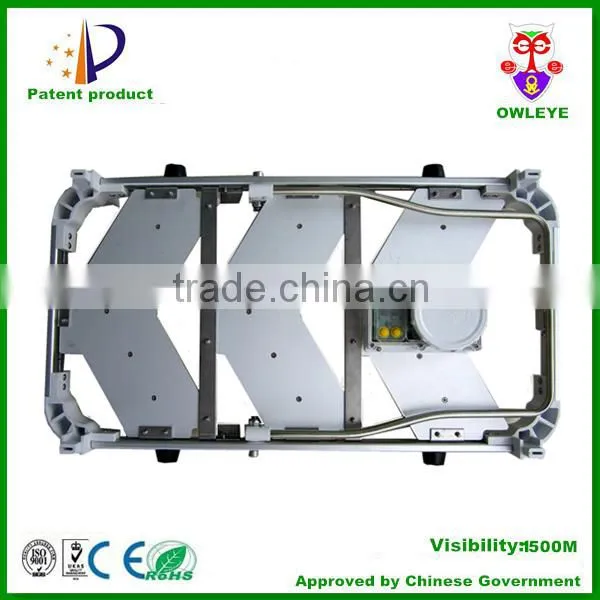

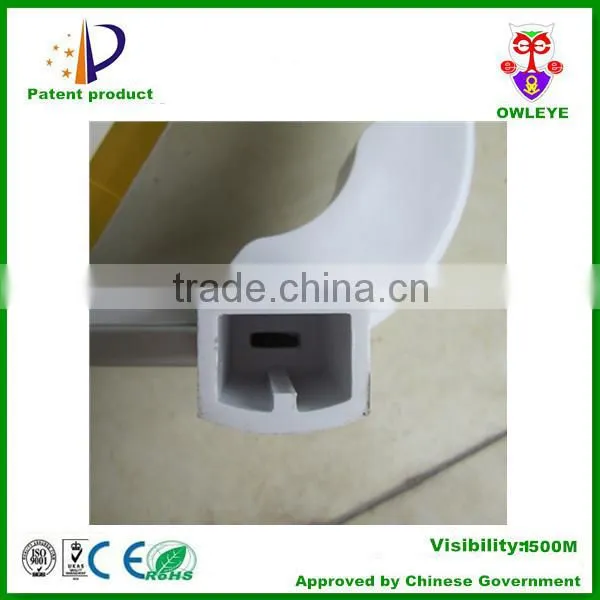

5.Holder material: special aluminum raw material; Screw material: Stainless steel

6.The light emitting pixel by 1 F10 LED lamp, each LED lamp be supplied power independently

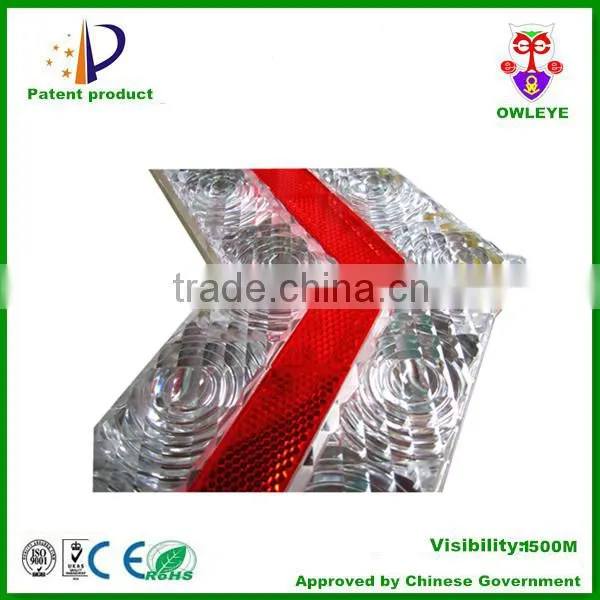

 7.Each LED lamp has an electroplated reflective cup around it, make its visible distance more longer

 Internal circuit be controlled by MCU,LED be supplied power by constant voltage,

friendly human-computer interaction, can achieve remote control and synchronization

function according to the user needs

 8.Adopting 2pcs high energy efficiency D type battery

9.Water-proof: IP66

10.Using environment:-20°— +60°

Specification parameter

Power supply:  2pcs 1.5V /D type battery

Visual angle more than 120°

Visible distance more than 500m

Light source:High bright LED

LED quantity:42pcs

Application

Led arrow sign is widely used on the crossroad, bridges, road curves, highway, police cars, road project check and other dangerous area with safety hazard. Warning the drivers and pedestrians to avoid the traffic accidents. Its special and beautiful appearance design makes it more bright and easy to install

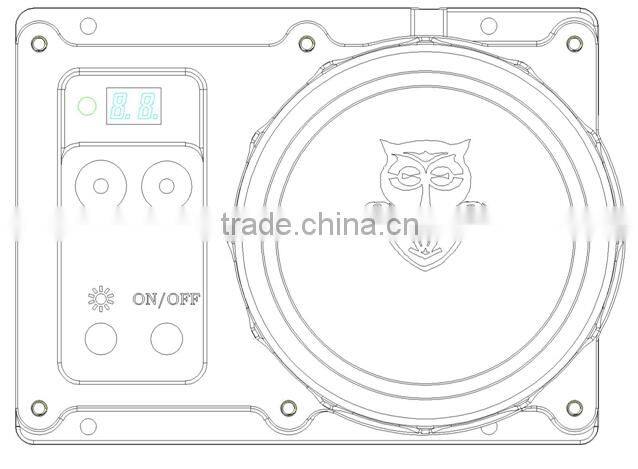

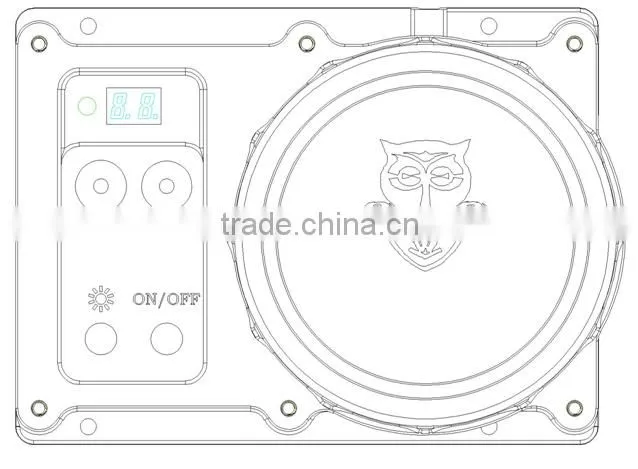

Function description

1.MODE(Touch button softly),Working mode.

   C mode:Separate self running mode

   A mode:Synchronous host mode (Expected)

   D mode:Synchronous slave mode ( Expected)

2:UP(Touch button softly).Function Selection.

   C mode.(Working time calculated by the full battery capacity 7000MAH)

C1: Running light; 46cycles/Min( Working time more than 25hours)

C2: Flashing light; 70times/Min( Working time more than 40hours)

C3: Running+Flashing light; 44cycles/Min( Working time more than 40hours)

C4: Red and blue alternating flash; 36times/Min( Working time more than 40hours)

3.Sun mark(Self lock button),for choosing Auto-light control

4.ON/OFF(Self lock button)

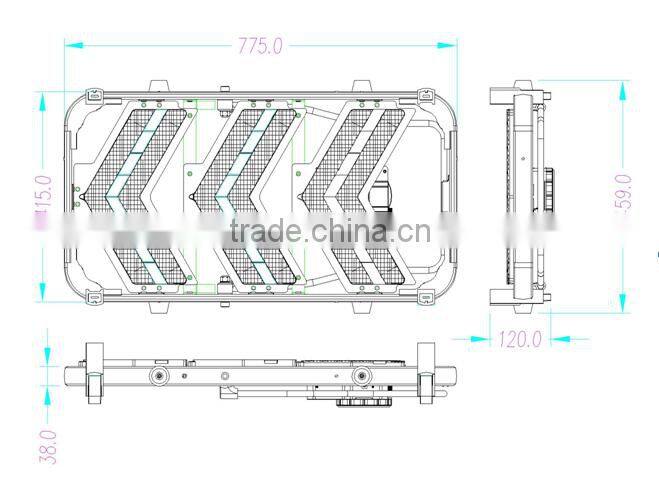

Product size
