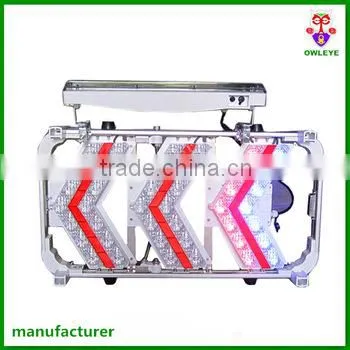

lighted arrow signs/illuminated traffic signs/arrow board led lamp
Production description of lighted arrow signs
Super bright LED and high reflective lens used in LED arrow sign so that the viewable distance is far .Specially in raining days .The driver can see the LED arrow sign at 1000 meters far.
Product features of illuminated traffic signs :
1.Imported high brightness LED, working current is small, stable performance and long service life. 2.ABS material for shell base, anti-aging and good seismic performance.
3.Special PC material for the cover, high mechanical strength, resistance to wear, anti-aging
4.Special optical texture design on the cover, with a specially designed LED light reflective cup can achieve the best lighting effect
5.aluminum bracket with stainless screw .To make sure the product not rust
6.LED diameter is 10 mm. Each LED is supplied power independently.
7.Each LED fit together electroplating reflective cup. So that improve the viewable distance
8.he MCU control circuit, constant voltage LED power supply. It can customize according to user requirements of remote control and synchronization function.
9.2 type of power supply .Fist is D size battery .Second is solar battery .
10.waterproof grade IP66.
11.Using the environment -20°— +60°.
Specification of arrow board led lamp :
1.Power supply: 1.5 V 2 D battery or special solar power battery.
2.Visual Angle≥ 120°
3.viewable distance ≥ 500m
4.light source:Super bright LED with reflective cup
5.LED quantity :42pcs
LED unit Specification :
|
red |
yellow |
white |
green |
blue |
Diameter |
10mm |
10mm |
10mm |
10mm |
10mm |
Angle |
15° |
15° |
15° |
15° |
15° |
Luminous intensity |
8000mcd-15000mcd |
8000mcd-15000mcd |
8000mcd-15000mcd |
20000mcd-25000mcd |
6000mcd-10000mcd |
product usage:
Used for highway intersection, highways, Bridges, corner, police cars, such as dangerous sections, prompt attention of driver or pedestrian, to avoid traffic accidents and accidents.
Function
Application step: ON/OFF——MODE—UP
ON/OFF button:power switch .
button:light control switch .Press button the LED arrow sign will be light control on/off.
It will light off automatically when bright surroundings and light on automatically when dark surroundings.
MODE button: Work independently or simultaneously
Press “MODE” it show C:Work independently
Press “MODE” again .It show OF: Not working .
UP button: changing light mode .
1.C mode.It means that the LED arrow sign working independently .So press UP button can change the lighting mode
Press UP first time .C1:Three arrow light on one by one ;46Tims/Min(working time≥25 hours)/(Calculate the working time depend on full power 7000MAH of battery)
Press UP second time C2:Three arrow fast flash 2times ;70times/Min(working time≥40hours)/ (Calculate the working time depend on full power 7000MAH of battery
Press UP third time C3:Each arrow fast flash 2 times and light on one by one ;44times/Min (Calculate the working time depend on full power 7000MAH of battery)
Press UP fourth C4:red and blue light on alternately;36times/Min
(Calculate the working time depend on full power 7000MAH of battery)
2.Nixie tube comment of Display code
1:Nixie tube display code “LO” means low battery shutdown
2:Nixie tube display code “SU” means that you have choose light control ON/OFF for LED arrow sign
3:Nixie tube display code “OF” means control off .
Remote controller using introduction
1:The top button same function as led arrow sign “UP” button ;
Base buttonsame function as LED arrow sign “ MODE” button .
remote control distance 100 meters.
Note:
1:Don’t use solar battery and D size battery at the same time .Take out 2pcs D size battery when you connect solar battery with led arrow sign
2:Don’t put the LED arrow sign in water
3:Please stay away from fire or other corrosive liquid.
One set/carton

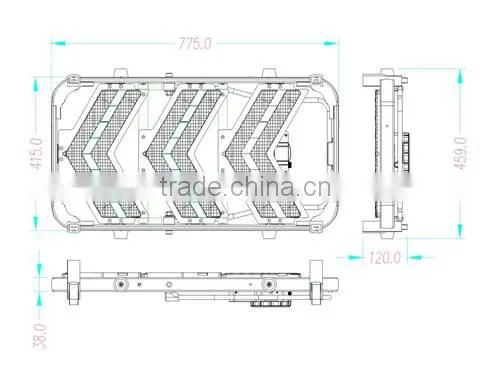

Product size :
1.Accptable large or small quantity.
2.OEM/ODM acceptable.
3.Professional manufacturer which provide our best service and reasonable factory price.
4.Sample charge: regarding to your order
5.Delivery time? within10days for small order, 3-5 days for samples.
6. Payment terms?
1)T/T 30% advance +70% balance before shipping
(When total amount more than10,000USD)
2)Western Union
3)Paypal
7. One Year Warranty: Free maintenance during one year warranty period if any problems
(except man-made or natural factors)
1.Our Business type: Manufacturer with more than ten years experience.
2.Main field: Solar road traffic safety products
3.Hot sale products: Road stud, Aluminum road stud, Plastic reflective road marker, Solar road stud, Embedded solar road marker light, Solar warning light, Solar traffic sign, road reflector, etc.
4.Works with good service for customers as manufacturer and supplier in China, our solar road safety items are widely exported to the world.
Hot sale to global market: South Africa, America, Canada, Korea, Saudi Arabia, Europe, etc.
1.Can I get samples from you for testing quality?
--- Yes, samples can be sent to you for testing quality.(Sample fee: based on the products)
2. What’s delivery time if we place order ?
--- It is depend on order quantities.
Usually ,we can delivery goods within 10 days for small order.
For more quantity order ,Let’s confirm when you place order .
3.Could you help us print logo on the product ?
--- Yes , we can print your logo on products .Logo must be 1-2 color.
There are 3 methods ,Color printing (expensive ),Laser printing and silk printing .
