Help CenterBZCDF200DF Reverse Circulation Drilling Rig
Related Products
-
BZCDF150SDF Reverse Circulation Drilling RigNegotiableMOQ: 1 Set -
BZLD300 Crawler Rock Drilling RigNegotiableMOQ: 1 Set
-
CYT-400 Engineering and Water-well Drilling RigNegotiableMOQ: 1 Set
-
CYTL-300A Engineering and Water-well Drilling RigNegotiableMOQ: 1 Set
-
BZCT600 Tralier Mounted Drilling RigNegotiableMOQ: 1 Set
Mail Feature

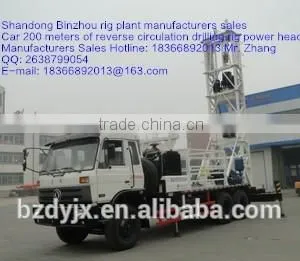

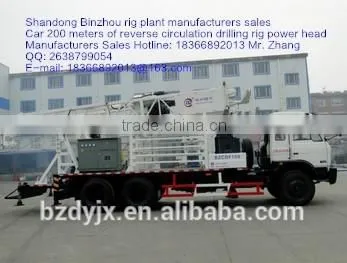

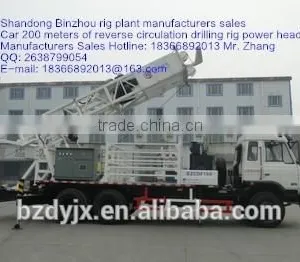

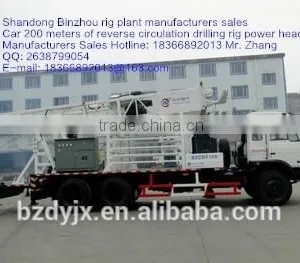

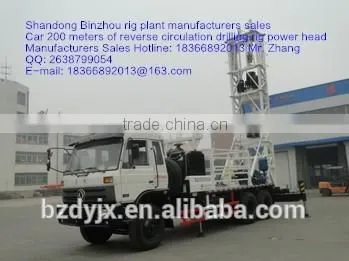

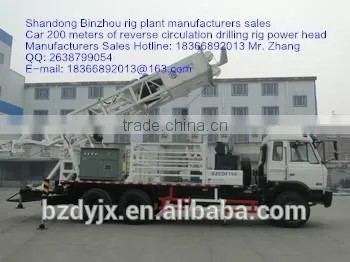

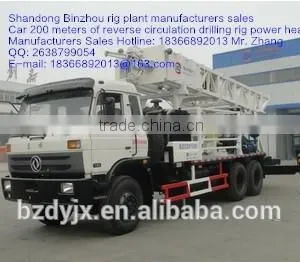

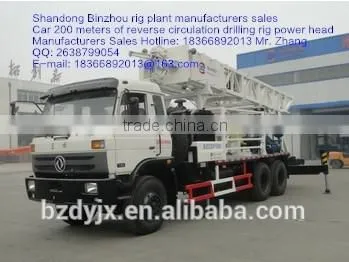

1, BZCDF200DF Truck mounted reverse circulation drilling rig is our self-dependent innovation product. It is top head drive drilling rig. It adopts famous brand TRUCK 6X4 special truck chassis and the generator, hydraulic system, electronic control system, 6BS gravel pump, drill tower are on the chassis;
2,The motive power comes from the truck engine, with 120KW generator and external power system. So the rig can work with truck engine or external power and is a electromechanical,hydraulic,pneumatic controlled rig ;
3, The rig uses mud as the flushing liquor with 6BS gravel pump to drill; the equipped CB—E532vacuum pump system provides water for the gravel pump.
4,The rig equips with hydraulic system, hydraulic tower, hydraulic supporting legs. The drill pipes is screw thread joint, with special unloading device, easy to change the drill pipe.
5, The appearance of rig is pretty; it has a high efficiency because of having larger torque; it is suitable for water well engineering, construction, building, bridge foundation, port, dam and so on; it is popular with the domestic and foreign clients. BASIC TECHNICAL: Technical parameter
Drill depth(m) 200
Drill diameter(mm) 500-2500
Top head speed(r/min) 22
Top head torque(kN.m) 7.5
Total line pull force of minor winch(t) 18
Tower hight(mm) 6980
Bearing (t) 20
Drill pipe(mm) 168×8×2000
6BS gravel pump theoretical flow(L/min) 560
Revolving speed(r/min) 750
Input power(kw) 55 CB—E532
vacuum pump Max-displacement(L/min) 3400
Revolving speed(r/min) 1450
Input power((kw) 7.5
Engine Diesel engine model YC6J180-33
Rated power(KW) 132 speed(r/min) 2500
torque 590N.m/1400-1700rpm
Drive form of chassis 6×4
Generator set Rated power(kW) 120
Rated voltage (V) 400
frequency (Hz) 50
Walking speed(km/h) 75
Transport dimension (L×W×H)(mm) 10147*2480*3926
Working dimension (L×W×H)(mm) 9954*3690*8852
