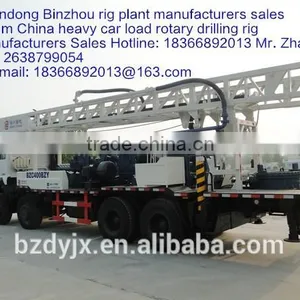

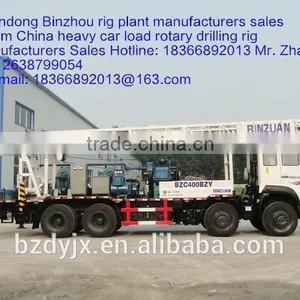

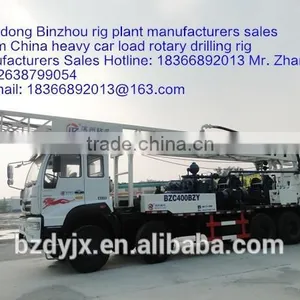

Help CenterBZC400BZY Truck Mounted Drilling Rig
Related Products
Main features
1,BZC400BZY truck mounted drilling rig is designed by our engineers; it is adopt truck mounted and is a rotary drilling rig.
2,The truck chassis is adopt the 8×4 special chassis of brand SINOTRUK, the main transmit, transmission power, gearbox, sets of windlass, mud pump, sewage pump,mast are setup on the chassis.
3,This rig is a rotary drilling rig with directional circulation, which is equipped with BW850/2A mud pump. It adopts the slurry as the washing fluid, it can drill on clay, sand and rock if it is equipped with a good drilling bit.
4,The power of drilling rig comes from the truck engine; the rig sets up distribute implement and hydraulic system.
5,We can set up the spare electric engine and clutch implement according to client's requirement, so that the rig can work with diesel engine or electric engine.
6,We can set up a generator (15kw) , so that it is convenient to illuminate or work at night. The adding pressure implement is hydraulic, so it has a high efficiency when the rig drill on mud rock and weathering formation through using the adding pressure implement.
7,The master driving of rig is mechanical, the four jacks and mast are hydraulic operated. Distribute box, sewage pump, master driving clutch system are air operated.
8,The appearance of rig is pretty. It has a high efficiency because of having a larger torque of the turntable, it is mainly used for water well, construction, national defense building foundation, geological exploration, geothermic well and other foundation working. It is popular with domestic and foreign clients.
Technical parameter
Drilling depth(M) 400
Drilling diameter(mm) 500
Speed of turntable(r/min) 12.8;22.3;38.5;59.8;102.7;117.6;16.1(reverse)
Torque of turntable(KN.m) 41.4;23.8;13.8;10.6;5.1;4.5;32(reverse)
Single rope lifting capacity of windlass(KN) 45
The capacity of main windlass(KN) 270
Single rope lifting capacity of hydraulic windlass(KN) 40
The capacity of hydraulic windlass(KN) 160
The lifting capacity of hook(KN) 270
Bearing capacity of mast (KN) 270
The height of mast (mm) 12043
Bearing capacity (t) 30
Pipe Kelly (mm) 108×108×7500

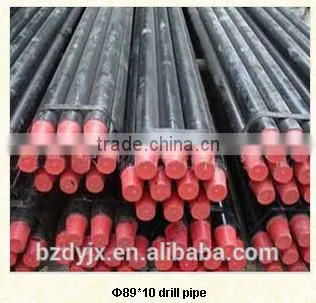

Assistant pipe (mm) 89×10×5500
Hydraulic pump Model CBQL-F550/F532-CFHL
Pump delivery (ml/r) 50/32
Rated speed (r/min) 2000
Rated pressure(MPa) 20
BW850/2A plunger pump Diameter of cylinder (mm) 150
Stroke of piston (mm) 180
Theory of flow (L / min) 600 850
Rated pressure (Mpa) 3 2
Pounding times (min-1) 58 82
Diameter of suction tube (mm) 127
Diameter of drain pipe (mm) 64
Input speed (r / min) 470
Input power (kw) 40
Overall dimensions (mm) 2000*1030*1400
Weight (t) 1.5
Truck chassis Model SINOTRUK Drive form 8×4 Engine Model WD615.92E Rated power(KW) 194
Speed (r/min) 2300
Size (L*W*H)(mm) 11510×2480×2800
Electric generator Model MF Rated power (kw) 15
Rated voltage(v) 400
Rated current(A) 27
Speed (r/min) 1500
Frequency(Hz) 50
Protection level IP21 Insulation Class H The best working gear (or speed) 5th gear(1000-1400r/min) T
he highest speed(Km/h) 70
Weight (kg) 19350
Transport size(L*W*H)(mm) 12386*2480*3837
Working size(L*W*H)(mm) 11123*2480*13618
