Specifications
trailer mounted drilling rigdrill depth 600m
can be pulled by tractor or truck etc
easy to repair, easy to operate
welcome

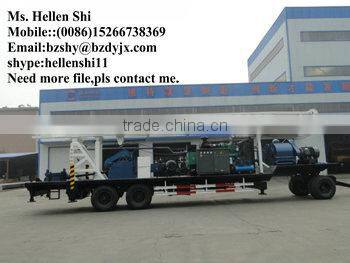

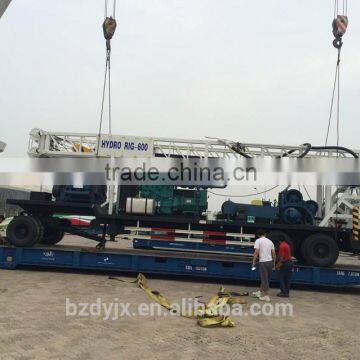

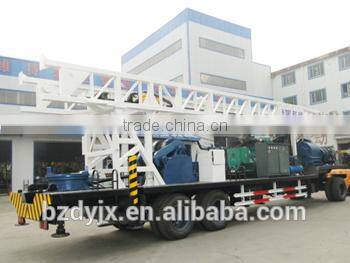

BZT600 drilling rig is a kind of tailer drilling rig, the diesel generator, large displacement piston pump, double-hoist, turntable, drilling tower, auxiliary unloading cylinder and other components are mounted on the chassis. It can be pulled through tractor or truck.
It is equipped 4 hydraulic legs and 2 mechanical legs to balance the rig. After leveling the rig, The mechanical legs can be locked the cylinder using locknut. So, even if the hydraulic cylinder leaks, the chassis is still stable for drilling.
This drilling rig equipped with an auxiliary unloading cylinder, it can be used to push the turntable ratchet, to achieve auxiliary unloading the drill pipe.
The appearance of rig is pretty, it has a high efficiency because of having a larger torque of the turntable, it is mainly used for water well, construction, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular with domestic and foreign clients.
Technical parameter | |||
Drill depth(m) |
600 |
||
Drill diameter(mm) |
500 |
||
turntable hole diameter(mm) |
500 |
||
Turntable speed(r/min) |
38,57,85 |
||
turntable torque in theory |
13.8,9.2,6.2 |
||
main hoist single lifting power(kNm) |
40 |
||
assistant hoist single lifting power(KN) |
30 |
||
efficient hight of tower |
short tower(m) |
12 |
|
long tower(m) |
15 |
||
swivel |
Max-load(T) |
30 |
|
Inner diameter(mm) |
63.5 |
||
kelly(mm) |
Short tower |
108x108x7500 |
|
long tower |
108x108x10500 |
||
Drill rod(mm) |
Short tower |
89×10×5500 |
|
Long tower |
89×10×9000 |
||
Working size(L×W×H mm) |
Short tower |
15100×2480×14170 |
|
Long tower |
15100×2480×17170 |
||
Transporting size(L×W×H mm) |
Short tower |
15100×2480×4100 |
|
Long tower |
16630×2480×4100 |
||
Electric generator |
model |
SCGC-200kW diesel generating set |
|
Rated voltage(V) |
400 |
||
Rated current(A) |
360 |
||
frequency(Hz) |
50 |
||
mud pump |
model |
3NB-130 |
|
specified discharge(L/s) |
8.4-16.6 |
||
rated working pressure(MPa) |
5-10 |
||
Input speed(r/min) |
565 |
||
power |
75kWelectric motor |
||
gear oil pump |
model |
CB-E532F |
|
displacement(ml/r) |
32 |
||
rated working pressure(Mpa) |
20 |
||
High pressure(MPa) |
25 |
||
power |
11kW electric motor |
||
