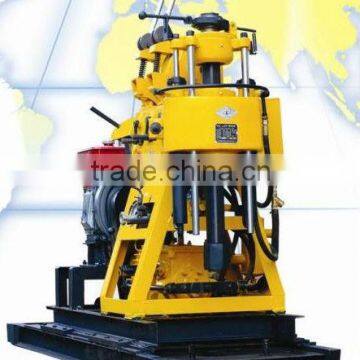

BZYT200 core drilling rig

Name: BZYT200 core drilling rig
Brand: BINZUAN
Availability: InStock

FOB Price

USD $1 - $40,000 / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

good quality and not expensive price
Drilling depth:30-200m
End hole caliber:500-75mm
Drill rod caliber:50mm

Specifications
Unity machine parameter
Drilling depth		30--200m
End hole caliber		500-75mm
Drill rod caliber		50mm
Drilling angle		90°~75°
Drill weight (No include power)		910kg
Unity machine dimensions		2.5×1×1.3 2.5×0.9×1.3m
Spindle
spindle speed		64,128,287,557r/min
Spindle stroke		450mm
Hoist
Max.single line hoisting capacity		2000kg
Single line lifting speed		17,35,75,151r/min
Tightrope caliber		12.5mm
Tightrope cubic measure		35m
Hug floodgate caliber		254mm
Hug folldgate belt width		70mm
Distance between drill and hole		400mm
Mud pump
Type	Horizontal single urn twin-action
Displacement	170L/min
Diesle engine	S1115 Model 22HP
Electric motor	Y160M—4 15kw 1440r/min
Maximum pressure	1.5Mpa
Work pressure	0.7Mpa
Water inlet caliber	40mm
Water to exit caliber	30mm
Triangle conveyer belt	B1728mm
