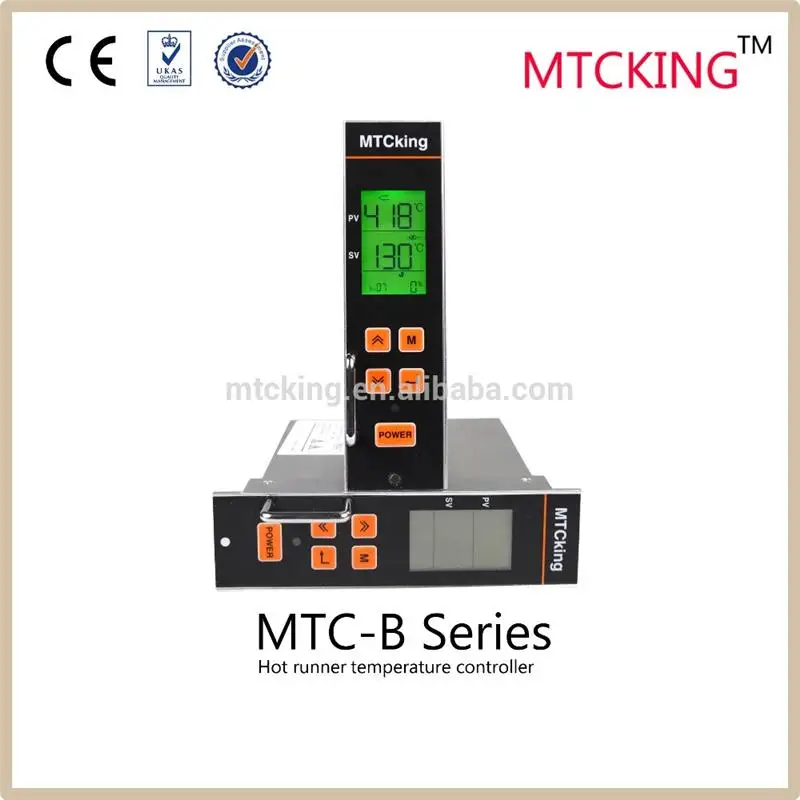

for Moulding Hot Runner System Temperature Controller Rs485 Modbus Temperature Controller
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
MTCKING
Model Number:
MTC-B
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Pid Manual Hot Runner Temperature Controller Lcd Hot Runner Temperature Controller Temperature Controller DigitalNegotiableMOQ: 1 Piece -
China Hot Runner Controller Controller Hot Runner for Rubber Injection Machine Digital Temperature ControllerNegotiableMOQ: 1 Piece
-
Made in China Hot Runner Temperature Controller Mold Hotrunner 2zone Hot Runner Instrument Incubator Temperature ControllerNegotiableMOQ: 1 Piece
-
k Thermocouple Temperature Controller Unit Display Temperature Controller DigitalNegotiableMOQ: 1 Piece
-
Factory Temperature Controller Making Measuring Instrument Temperature Controller ManualNegotiableMOQ: 1 Piece
Brand Name
MTCKING
Model Number
MTC-B
Product Description
| MTC-B Series temperature controller module | ||
| 01 | Brand name | MTCKING |
| 02 | Model | MTC-B |
| 03 | Control method | Physical button control |
| 04 | interface | New and traditional interface can be selected |
| 05 | Manipulation Language | English, Numbers and Symbols , etc. |
| 06 | Customization | Provide customized services |
| 07 | Screen Select | Single Screen |
| 08 | Display Screen | LCD screen |
| 09 | Size | 50mm*150mm*210mm |
| Important parameter | ||
| 01 | Control of temperature difference | ±1℃ |
| 02 | Cold high-end compensatiaon | ≤±1℃ TC |
| 03 | Temperature control range: | 50℃-450℃ |
| 04 | Total output power: | 3.5KW |
| 05 | Maximum output current of single loop: | 15A |
| 06 | Alarm range: | 0-100℃ Free set |
| 07 | Application of the rmocouple model: | K/J model ( Other thermocouple can be customized ) |
| 08 | Work power: | AC220V/380V 60HZ (three-phase four-wire) |
| 09 | Control | Digital PID control |
| 10 | Operational environment:- | 10℃-60℃,relative humidity35%H-85%RH,Noncorrosivity |
| Product features | |

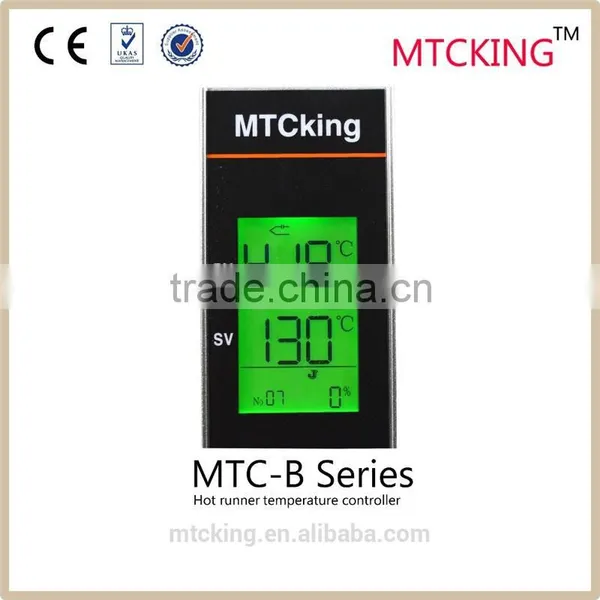

| 01 | Large-screen LCD visual display ,Three lines of words displayed |
| 02 | Show current&outputs ratio |
| 03 | color sound and light |
| 04 | Fuse fusing warning |
| 05 | Detect ther mocpuple abnormal |
| 06 | Detect heating tube abnorrmal |
| 07 | SCR temperature |
| 08 | Detect SCR short or open |
| 09 | Limit large current ,prolonging |
| 10 | 380V voltage protection,avoid card broken by misconnections |
| 11 | High quality industrial components,Suitable for any environment |
| 12 | Control linear voltage output,protect the heating tube |

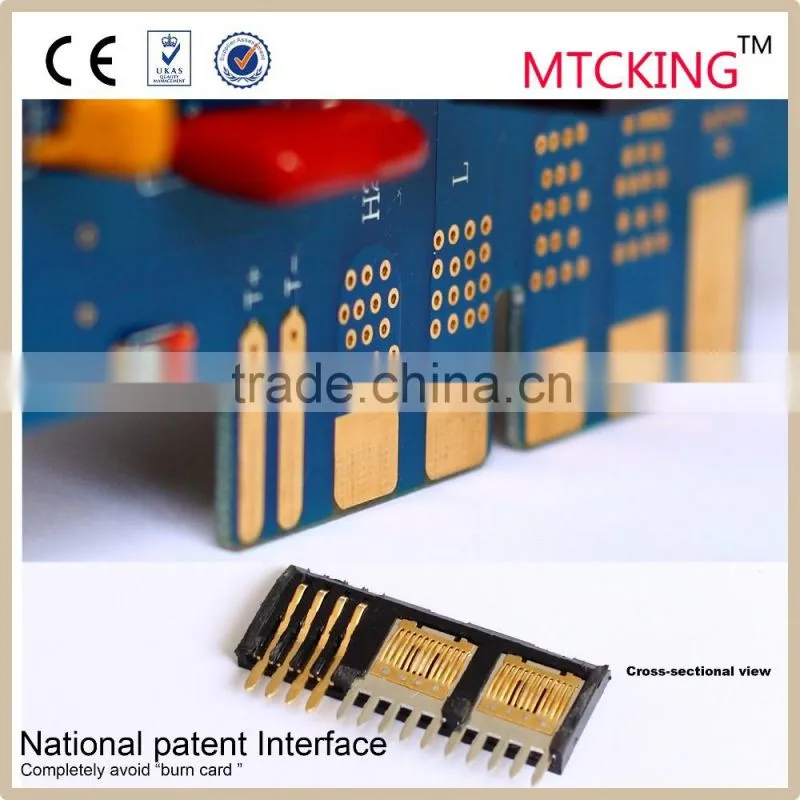

| 13 | New interface,completely avoid card broken |
| 14 | Software and the output line function |
| 15 | Single card control,easy to maintain |
product photo
Fitting
| 01 | Heavy-duty cable | 5m |
| 02 | Power cable | 5m |
| 03 | Power plug | 16A/32A |
| 04 | Standby screen | According to order quantity |
| 05 | standby control card | According to order quantity |
| 06 | Manual | 1 |
