Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
MTCKING
Model Number:
MTC-B-24 zone
Contact Supplier Request Quote Chat Now
Suzhou Bozhen Electronics Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name MTCKING
Model Number MTC-B-24 zone
injection mold temperature controller temperature controller suppliers with low priceProduct Description

MTC-B Series

MTC-B series of hot runner temperature controller, three line display interface, have the most perfect protection technology, national patent interface, PID control, soft start, current output display, fault alarm information, on-line current monitoring, heating wire, thermocouple failure or wrong connection will not damage any equipment. To achieve the best protection and three line display interfacetemperature control in the field of industry



01
Brand name
MTCKING
02
Model
MTC-B-24 zone
03
Control method
Physical buttons
04
Maximum control range
36 zone
05
Manipulation Language
English, Chinese, Korean, Japanese, etc.
06
Customization
Provide customized services
07
Size
310mm*90mm*210mm  (1 zone )
08
control technology
PID
Important parameter
01
Control of temperature difference
±1℃
02
Cold high-end compensatiaon
≤±1℃ TC
03
Temperature control range:
50℃-450℃ ( Temperature units can be freely selected )
04
Temperature unit:
free choice
05
1 Zone output power:
3.5KW
06
Maximum output current of single loop:
15A
07
Alarm range:
0-100℃ Free set
08
Application of the rmocouple model:
K/J model or others
09
Work power:
AC220V/380V 60HZ   it Can be changed
10
Control
Digital PID control
11
Operational environment:
10℃-60℃,relative humidity35%H-85%RH,Noncorrosivity
12
Depending on your needs and meet your technical requirements
Product features
01
Three line display interface
02
Show current&outputs ratio
03
color sound and light
04
Fuse fusing warning
05
Detect ther mocpuple abnormal
06
Detect heating tube abnorrmal
07
SCR temperature
08
Detect SCR short or open
09
Limit large current ,prolonging
10
380V voltage protection,avoid card broken by misconnections
11
High quality industrial components,Suitable for any environment
12
Control linear voltage output,protect the heating tube
13
New interface,completely avoid card broken
14
Software and the output line function
15
Single card control,easy to maintain
16
Depending on your needs and meet your technical requirements
Detailed Images

MTC-B-6 Zone

Simple cabinet shape, free replacement of hot runner temperature control card.

Hot runner temperature control card

Three LCD display interface, fault information and production information at a glance, the most perfect self protection technology. PID hot runner temperature controller.

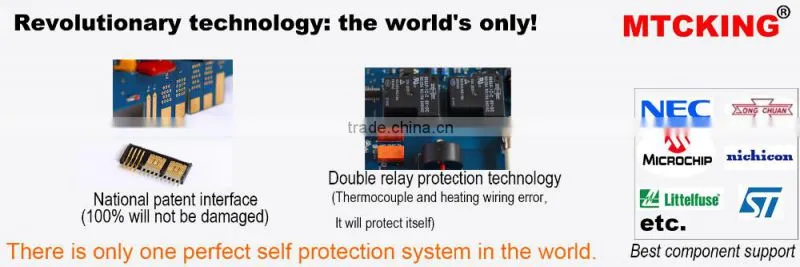

National patent Interface

Completely avoid "burn card ",the actual effective contact area is five times that of traditional interface,Over-current capability is three times that of traditional interface.

Fitting
01
Heavy-duty cable
5m Standard configuration
02
Power cable
5m Standard configuration
03
Power plug
16A/32A or other
04
Standby screen
According to order quantity
05
standby control card
According to order quantity
06
Manual
1
07
Depending on the need, you can customize
