Help CenterFingerprint Door Lock
Related Products
Specifications
Fingerprint Door Lock1.switch controlled
2.LED friendly display
3 Touch screen
TECHNICAL SPECIFICATION
(1) Electrical parameters
1) Working Voltage:6V DC
2) Alarming Voltage:≤5V
3) Working Current:20~260 mA
4) Static Current:<10 uA
(2) Function Index
1) Fingerprint enrollment method: Optical sensor
2) Sensor Resolution:500DPI
3) Fingerprint Recognition Time: <1.5s
4) FRR (False Rejection Rate):≤1%
5) FAR (False Acceptance Rate):≤0.0001%
6) Max master fingerprint: 5pcs
7) Max master password:5pcs
8) Max normal user fingerprint:50pcs
9) Max normal user password:50pcs
10) Unlocking mode:3-4
11) Password Length:3~12 digits
12) Power supply: Alkaline battery
13) Battery life: More than 2 years
fingerprint Door Lock
FUNCTIONAL CHARACTERISTICS:
1: Adopt INTEL fingerprint scanner
2: Korean style, Japanese finish technology
3: Famous fingerprint scanner, work fast and stable
4: Large fingerprint collection area, large angle to collect fingerprint
5: Protection cover protect the scanner and keypad
6: Outlet for external 9V battery
7: Mechanical key for emergency
8: Minimum 55 pcs fingerprint, can be extend more
9: The surface of shell is chrome plated / golden PVD, the finish is durable
10: Three modes to unlock: fingerprint, password, mechanical key
*Installation request: To be installed on the door, with the thickness between 38mm and 70mm,
and if the door surface is decorated, the distance between the decorative edge and the edge of the door must be over 110mm.
*Handle orientation: left hand push to open, right hand push to open; left hand pull to open, right hand pull to open

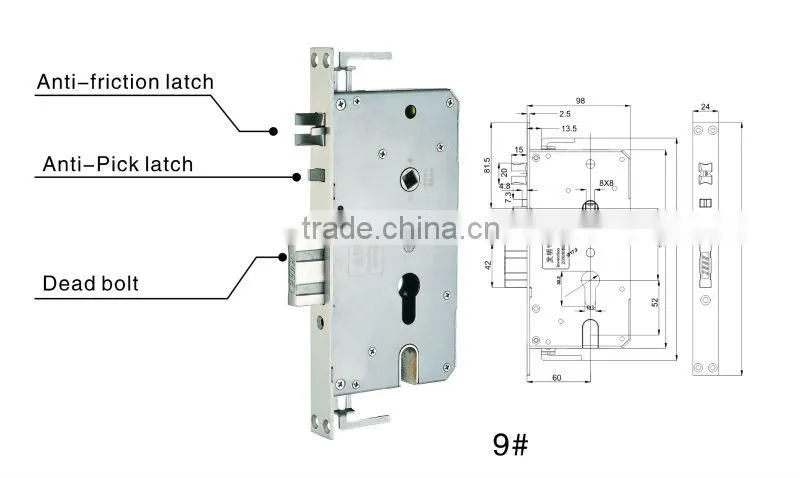

Multiple options for mortise: ANSI mortise (5 latch mortise) / European mortise (3 latch mortise)
lManufacture process and quality control
