New products Rubber Adhesive semi conductive tape
Shenzhen Cotran Industrial Material Co., Ltd. is a leading supplier of electrical insulation and moisture sealing products that are sold to a broad range of customers including distributors of electrical materials, power utilities, telecommunication companies, mines, original equipment manufacturers, governments and retailers. Cotran’s product range consists of vinyl electrical tapes, mastic and rubber backed mastic water sealing tapes, ethylene propylene rubber (EPR) based self-amalgamating high voltage insulating and semi-conducting tapes and other special purpose tapes and related products.
Description :

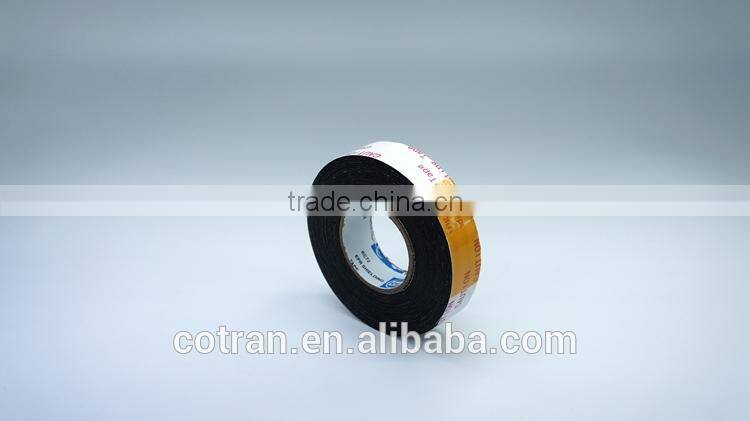

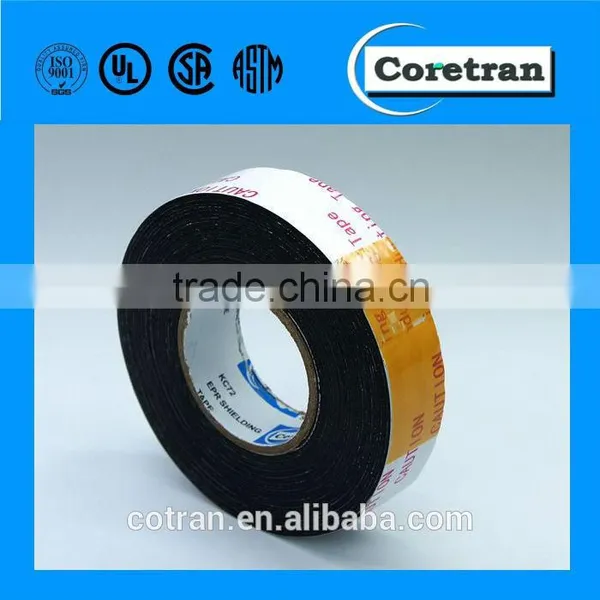

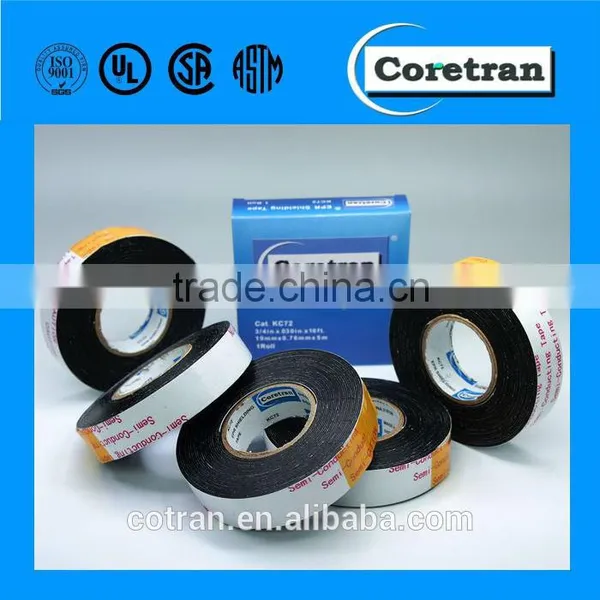

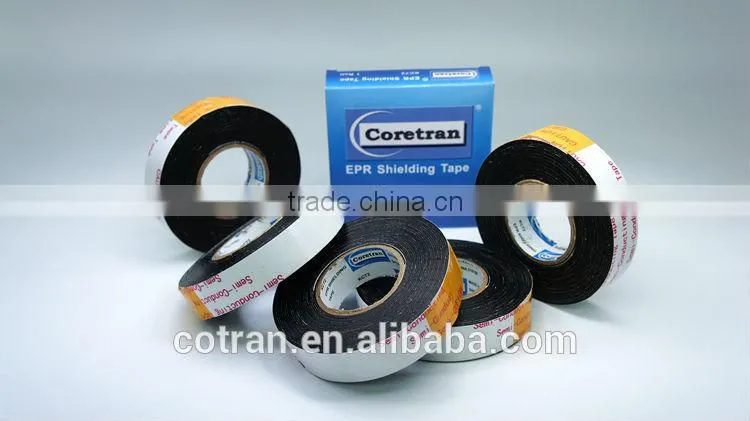

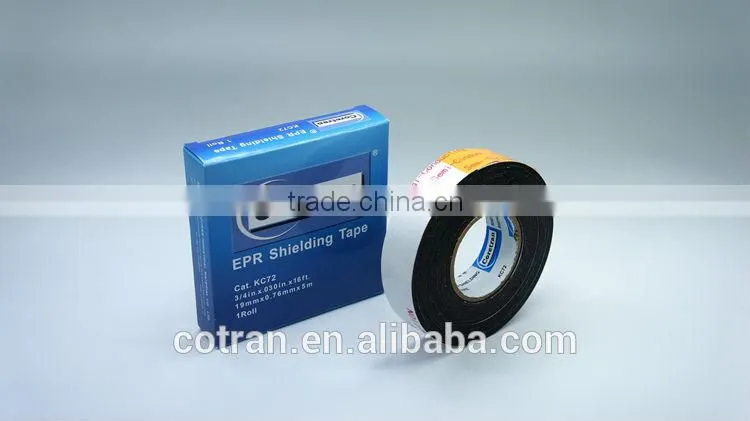

- New products Rubber Adhesive semi conductive tape is a 0,76mm self-amalgamating ethylene propylene rubber (EPR) semi-conducting tape used on high voltage solid dielectric cable for conductor and insulation shielding in splices and terminations.

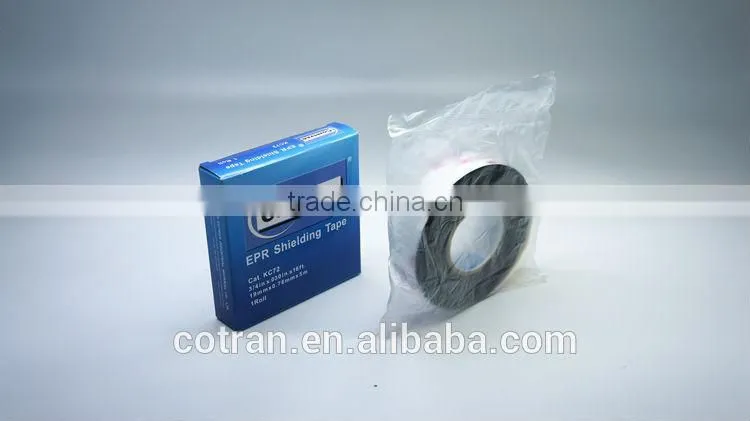

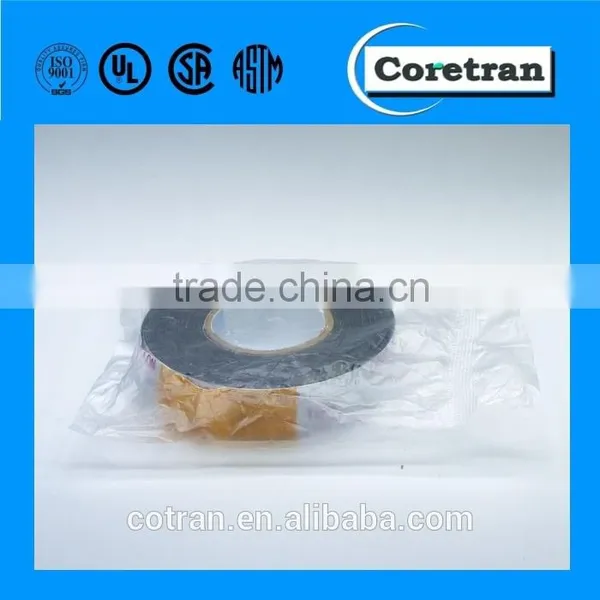

- The tape comes with a separator that is removed during the taping process.

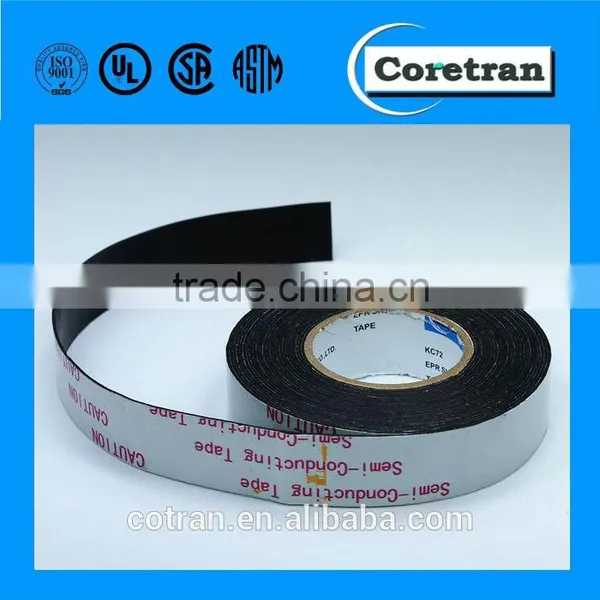

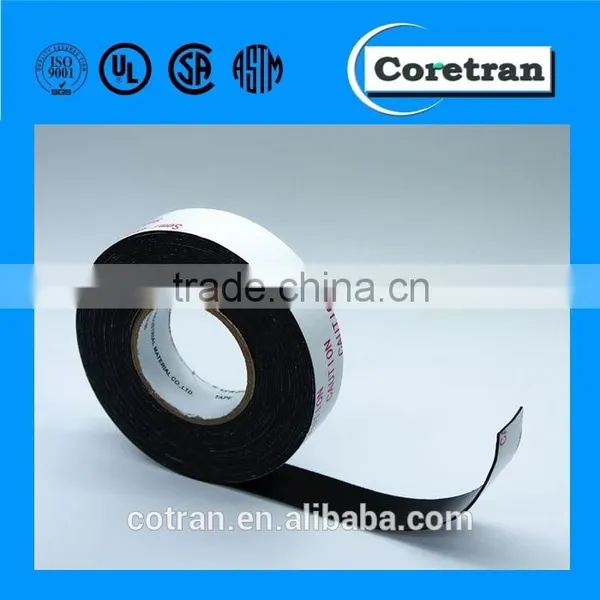

- Both the tape and separator are printed with the advice that it is a semi-conducting tape.
- Rubber Adhesive semi conductive tape is suitable for use with conductors rated at 90°C with an emergency overload rating of 130°C.
- Semi conductive tape fully meets all requirements for Type IV tape in ASTM D 4388.
Application:
- Electrostatic shielding in splices and terminations of solid dielectric cable
- Filling in around irregular shaped connectors
- Reconstitution of conductor shielding in high voltage splices
- Other shielding applications
Description :
- New products Rubber Adhesive semi conductive tape is a 0,76mm self-amalgamating ethylene propylene rubber (EPR) semi-conducting tape used on high voltage solid dielectric cable for conductor and insulation shielding in splices and terminations.
- The tape comes with a separator that is removed during the taping process.
- Both the tape and separator are printed with the advice that it is a semi-conducting tape.
- Rubber Adhesive semi conductive tape is suitable for use with conductors rated at 90°C with an emergency overload rating of 130°C.
- Semi conductive tape fully meets all requirements for Type IV tape in ASTM D 4388.
Application:
- Electrostatic shielding in splices and terminations of solid dielectric cable
- Filling in around irregular shaped connectors
- Reconstitution of conductor shielding in high voltage splices
- Other shielding applications
Specifications:
| Property | Value |
| Elongation at Break | 935% |
| Fusion | Pass |
| Operating Temperature Continuous | 90℃ |
| Volume Resistance | 1*10^3Ω.cm |
| Ozone Resistance | Pass |
| UV Resistance | Pass |
| Heat Exposure | Pass at 130℃ |
| Xenon-arc Exposure @ 1008h | Pass |
- Your inquiry related to our product&price will be replied within 24 hours.
- OEM&ODM projects are highly welcomed. We have strong R&D team here to help.
- Your business relationship with us will be confidential to any third.
- Good after-sale service offered, please get back if you got question.
Suggestion for inquiry:
- If you have a sample in hand, and want to buy the same goods for it, please send your inquiry with the real picture, sizes, packing requirement, qty, etc.
- If you are purchasing this item, please send us full details including the thickness, length, width, application of the tape, and the quantity you need.
What is Self-amalgamating tape?
»»»From Wikipedia, the free encyclopedia
Self-amalgamating tape is a non-tacky silicone-rubber tape which when stretched and wrapped around cables, electrical joints, hoses and pipes combines or unites itself into a strong, seamless, rubbery, waterproof, and electrically insulating layer. Unlike many other polymers and fibers, it is heat-, sunlight-, and weather-resistant. This type of tape is also described, particularly in the United States, as "self-fusing" or "self-vulcanizing". In the US Air Force (and elsewhere) it is called centerline tape due to a colored line running down the center used to assist with even wrapping. It is also called F4, rescue, and fix-it tape.
While not adhesive as such, its self-amalgamating property makes it function as like adhesive tape when wrapped over itself. It is supplied in rolls with an interleaving layer, to prevent the tape from amalgamating before use. It may optionally be made with an iron-oxide additive which adds high thermal conductivity. This tape is used extensively in aviation and aerospace wiring applications as a splice or wrapping tape due to its non-flammability.[citation needed] It can be used for emergency repair of leaking low-pressure hoses and pipes.
Compared to most other electrical and utility tapes, centerline tape is not particularly tough mechanically. Silicone rubber feels soft but is also susceptible to cuts and abrasion, having low "tear resistance". This weakness is made worse because this tape is wrapped while stretched, and remains under internal tension even while fused, so that any nicks or cuts may start to tear and expand without additional external tension.[6] However these same properties, combined with the lack of traditional gum adhesive,makes tape removal if needed, quick, clean, and easy.
