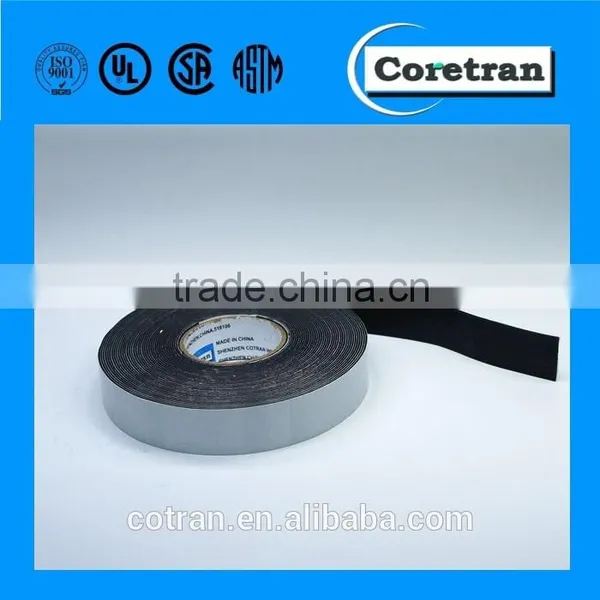

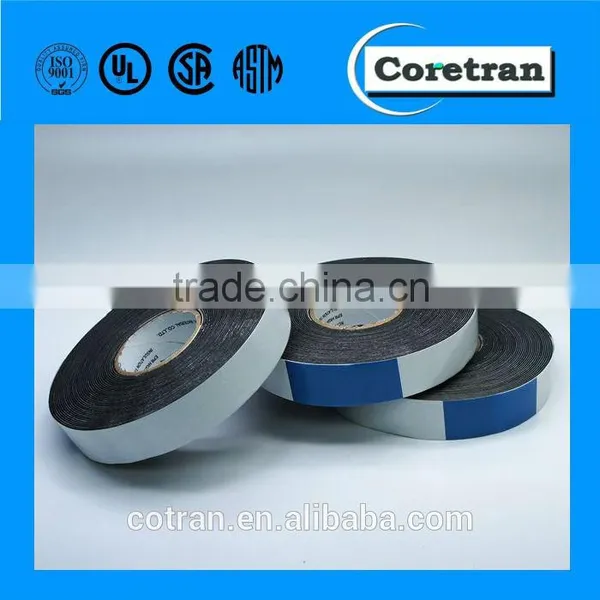

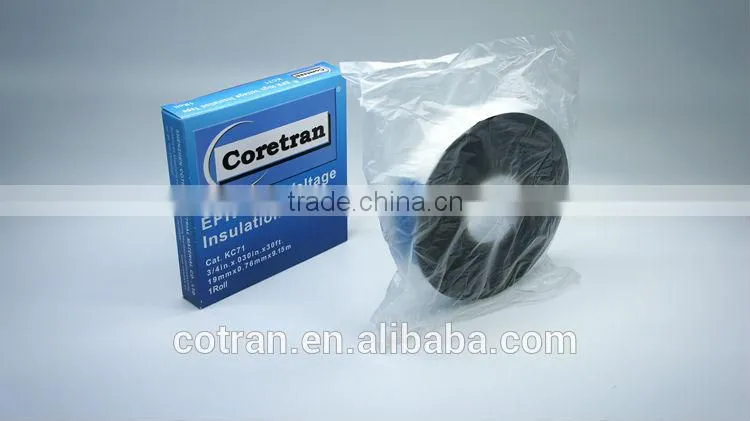

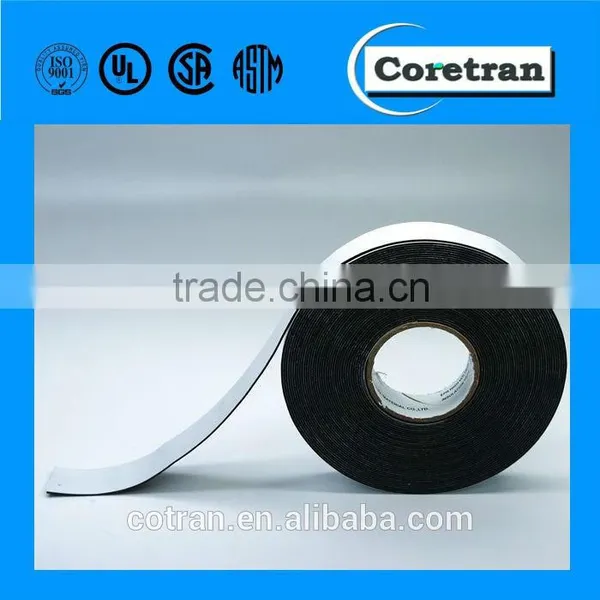

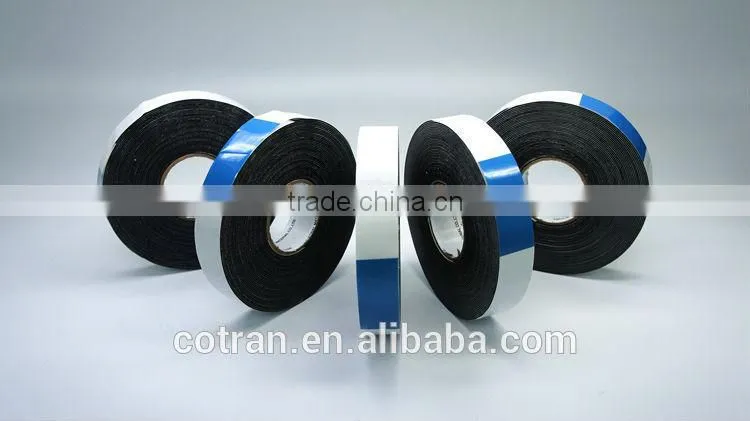

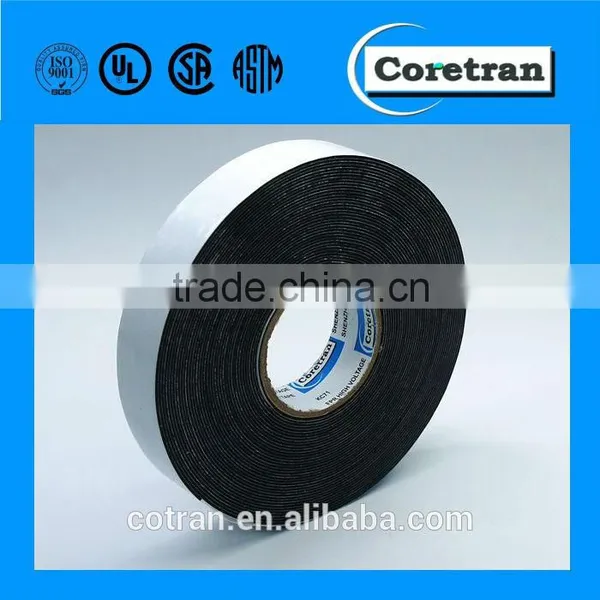

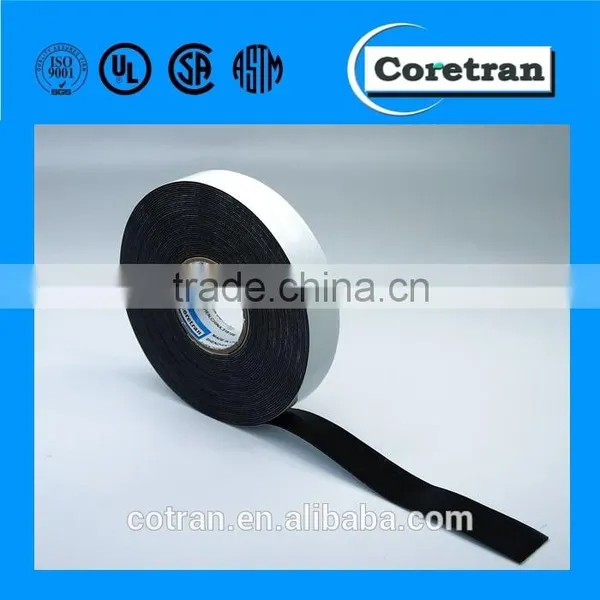

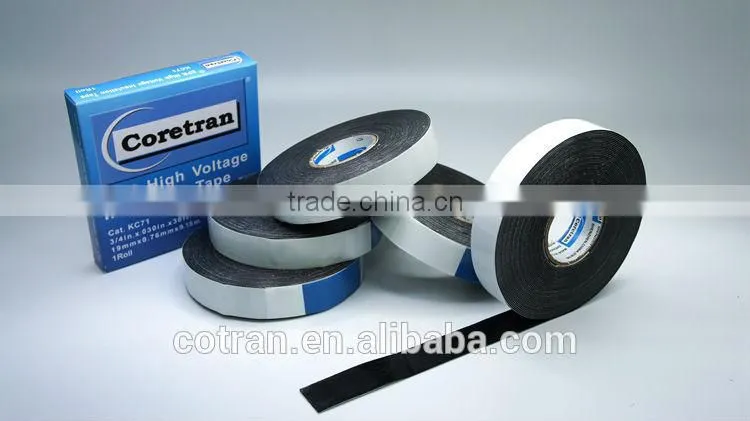

High Voltage Insulation Tape for Electrical
Description :
- Electrical Insulation Tape For High Voltage, Rubber insulation tape is a self-amalgamating ethylene propylene rubber tape used on solid dielectric cable for electrical insulation and jacketing in splices up to 69kV and for building stress cones in terminations up to 35kV.
- The tape comes with a separator that is removed during the taping process.
- Its 0,76mm thickness and quick amalgamation facilitates a rapid, void fr ee insulation build-up that is electrically stable and moisture proof.
- Electrical Insulation Tape For High Voltage, Rubber insulation tape is suitable for use with conductors rated at 90°C with an emergency overload rating of 130°C.
- The tape is also resistant to corrosion, chemicals and ultra violet light.
- Electrical Insulation Tape For High Voltage, Rubber insulation tape fully meets the Table 1 requirements for Type III tape in ASTM D 4388.
Application:
- Electrical insulation and jacketing in splices of solid dielectric cable up to 69kV
- Building stress cones in terminations of solid dielectric cable up to 35kV
- Jacketing of indoor terminations
- Bus bar insulation and corrosion protection
- Jacket repair and restoration in all types of cable
- Moisture sealing applications
Specifications:
Property | Value |
Elongation at Break | 880% |
Fusion | Pass |
Operating Temperature Continuous | 90℃ |
Emergency Overload | 130℃ |
Dielectric Strength | 38.3kv/mm |
Water Absorption | 0.13% |
Copper Corrosion | Pass |
Ozone Resistance | Pass |
UV Resistance | Pass |
- Your inquiry related to our product&price will be replied within 24 hours.
- OEM&ODM projects are highly welcomed. We have strong R&D team here to help.
- Your business relationship with us will be confidential to any third.
- Good after-sale service offered, please get back if you got question.
Suggestion for inquiry:
- If you have a sample in hand, and want to buy the same goods for it, please send your inquiry with the real picture, sizes, packing requirement, qty, etc.
- If you are purchasing this item, please send us full details including the thickness, length, width, application of the tape, and the quantity you need.
Shenzhen Cotran Industrial Material Co., Ltd. is a leading supplier of electrical insulation and moisture sealing products that are sold to a broad range of customers including distributors of electrical materials, power utilities, telecommunication companies, mines, original equipment manufacturers, governments and retailers. Cotran’s product range consists of vinyl electrical tapes, mastic and rubber backed mastic water sealing tapes, ethylene propylene rubber based self-amalgamating high voltage insulating and semi-conducting tapes and other special purpose tapes and related products.
