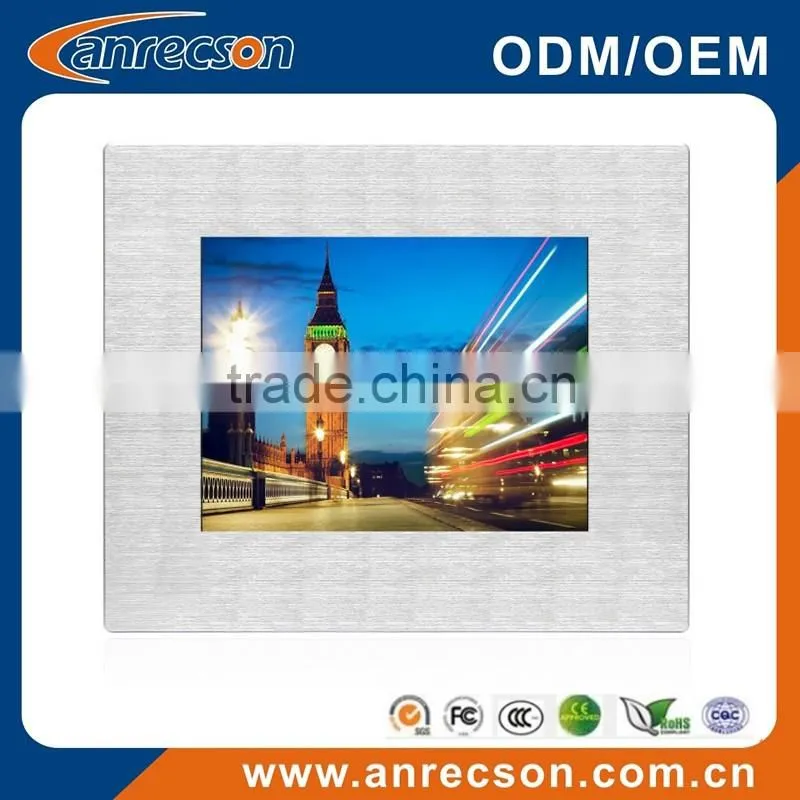

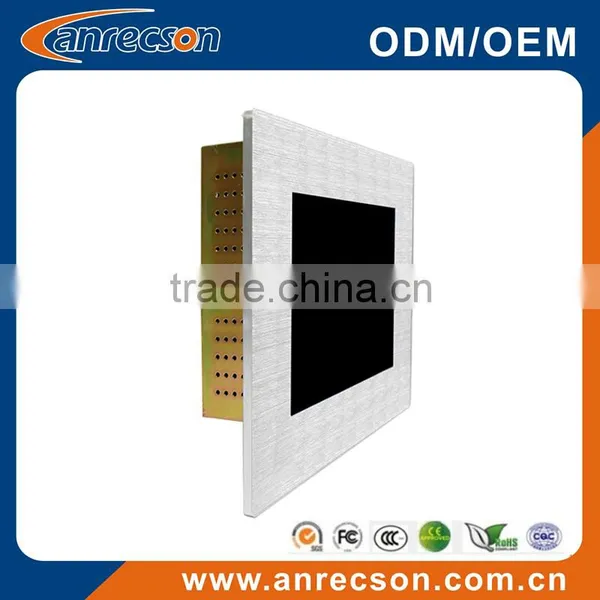

10.4 inch industrial touchscreen Panel PC IP65 for industrial devices
Features:
1. Any size ranging from 7" to 65", such as 7", 8", 10.4", 12.1", 15", 17", 19", 20", 21.5", 22", 24", 26", 32", 37", 40", 42", 46", 55", 65", etc, support any existing OS system.
2. Optional touchscreen: 4-wire/5-wire Resistive, Infrared, SAW, Capacitive, with USB or RS232 touchscreen interface.
3. One aluminum bezel on the front, VESA mount, open frame style and Panel mount available.
4.SAMSUNG/AUO/SHARP panel, with high brightness, short response time, low power consumption; 7"-10.4" is with LED as backlight, 12"-20' CCFL, 22"-65" LED; Special resolution available, welcome special configuration from your side.
5. A/D board is industrial grade with wide operating temperature, can be applied to special conditions, suitable for work 24 hours per day, 7 days per week.
6. Applicable to multimedia teaching, surveillance system, gaming machine, etc. educational, industrial or entertainmental areas.
| Item | Project | Parameter | ||||
| LCD Display | Display Type/Size | Color TFT LCD/10.4″ | ||||
| Active Display Area (mm) | 214mm(W)×160mm(H) | |||||
| Display Mode | 4:3 | |||||
| Max Resolution | 800×600 | |||||
| Support Color | 16.7M | |||||
| Luminance(cd/m2) | 300nit | |||||
| Backlight | LED backlight (optional) | |||||
| Contrast Ratio | 500:1 | |||||
| Response Time | 7ms | |||||
| Pixel Pitch | 0.264(H)×0.264(V) | |||||
| Viewing Angle | 110/150(H/V) | |||||
| Processor System | Chip set | Intel J1900(n2807) | ||||
| CPU | Intel J1900(n2807) | |||||
| Internal memory | DDR3(800/1066/1333MHz)Typ. 2G (Max 4G)(optional) | |||||
| Hard disk | 16GB high speed solid state disk (optional) | |||||
| VGA ports | 1xVGA Ports | |||||
| COM ports | Defaultx2 COM(optional) | |||||
| Ethernet ports | One Realtek 8111E 1000 Mbps /(optional Wi-Fi connectivity supporting 802.11 a/b/g.) | |||||
| Audio | with Realtek ALC662 Line-In/Line-Out/Speaker out with 3W AMP Circuit |
|||||
| USB ports | Defaultx4 USB(Max x6) | |||||
| Touch Type(optional) | TouchScreen Type | Resistive(4-wire/5-wire) | ||||
| Optional Touch Type | SAW, IR, Capacitive | |||||
| TouchScreen interface | Serial (RS232) or USB | |||||
| Power supply | Input Voltage | DC12V 4A | ||||
| Output Rating | less than 18W | |||||
| Temperature Range | Operating Temperature | -20~70°C | ||||
| Storage Temperature | -20~70°C | |||||
| Relative Humidity | 20(%RH)~90(%RH) | |||||
| Remarks: | |||||
| 1. The price is based on USD currency and EXW terms. | |||||
| 2. Payment Terms: 100%T/T in advance for sample; 30% T/T deposit, 70% T/T before shipping for bulk order. | |||||
| 3. Delivery Time: 3-7 workdays for sample, 15-25 workdays for bulk order. | |||||
| 4. Warranty: 18 months | |||||
| 5. Certificates: CE, RoHS, FCC, CCC, ISO | |||||
Anrecson profile:
Shen Zhen Anrecson Electronics Co., Ltd., a leading LCD monitor manufacturer, has been specializing in research & design and providing LCD monitors since 1998. We are based in Shenzhen with sales office all over China. Our products cover industrial lcd monitor, open frame lcd monitor, touch monitor, commercial monitor, CCTV monitor, Panel PC, video wall etc.
"ANRECSON " has been ranked in the Top 10 LCD monitor supplier with high reputation in China. Our professional R&D department with full experience can provide our customers with customized service.
"ANRECSON " products have got CE, RoHS, FCC, CCC certificates. We'll continue trying our best to give each customer our best service under the guide-line of "best quality with best price and fastest delivery". So you can rest assured to cooperate with us.
Wooden safe package by air, sea cargo or fast delivery air cargo
