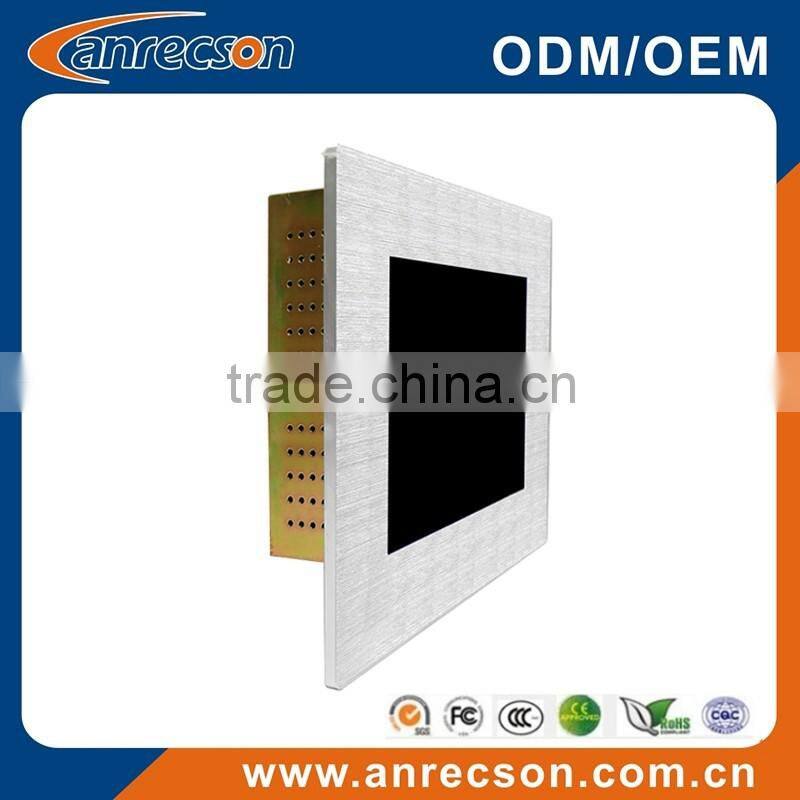

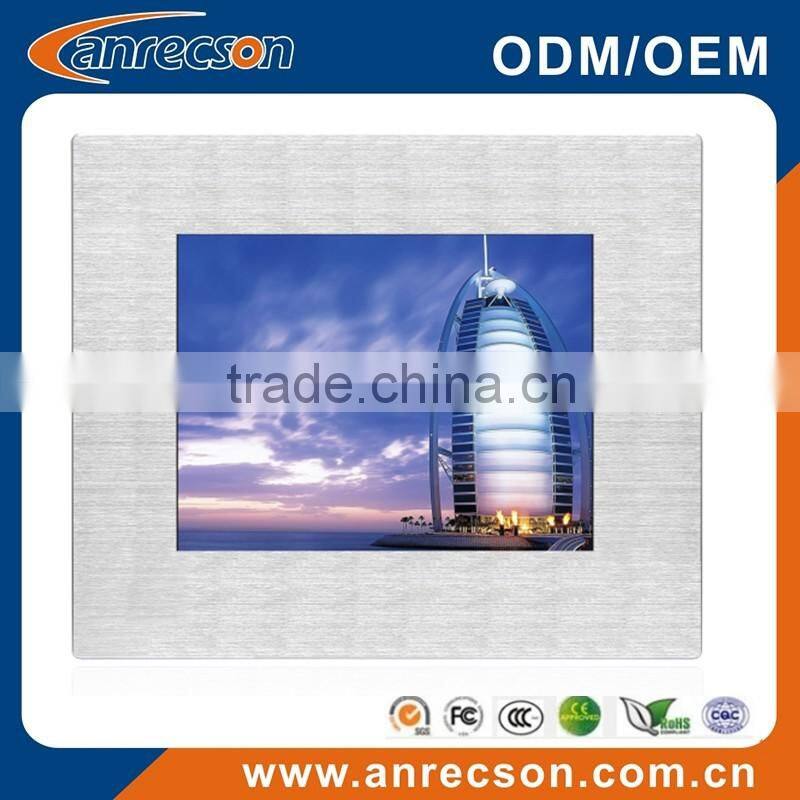

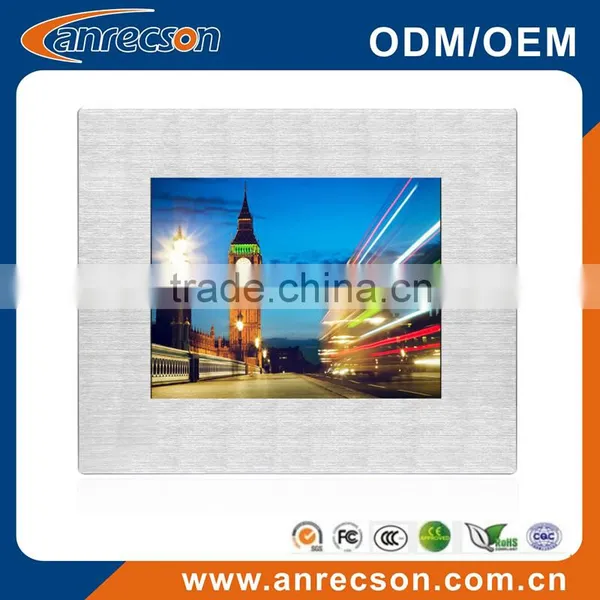

Industrial IP65 PC19 inch Fanless Panel PC All in One
Feature Descriptions :
various sizes from7"--84" such as:7",8",10.4",12.1".15",17”,18“,19”,20",21.5",22",24"26"32”37”40”42”46”etc.
1.Intel J1900/n2807(optional i5/i3/i7 CPU)
2.16GB high speed solid state disk (optional)
3.Intel j1900
4. Sumsang panel,High configuration,vibration proof
5.wide temperature and humidity
6. Open Frame touch( or industrial panel PC with aluminum bezel optional)
7. Any customized service
8.CE, RoHS, FCC, CCC certificates.
9. for medical panel PC, marine panel PC, for information display, embedded in industrial automatic device
Data sheet:
| Specification | ||||||
| Item | Project | Parameter | ||||
| LCD Display | Display Type/Size | Color TFT LCD/19″ | ||||
| Active Display Area (mm) | 376.32mm(W)×301.056mm(H) | |||||
| Display Mode | 4:3 | |||||
| Max Resolution | 1280×1024 | |||||
| Support Color | 16.7M | |||||
| Luminance(cd/m2) | 250nit | |||||
| Backlight | LED backlight | |||||
| Contrast Ratio | 1000:1 | |||||
| Response Time | 3.7ms | |||||
| Pixel Pitch | 0.294(H)×0.294(V) | |||||
| Viewing Angle | 170/160(H/V) | |||||
| Processor System | Chip set | Intel NM10 | ||||
| CPU | Intel J1900 | |||||
| Internal memory | DDR3 (800/1066/1333MHz) Typ. 2G (Max 4G)(optional) | |||||
| Hard disk | 16GB high speed solid state hard disk (optional) | |||||

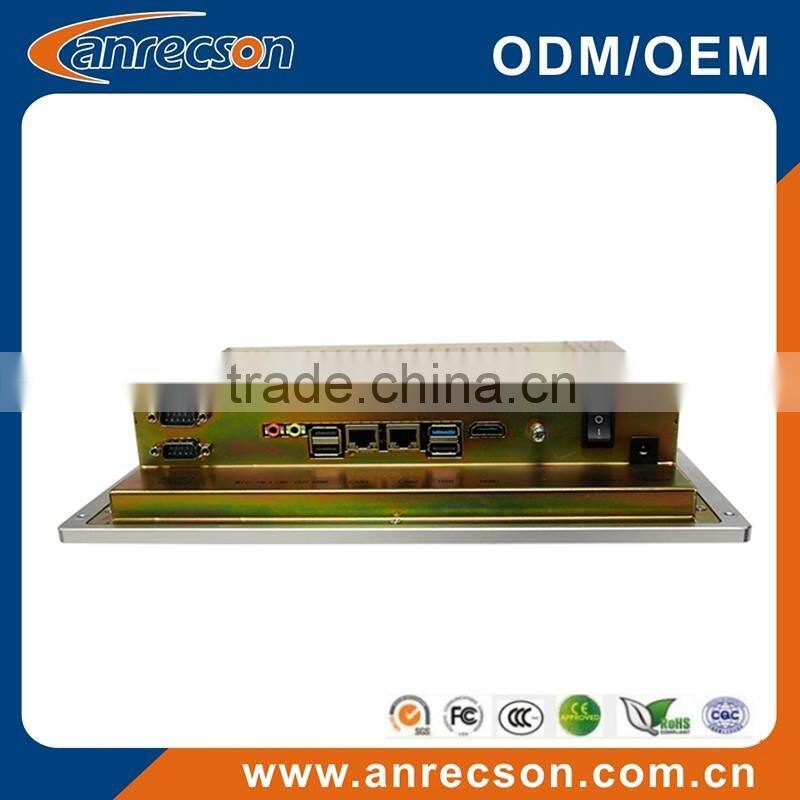

| HDMI ports | 1xHDMI Port | |||||
| COM ports | Defaultx2 COM(optional) | |||||
| Ethernet ports | Two Realtek 8111E 1000 Mbps /(optional Wi-Fi connectivity supporting 802.11 a/b/g.) | |||||
| Audio |
with Realtek ALC662 Line-In/Line-Out/Speaker out with 3W AMP Circuit |
|||||
| USB ports | Defaultx4 USB(Max x6) | |||||
| Touch Type(optional) | TouchScreen Type | Resistive(4-wire/5-wire) | ||||
| Optional Touch Type | SAW, IR, Capacitive | |||||
| TouchScreen interface | Serial (RS232) or USB | |||||
| Power supply | Input Voltage | DC12V 4A | ||||
| Output Rating | <=30W | |||||
| Temperature Range | Operating Temperature | -20~70°C | ||||
| Storage Temperature | -20~70°C | |||||
| Relative Humidity | 20(%RH)~90(%RH) | |||||
For Anrecson product, we provide safe smaller package for customer to save shipping cost:
1. Small sizes: standard neutral package
2. Big sizes: standard safe package + wooden case/frame case(extra cost)
3. OEM Packge(extra cost): a. flight case
b. OEM package with logo and design
Shipping: Express (UPS, DHL, TNT, etc), By air, via ocean etc
Advantages:
1.Low Price: |
factory offer directly |
2. High quality |
|
> 16 years experience and china Top 10 brand > Samsung, AUO, Sharp, LG original panel > Industrial grade component > CE, ROHS, FCC, CCC, ISO9001 certificates |
3.Good Service |
|
> Prompt response after receiving inquiry > Professional and clear answers about product > Useful suggestions for your project > Supply different option to Save Your Cost > any customized service available |
4.Fast delivery |
> 3 to 5 working days for sample |
> 2 to 3 weeks for the mass products order |
Founded in 1998, Shenzhen ANRECSON electronics Co., Ltd has been among the most recognized vendors of professional display solutions in domestic and overseas market. Our products are used by agencies, companies, and organizations to provide lcd display solutions, which in turn save them time, resources, and money. Key industries include: security& surveillance, medical display, industrial display solution(Financial device, like ATM/VTM/POS, rail transit like Metro PIS/AFC/CCTV, self-service device(kiosk/vending machine/ gaming machine.) , video wall display solution, transparent lcd screen for advertising, etc.
1. How long will it takes for order?
A: For sample:3~5workdays , bulk order 7~15wordays according to order quantity,
2. How about warranty?
Please refer to the after sales service on Anrecson official website.
3. what about payment ways?
Payment: by T/T, Western Union, alibaba escrow, Trade Assurance, E-checking etc.
Payment: For sample, 100% T/T in advance;
For bulk order, 30% deposit after getting order and 70% T/T before shipment.
