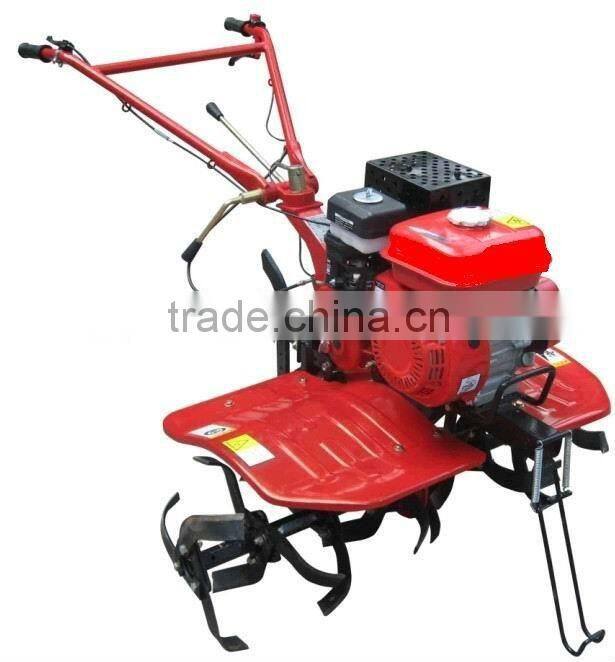

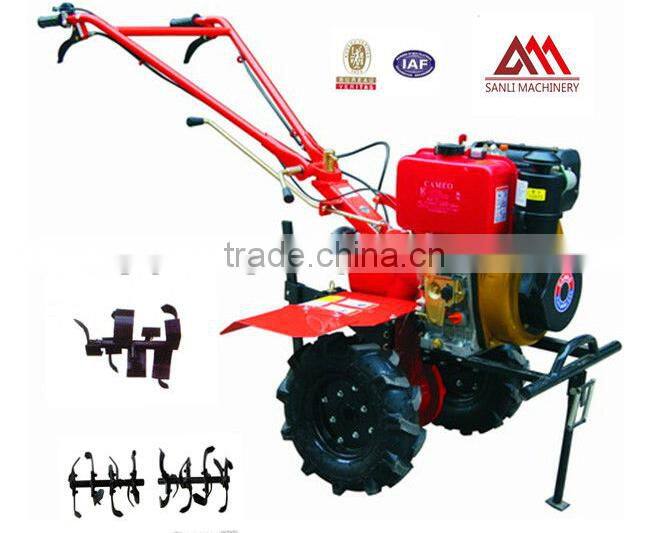

7HP Diesel Petro Scarifier With Ridger Hoe Plough

  9HP diesel engine air-cooled model 186f diesel engine power tiller/till machine for garden and farm

Specifications

Micro tillage machine has the advantages of light weight, small volume, simple structure etc.


Micro tillage machine uses small diesel or gasoline engine as its power, has the advantages of light weight, small volume, simple structure etc. With the corresponding equipment it could not only pump, power generation and spray operations, but also tow the trailer for short-distance transport.

 Technology parameters
Tiller Model 1WG-4.0
Type standard Diesel power tiller
Max. power(hp/rpm) 6/3600
Dimension(LxWxH)mm 1650x1100x950
Clutch By Friction
Tyre specification 4.00-8
Output shaft speed (rpm) 3600/1800
total Weight(kg) 115kg
speed (km/h) forward slow 6.29
fast 10.95
fall back 4.7
Armrest frame turning Angle 90°
Max. tilling depth ≥100mm
Average tilling width 1000-1100mm
Broken soil rate ≥50%
Production capacity 666-200m2/h
Max.fuel consumption ≤0.00089L/m2
Engine Model 178F
Type 6HP 4-stroke, single-cylinder ,Verticle Type, Direct injection
cooling Air-cooled
Rated powerkw 4kw/3000rpm
Max.Output 4.4kw/3600rpm
start method Recoil manual
cylinder bore x stroke(mm) 78x62
capacity of oil box 3.5L
capacity of engine oil 1.1L

Use and Advantages:

1)This tractor has the characteristic of compact structure and light weight.

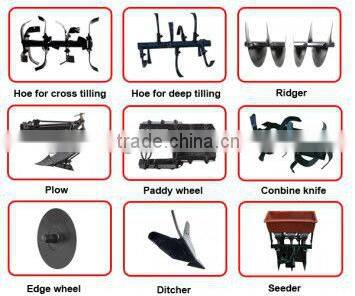

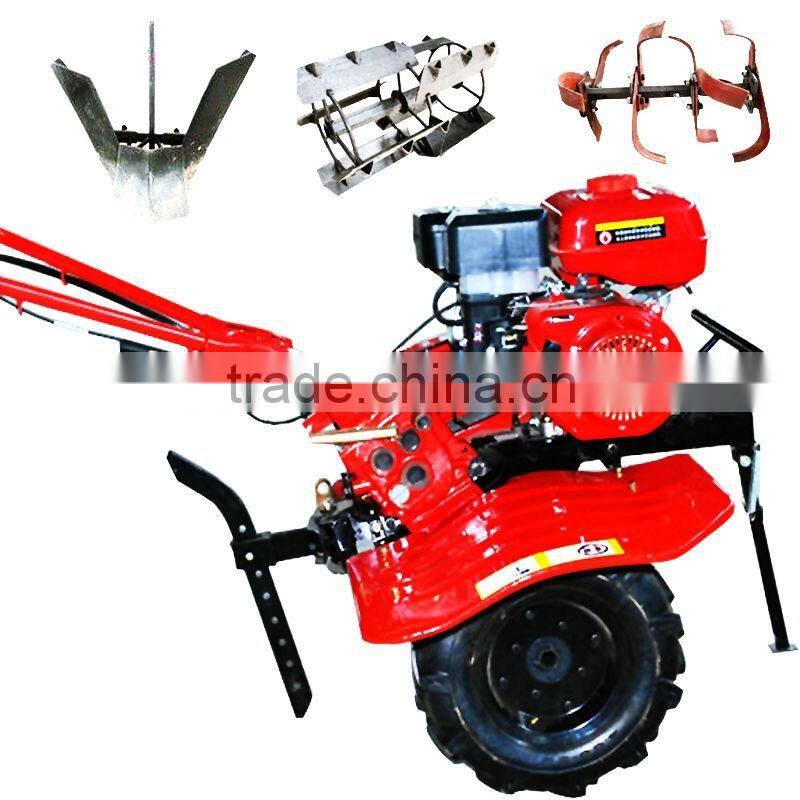

2) It can be completed to do farm works of rotary tillage, weeding, deep ploughing, ridging, ditching, sowing, fertilizing, spraying chamicals etc. equipped with reference supporting facilities.

3)It's widly used for film house, vegetable plot, hill and terrace.

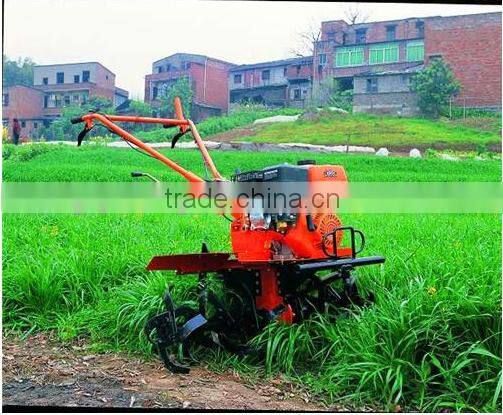

Application of the power tiller
