Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > UL Style 10974 PVC Insulated Wire 2KV Wire

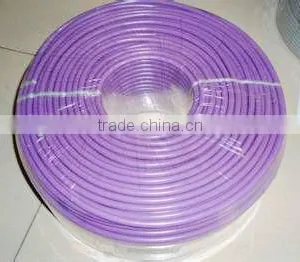

UL Style 10974 PVC Insulated Wire 2KV Wire
US$ 0.15 - 3.25
MOQ: 6100 Meters
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Haerkn
Model Number:
UL 10974
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cotton/Copper Braided Lamp Cable for Lamp /lightingUS$ 0.1 - 5MOQ: 5000 Meters -
Best Selling EPDM Cable UL3614US$ 0.01 - 2MOQ: 6100 Meters
-
UL Style 3682 XLPE Cable 30AWGUS$ 0.03 - 0.2MOQ: 6100 Meters
-
UL Approved EPDM Cable UL3614 26AWGUS$ 0.01 - 0.5MOQ: 6100 Meters
-
VDE Lamp Textible Power Cord Cable With PlugUS$ 0.1 - 5MOQ: 6100 Meters
Place of Origin
Guangdong, China
Brand Name
Haerkn
Model Number
UL 10974
Type
Insulated
Application
Other, Internal Wiring of Appliances
Conductor Material
Other, bare or tinned copper
Conductor Type
Other, Solid or stranded round
Insulation Material
PVC
UL Style 10974 PVC Insulated Wire 2KV wire
Specification Data
| Rating | 105 deg C, 2000 Vdc, Horizontal flame. Oil resistant 60 deg. C to 80 deg. C (optional) |
| Conductor | 30 AWG - 2000 kcmil solid or stranded round, tinned or bare copper. |
| Insulation | PVC |
| 30-9 AWG conductor size | 30 mils min average | 27 mils minimum at any point |
| 8-7 AWG | 45 avg | 40 min |
| 6-2 AWG | 60 avg | 54 min |
| 1-4/0 AWG | 80 avg | 72 min |
| 250-500 kcmil | 95 avg | 86 min |
| 550-1000 kcmil | 110 avg | 99 min |
| 1100-2000 kcmil | 125 avg | 112 min |
| Standard | Appliance Wiring Material UL 758. |
| Marking | General. |
| Use | Internal Wiring of Appliances; or Internal Wiring of Appliances where exposed to oil at a temperature not exceeding 60 deg. C or 80 deg. C (whichever is applicable). |
