Recycling System to Change Waste Truck/machine/motor Oil Into Base Oil ! China ZSA Used Vehicle Oil Distillation

Recycling system to change waste truck/machine/motor oil into base oil ! China ZSA used vehicle oil distillation

      This machine can treat a variety of waste lube oil, to get high quality base oil and a small amount of gasoline and diesel through vacuum distillation. After pretreatment, waste oil pumping into the distillation kettle, and be heated to working temperature, we will get the base oil, gasoline and diesel oil .When this reaction completed, stop heating, remove residue from the bottom of the tank, then the machine can be used again. The production is economical, however, the base oil is excellent .This is the most advanced technology in the world in the waste oil recycling field, and it is suitable for large-scale industrial production.

Systems of equipment

Pretreatment system: Waste oil will be pumped into the distillation kettle after pretreated.

Distillation system: through burning coal, gas or fuel oil to make the oil in the kettle up to the working temperature. This system equipped with stirring system and insulation system.

Cooling system: the gaseous hydrocarbon will be cooled into liquid base oil. Gasoline and diesel.

Oil storage system: the base oil, gasoline and diesel get from cooling system storage here, and then pump into the storage tank.

Vacuum system: meet the technology requirement.

Filtration system: rapidly filter out mechanical impurities in the base oil, gasoline and diesel, get the high quality base oil, gasoline and diesel.

Recovery rate

Base oil: 85%~88 %

( index same as SN150~SN200)

Gasoline: about 3%

Diesel: about 3%-4%

Oil residue: 6%~8%

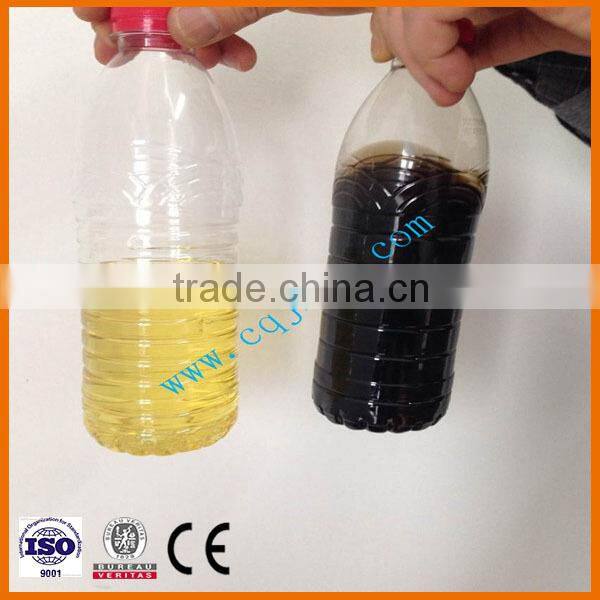

oil sample photo
