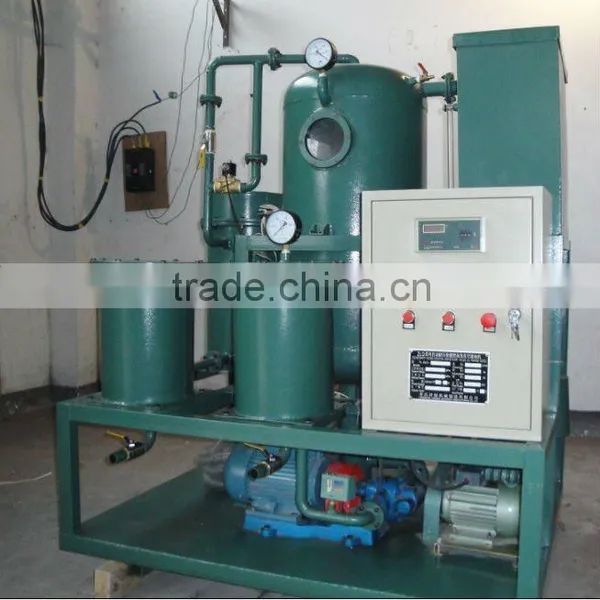

Help CenterChongqing ZL-70 Hige-efficient Vacuum Oil Purifier/insulation Oil Recycling Machine/transformer Oil Purifier
Related Products
-
Junneng ZL-50 Used Transformer Oil Recovering MachineUS$ 5,000 - 8,000MOQ: 1 Set -
China ZLC-300 Transformer Oil Recondition Plant With High QualityUS$ 5,000 - 30,000MOQ: 1 Set
-
ZLC-250 Used Transformer Oil Disposal System, Dewater, Degas and Removes the ImpuritiesUS$ 10,000 - 20,000MOQ: 1 Set
-
Chongqing ZLC-150 Oil Purifier for Oil ReconstitutedUS$ 19,000 - 30,000MOQ: 1 Set
-
ZLC Mobile Transformer Oil Reclamation MachineUS$ 15,000 - 50,000MOQ: 1 Set
vacuum oil purifier/insulation oil recycling machine/transformer oil purifier
-Usage:
It is widely used in power plant, hydropower station, electric power company, metallurgy, petrifaction, railroad, etc. It can purify unqualified transformer oil, mutual-inductor oil, switch oil and capacitor oil, also rapidly dehydrate, degasify and purify oil. Meanwhile, it also has the function of drying electric machine and injecting oil to electric equipment.
---Characteristics:
A: Super dehydration and degasification system. We adopt large cubage to rapidly separate water and gas from oil.
B: Reliable heating system to ensure heating and stable oil temperature.
C: Precise filtration system adopts high-grade filtration materials which has advantages of good mechanical intensity, multi-level filtration, gradually intensive and high filtration precision system.
D: Advanced pressure protection device and infrared control system can avoid the influence of wrong operation.
E: Integration has chain security protection. It can automatically control the oil pressure and oil level.
F: This machine can be used with BZ series of transformer oil discoloring device together to add the function of acid-removing, discoloring, uncombined carbon removing, and reducing damage.
Technical Parameters
Model |
ZL-20 |
ZL-30 |
ZL-50 |
ZL-70 |
ZL-100 |
ZL-150 |
ZL-200 |
|
Rated Flow( L/min) |
20 |
30 |
50 |
70 |
100 |
150 |
200 |
|
Vacuum Range |
-0.05— -0.099Mpa |
|||||||
Temperature Range |
60—80 Degree centigrade |
|||||||
Oil pump pressure |
0.05-0.3Mpa |
|||||||
Total Power (kw) |
25 |
25 |
32 |
32 |
42 |
50 |
60 |
|
Breakdown Voltage |
≥55kv |
|||||||
Power |
50HZ 380V |
|||||||
Working Noise |
65—80 db(A) |
|||||||
Cleanliness |
≤NAS 6 (NAS1638) |
|||||||
Water content in oil |
≤5ppm |
|||||||
Gas content in oil |
≤0.1% |
|||||||
Filter precision |
≤5um |
|||||||
Inlet (outlet) diameter(mm) |
33 |
33 |
48 |
48 |
60 |
60 |
60 |
|
|
Dimension(mm) |
L |
1100 |
1100 |
1200 |
1250 |
1300 |
1400 |
1550 |
W |
700 |
700 |
800 |
850 |
900 |
1000 |
1200 |
|
H |
1300 |
1350 |
1400 |
1450 |
1520 |
1600 |
1800 |
|
Attention: Dimension and weight will be changed with changing the technical specification.
If this product is not your required,We also have other products:
ZL series of high-efficient vacuum oil purifier
ZLA Two-Stage Vacuum Oil Purifier Series
ZLC Two-Stage Multi-Function Vacuum Oil Purifier Series
ZLQ Series automatic pressure test vacuum purifier
TZL Turbine Oil Purifier
TZL-B Turbine Oil Purifier
RZL Lubricating Oil Purifier
RZL-B Series Lubricating Oil Purifier
ZSC Engine Oil Purifier Series
TLA light fuel oil purifier series
JL Portable-type Oil Purifier
LY Plate Pressure Oil filtering Machine
JNC Waste engine oil and black oil regeneration diesel oil equipment
