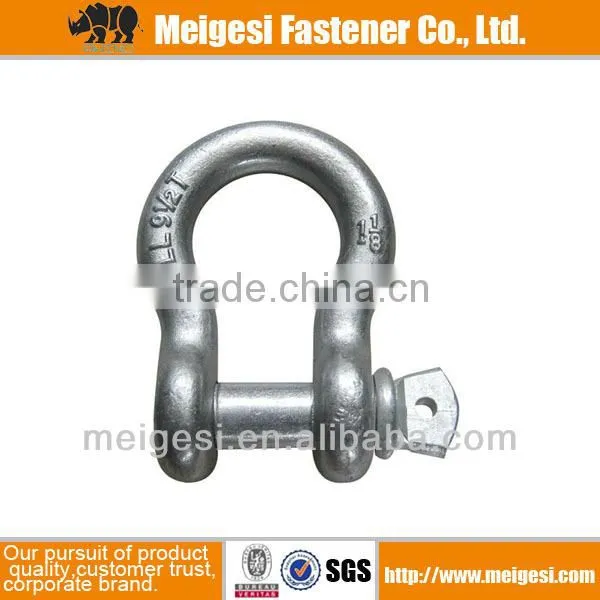

Help CenterStraight Shackle Rigging Equipment Silver US Type D Shackle
Related Products
-
China High Quanlity Rigging Hardware ProductsUS$ 0.01 - 2.5MOQ: 100 Pieces -
DIN 741 Hook Shackle Wire Rope Clips Rigging HardwareUS$ 0.01 - 2.5MOQ: 100 Pieces
-
US Type Drop Forged Wire Rope Clips Rigging HardwareUS$ 0.01 - 2.5MOQ: 1000 Pieces
-
DIN6899 B Type Hot Dipped Galvanized Wire Rope Thimble RiggingUS$ 0.01 - 1MOQ: 1 Bag
-
DIN580 Forged Lifing Galvanized Eye Bolt RiggingUS$ 0.015 - 1MOQ: 1 Pallet
Description
straight shackle
1. Size |
All size range |
2. Materials: |
Carbon steel-C1022A/C1022, alloy steel, stainless steel, copper; |
3. Surface Finishing: |
Blue Galvanized, White Zinc Galvanized, Black Oxide, Black/Grey phosphated treatment; |
4. Thread Type: |
coarse thread, twinfast thread or as customized type; |
5. Applications |
mainly used for fixing and connecting iron joists and recycled wooden products |
6. Packing Ways: |
1000pcs/small box, then in paper cartons; 25/50kgs dunnage bags and one ton dunnage bags also available. |
Shackle
S&LD-210 US Shackle
SWL from 05T- 55T
Alloy steel / forging / special heat treatment / high tension / longer endurance
S&L D-210 US Shackle
|
Model in |
Rated load ton |
A mm |
B mm |
D mm |
E mm |
F mm |
G mm |
K mm |
M mm |
weight mm |
| 1/4 | 0.50 | 12.0 | 7.9 | 6.4 | 23.9 | 15.5 | 22.4 | 40.4 | 35.1 | 0.05 |
| 5/16 | 0.75 | 13.5 | 9.7 | 7.9 | 29.5 | 19.1 | 26.2 | 48.5 | 42.2 | 0.08 |
| 3/8 | 1.00 | 16.8 | 11.2 | 9.7 | 35.8 | 23.1 | 31.8 | 58.4 | 51.6 | 0.13 |
| 7/16 | 1.50 | 19.1 | 12.7 | 11.2 | 41.4 | 26.9 | 36.6 | 67.6 | 60.5 | 0.20 |
| 1/2 | 2.00 | 20.6 | 16.0 | 12.7 | 45.0 | 30.2 | 41.4 | 77.0 | 68.3 | 0.27 |
| 5/8 | 3.25 | 27.0 | 19.0 | 16.0 | 58.7 | 38.1 | 50.8 | 95.3 | 84.8 | 0.57 |
| 3/4 | 4.75 | 31.8 | 22.4 | 19.1 | 69.9 | 46.0 | 60.5 | 115.1 | 100.8 | 0.19 |
| 7/8 | 6.50 | 36.6 | 25.4 | 22.4 | 81.0 | 53.1 | 71.4 | 135.4 | 114.8 | 1.43 |
| 1 | 8.50 | 43.0 | 28.7 | 25.4 | 93.7 | 60.5 | 81.0 | 150.9 | 128.8 | 2.15 |
| 11/8 | 9.50 | 46.0 | 31.8 | 28.7 | 103.0 | 68.3 | 90.9 | 172.2 | 142.0 | 3.06 |
| 11/4 | 12.0 | 51.6 | 35.1 | 31.8 | 115.1 | 76.2 | 100.1 | 190.5 | 156.5 | 4.11 |
| 13/8 | 13.5 | 57.2 | 38.1 | 35.1 | 127.0 | 94.1 | 111.3 | 210.3 | 173.7 | 5.28 |
| 11/2 | 17 | 60.5 | 41.4 | 38.1 | 136.6 | 91.9 | 122.2 | 230.1 | 186.7 | 7.23 |
| 13/4 | 25 | 73.2 | 50.8 | 44.5 | 162.1 | 106.4 | 146.1 | 278.6 | 230.6 | 12.13 |
| 2 | 35 | 82.6 | 57.2 | 50.8 | 184.0 | 122.2 | 171.5 | 311.9 | 262.6 | 19.19 |
| 21/2 | 55 | 105.0 | 69.9 | 66.5 | 238.3 | 144.5 | 203.2 | 376.9 | 330.2 | 32.55 |
♣ always low price good quality
Product
♣ If you have any needs,pls feel free to contact me
by the following contacts:
YUYAO MEIGESI FASTENER CO.,LTD
Ningbo Rhino Import & Export Co.,Ltd
Add:Room 1701-1702, Guomao Mansion,
700 Yangming West Rd, Yuyao, Zhejiang,China
website:
Tel:+86-0574-6285 6895/6897,
Fax:+86-0574-6285689
Skype: yuan.yidan
Sale Manager : Eva yuan
Send Inquiry to This Supplier
