12v dc Power Window Motor

Application:

Sanxing FD5 Linear Actuator gives you a full 1500N of force combined with versatile stroke lengths. Electric model, a FD5 actuator is ideal for many projects:

•Marine applications

•Solar tracker

•Hobbies

•Home and office automation

•Car application

•Seat adjustment mechanics

•ATV throttle systems

•Vent control

•Satellite and aerospace applications

•Food and beverage industry automation

Description:

Sanxing FD5 Linear Actuators are very small in size, powerful, quite, and easy to install. Each 12/24VDC actuator comes with 2 wires (positive and negative), internal limit switches (non-adjustable) and mounting holes on each end.

Our FD5 linear actuators are designed for smaller projects and applications, capable of handling low to medium force loads. These actuators are ideal for use in applications which allow only limited space and can be used in both indoor and outdoor settings. Our micro linear actuator is popular as window motor .

Specifications:

Product show:

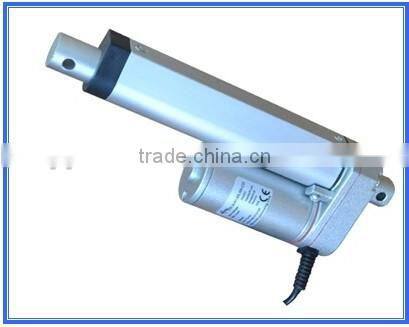

FD5 Linear Actuator

The actuator is the unit, which converts the operating voltage from the control box into a linear movement.

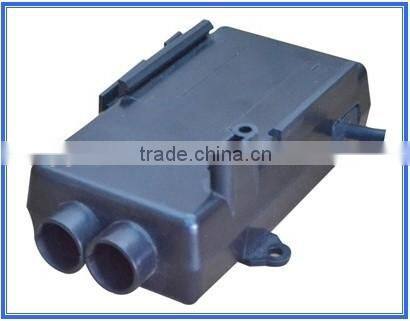

Control Box CB1B ( Change AC to DC ) -------- Control 1 Linear Actuator

The control box is the heart of the system and connects the outlying units ( actuators and handsets ). It is able to convert control signals from the handset into operating voltage for the actuator. Using a control box is the simplest way to set up and implement the actuator into your application, no tools or wiring required.

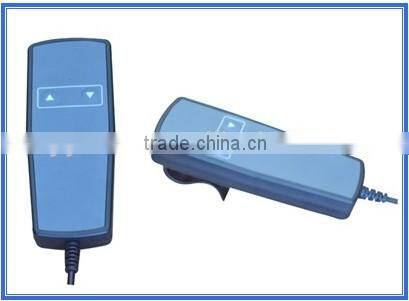

Wired Handset / Control Switch ( HA2 ) --------Control 1 Linear Actuator

The handset is the unit to be used when you want the SANXING system ( SANXING actuator + SANXING control box + SANXING handset ) to perform a movement. The handset has the up/down position control. It determines whether the control box will make the actuator move in or out.

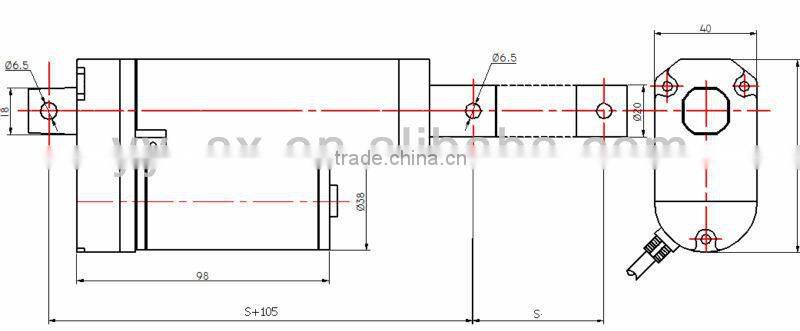

Drawing:

Working Principles / Connection of SANXING System:

* Don't connect the main cable until all actuators and handsets have been connected to the control box.

* Check that all plugs are will connected and firm pushed into the connection plug.

* The actuator can be operated by pushing a button on the handset. Use only one button at a time.

About Us:

Yuyao Sanxing Mechanical & Electrical Technology Co., Ltd. locates in No. 108, Zhenxing West Road, Yuyao, Zhejiang, China. Our company was established in 2008 and a joint venture with Taiwanese. Our factory covers 1,400 meter square. We specialize in the research, development and manufacturing of Linear Actuator, Control Box and Handset. Products are widely used in electric sofas, massage chairs, dental chairs, electric medical beds, traction beds, television movement counters, furniture and other movements need linear motion implementing agencies of the occasion. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.

In addition, we have obtained CE and ROHS certificates. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Spain, France, Turkey, Poland, Canada and USA. We also welcome OEM and ODM orders.

We design the styles according to the customers’ target price, and we have established our quality control system to meet our customers’ request. The products we make are very cost-effective and quality guarantee.

Our purpose is your happiness is our success.

Product Certificates :

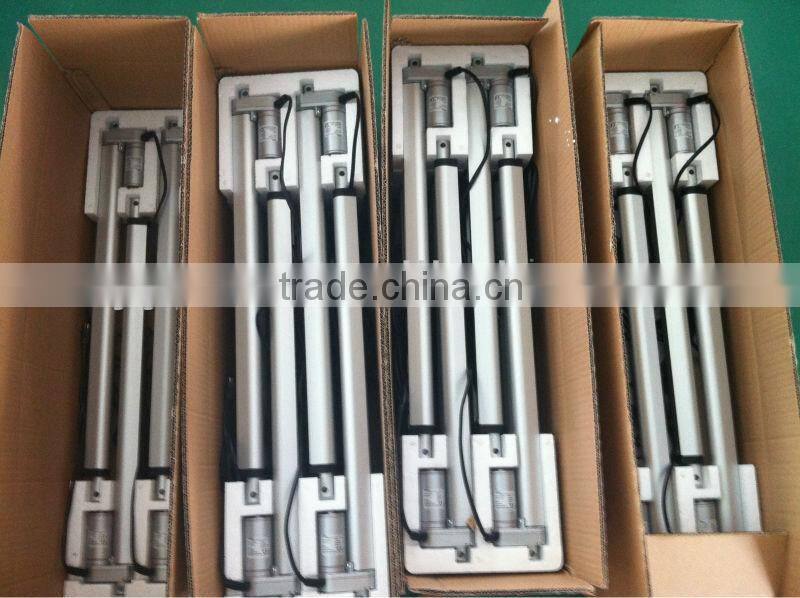

Packing & Delivery:

* Normal cartons, have inner packings, generally 12pcs a carton.

* About 3-7 days for the sample; About 20-30 days for the bulk orders.

After Sale:

The warranty period is 1 year after selling the products.

Contact Info:

Welcome to contact us, we will give you our best service, waiting for you! : )
