Help Center12V Small Linear Actuator for Solar Tracker
Related Products
-
Solar Tracker Linear ActuatorNegotiableMOQ: 10 Units -
400mm Single Drive for Solar Energy SystemNegotiableMOQ: 10 Units
-
Micro Linear Motor Actuator for Window BlindsNegotiableMOQ: 10 Units
-
Electric 12v Linear ActuatorUS$ 16 - 56MOQ: 10 Units
-
24V dc Electric Motor for Fire Protection EquipmentNegotiableMOQ: 10 Units
Specifications
linear actuator for solar tracker1.High quality
2.waterproof
3.Small dimension
4.Excellent after-sale service
linear actuator for solar tracker- FD5
The linear actuators are widely used in automatic doors, windows, cupcoard, satellite antenna, wheel chairs, hospital beds, TV lift, furniture and other movements.
Specifications
Model |
FD5 |
Input voltage |
12V/24V DC |
Load capacity |
Max 1500N (push) |
Speed |
5.7 ~ 25mm/s (no load) |
Stroke |
25mm ~ 1000mm (Customized Stroke Available) |
Duty cycle |
25% |
Limit switches |
Built-in, factory preset |
Operation temperature |
-25°C ~ +65°C |
Protection class |
IP65 |

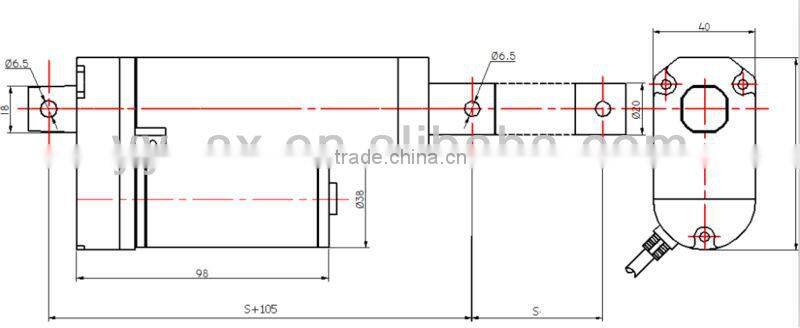

Minimum installation distance |
≥stroke+105mm |

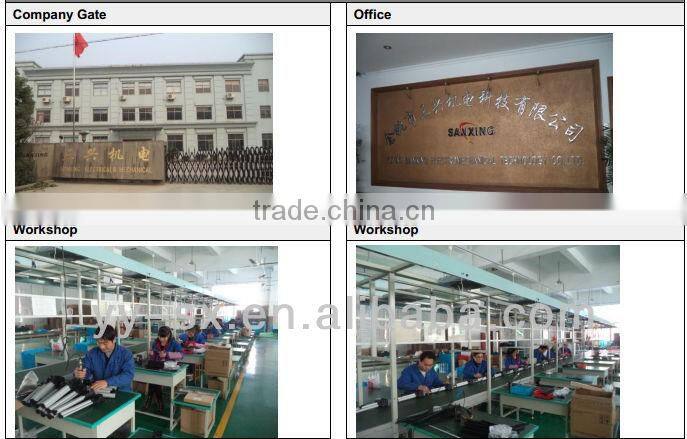

Yuyao Sanxing Mechanical & Electrical Technology Co., Ltd. locates in No. 108, Zhenxing West Road, Yuyao, Zhejiang, China. Our company was established in 2008 and a joint venture with Taiwanese. Our factory covers 1,400 meter square. We specialize in the research, development and manufacturing of Linear Actuator, Control Box and Handset. Products are widely used in electric sofas, massage chairs, dental chairs, electric medical beds, traction beds, television movement counters, furniture and other movements need linear motion implementing agencies of the occasion. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
In addition, we have obtained CE and ROHS certificates. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Spain, France, Turkey, Poland, Canada and USA. We also welcome OEM and ODM orders.
We design the styles according to the customers’ target price, and we have established our quality control system to meet our customers’ request. The products we make are very cost-effective and quality guarantee.
Our purpose is your happiness is our success.
Dear friend, we are waiting for you.
