Application:
24V Electric Linear Actuator Servos are widely used in hospital care bed, electric sofas, massage chairs, dental chairs, electric medical beds, traction bed, television movements counters, furniture and other lifting systerms.
Description:
The FD1 linear actuator is a powerful actuator designed for hospital care bed . The actuator is developed for both push and pull applications and has a very robust construction.
The FD1 electric actuator is equipped with a plug for connection of an exchangeable cable with a control box / power supply. This gives allows standard actuators to be combined with different cable lengths.
Specifications:
Model |
FD1 |
Input voltage |
12V/24V/110V DC |
Load capacity |
Max 6000N (push) / 4000N (pull) |
Speed |
4 ~ 40mm/s (no load) |
Stroke - moving distance (S) |
50mm ~ 800mm (Customized Stroke Available) |
Duty cycle |
10% |
Limit switches |
Built-in, factory preset |
Operation temperature |
-20°C~ +40°C |
Noise decibel |
≤48 Db |
Protection class |
IP44 |
Minimum installation distance (A) |
≥stroke+160mm |

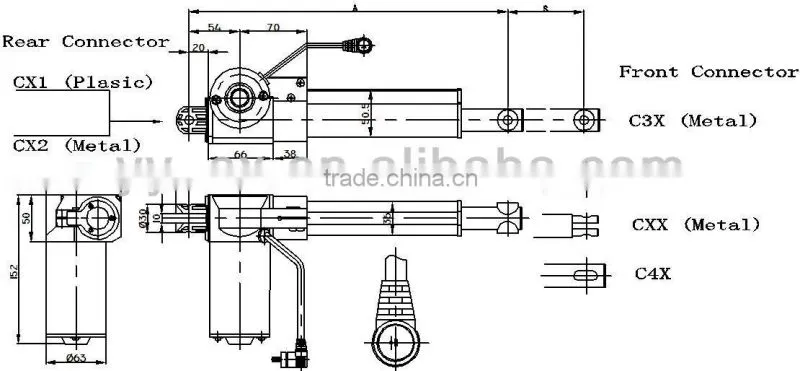

Drawing:

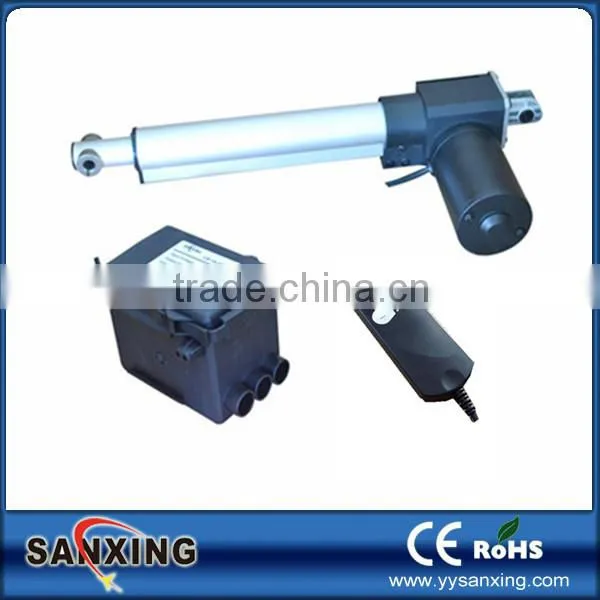

Product show:
FD1 Linear Actuator
The actuator is the unit, which converts the operating voltage from the control box into a linear movement.
Control Box CB1A ( Change AC to DC ) / Transformer--------Control 1 Linear Actuator
The control box is the heart of the system and connects the outlying units ( actuators and handsets ). It is able to convert control signals from the handset into operating voltage for the actuator.
Wired Handset / Control Switch ( HE ) --------Control 1 Linear Actuator
The handset is the unit to be used when you want the SANXING system ( SANXING actuator + SANXING control box + SANXING handset ) to perform a movement. It determines whether the control box will make the actuator move in or out.

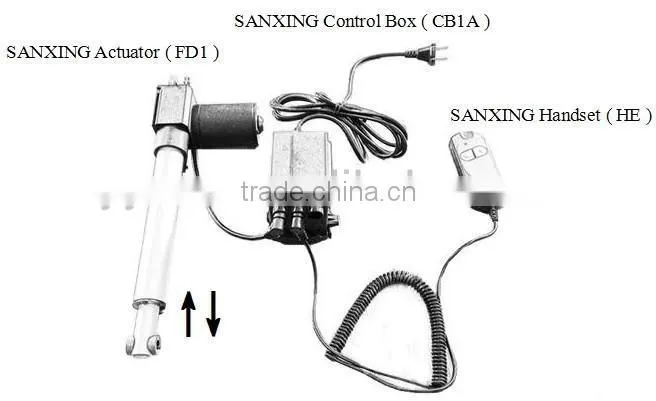

Working Principles / Connection of SANXING System:
* Don't connect the main cable until all actuators and handsets have been connected to the control box.
* Check that all plugs are will connected and firm pushed into the connection plug.
* The actuator can be operated by pushing a button on the handset. Use only one button at a time.
About Us
Yuyao Sanxing Mechanical & Electrical Technology Co., Ltd. locates in No. 108, Zhenxing West Road, Yuyao, Zhejiang, China. Our company was established in 2008 and a joint venture with Taiwanese. Our factory covers 1,400 meter square. We specialize in the research, development and manufacturing of Linear Actuator, Control Box and Handset. Products are widely used in electric sofas, massage chairs, dental chairs, electric medical beds, traction beds, television movement counters, furniture and other movements need linear motion implementing agencies of the occasion. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
In addition, we have obtained CE and ROHS certificates. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Spain, France, Turkey, Poland, Canada and USA. We also welcome OEM and ODM orders.
We design the styles according to the customers’ target price, and we have established our quality control system to meet our customers’ request. The products we make are very cost-effective and quality guarantee.
Product Certificates :
Packing:
* Normal cartons, generally 4 sets a carton.
After Sale:
The warranty period is 1 year after selling the products.
Contact Info:
Welcome to contact us, we will give you our best service, waiting for you! : )
