Home > Products > Application fields > Medical Bed Actuators 24v DC, Electric Hospital Bed Linear Actuator
Medical Bed Actuators 24v DC, Electric Hospital Bed Linear Actuator
- 20000 Unit / Units per Month
- Ningbo Port
- T/T Credit Card
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | Sanxing | Model Number: | FD1 |
Product Description
Application:
Sanxing FD1 linear actuators are industry-certified, easy-to-use models available with medium to high force capabilities. These versatile actuators can be used across a wide range of applications and industries. They are widely used in furniture parts, medical equipments, consumer products, and hobby design. Our customers have found them useful in:
•Robotics
•Home and office automation
•Automotive automation
•Manufacturing operations such as textiles
•Aerospace applications
•Agriculture
•and much more
Description:
Sanxing FD1 linear actuators are small in size with ability to lift from small to high force. Each unit comes with 2 wires, internal limit switches (non-adjustable) and mounting hole on each end. The electric actuators are developed for both push and pull applications and have a very robust construction. They are very popular in furniture, medical equipment, consumer products, and hobby design. For example, used as electric hospital bed linear actuator. They can be used at the head and the foot of the bed, to lift the bed up and down.
Sanxing FD1 linear actuators, 12/24v dc motors are equipped with a plug for connection of an exchangeable cable with a control box / power supply. This gives allows standard actuators to be combined with different cable lengths.
Specifications:
Model | FD1 |
Input voltage | 12V/24V/110V DC |
Load capacity | Max 6000N (push) / 4000N (pull) |
Speed | 4 ~ 40mm/s (no load) |
Stroke (S) | 50mm ~ 800mm (Customized Stroke Available) |
Duty cycle | 10% |
Limit switches | Built-in, factory preset |
Operation temperature | -20°C~ +40°C |
Noise decibel | ≤48 Db |
Protection class | IP44 |
Minimum installation distance (A) | ≥stroke+160mm |

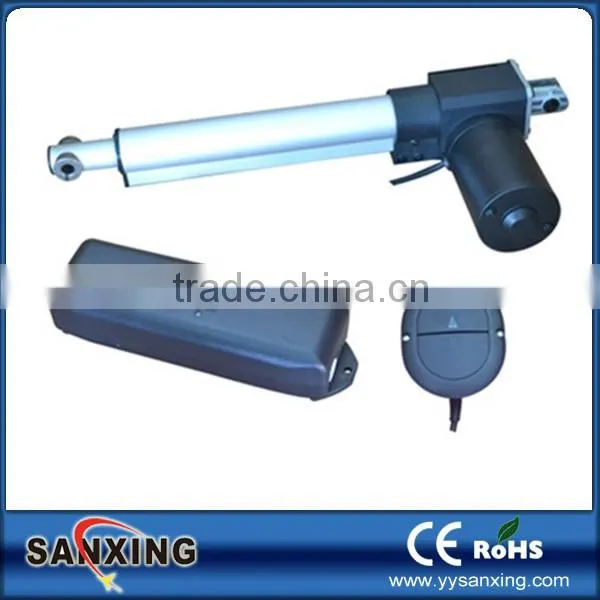

Product show:
FD1 Linear Actuator
The actuator is the unit, which converts the operating voltage from the control box into a linear movement.
Power Supply CBDY-2 ( Change AC to DC ) / Power Adapter -------- Control 1 Linear Actuator
The AC to DC power supply is designed for customers who want to use AC power but do not wish to use our control box to control the actuator. This power supply can be used in conjunction with our HC, HD or HG wired switches or any other control device that requires 24VDC power.
Wired Handset / Control Switch ( HC ) --------Control 1 Linear Actuator
The handset is the unit to be used when you want the SANXING system ( SANXING actuator + SANXING power supply + SANXING handset ) to perform a movement. The handset has the up/down position control. It determines whether the actuator will move in or out.
Drawing:
Working Principles / Connection of SANXING System:
* Don't connect the main cable until the power supply and handset has been connected to the actuator.
* Check that all plugs are will connected and firm pushed into the connection plug.
* The actuator can be operated by pushing a button on the handset. Use only one button at a time.
About Us:
Yuyao Sanxing Mechanical & Electrical Technology Co., Ltd. locates in No. 108, Zhenxing West Road, Yuyao, Zhejiang, China. Our company was established in 2008 and a joint venture with Taiwanese. Our factory covers 1,400 meter square. We specialize in the research, development and manufacturing of Linear Actuator, Control Box and Handset. Products are widely used in electric sofas, massage chairs, dental chairs, electric medical beds, traction beds, television movement counters, furniture and other movements need linear motion implementing agencies of the occasion. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
In addition, we have obtained CE and ROHS certificates. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Spain, France, Turkey, Poland, Canada and USA. We also welcome OEM and ODM orders.
We design the styles according to the customers’ target price, and we have established our quality control system to meet our customers’ request. The products we make are very cost-effective and quality guarantee.
Our purpose is your happiness is our success.
Product Certificates :
Packing & Delivery:
* Normal cartons, have inner packings, generally 4 sets a carton.
* About 1-7 days for the sample; About 10-30 days for the bulk orders.
After Sale:
The warranty period is 1 year after selling the products.
Contact Info:
Welcome to contact us, we will give you our best service, waiting for you! : )
