industrial wood chippers and shredders/2015 drum type wood chipper
Introduction of industrial wood chippers and shredders
Drum wood chipper series is the special equipment, production of wood products are widely applied in particieboard factory, and the high density fiberboard,stubble, biomass powder plant,wood factory industries and manufacturer of preparation before production units.
Raw material for industrial wood chippers and shredders
This machine is designed with high precision, simple operation, easy to use,can chip all kinds of big logs.
Working principle for industrial wood chippers and shredders
put the wood into machine by feeding hole and wood is high-speed rotating when contacting with knife roller.the final wood chip is discharged by high speed steam.
Equipment structure of industrial wood chippers and shredders
This equipment mainly consists of main parts such as: machine body, knife roller,feeding unit, hydraulic system etc.
Data of industrial wood chippers and shredders
| Model | BX-215 | BX-216 | BX-218 |
| Feeding size | 160*400mm | 230*500mm | 300*680mm |
| knife | 2 | 2 | 2 |
| Speed of knife roll | 592r/min | 590r/min | 650r/min |
| Max cutting diameter | 160*400mm | 230*500mm | 300*600mm |
| Wood chip size | 30mm | 30mm | 30mm |
| Capacity | 3-5t/h | 8-10t/h | 14-18t/h |
| Motor power | 45kw | 55kw | 100kw |
| Feedingroll power | 2.2-3 | 3-4 | 4-5 |
| Oil pump power | 1.5*1kw | 1.5*1kw | 1.5*1kw |
| Machine weight | 2990kg | 5030kg | 7000kg |
| Machine size | 1470*1550*970mm | 1800*1900*1210mm | 2200-2150*1500mm |
| Conveyor power | 3kw | 3kw | 3kw |

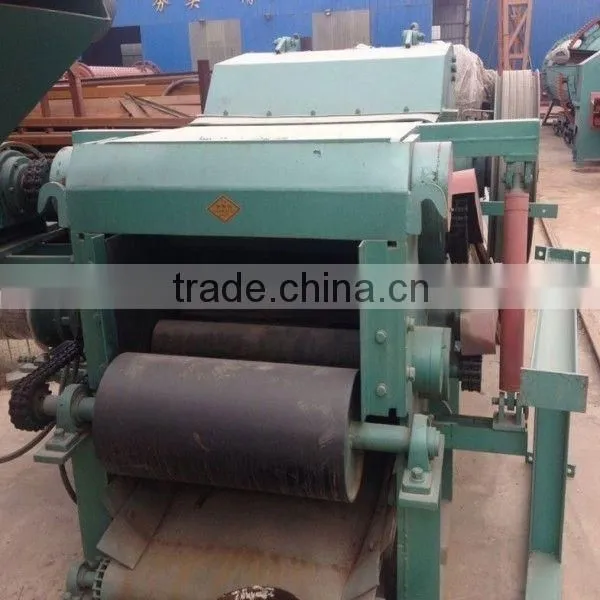

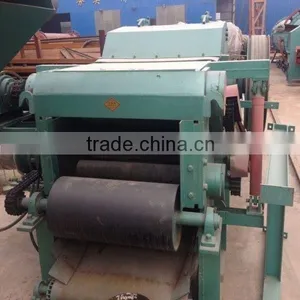

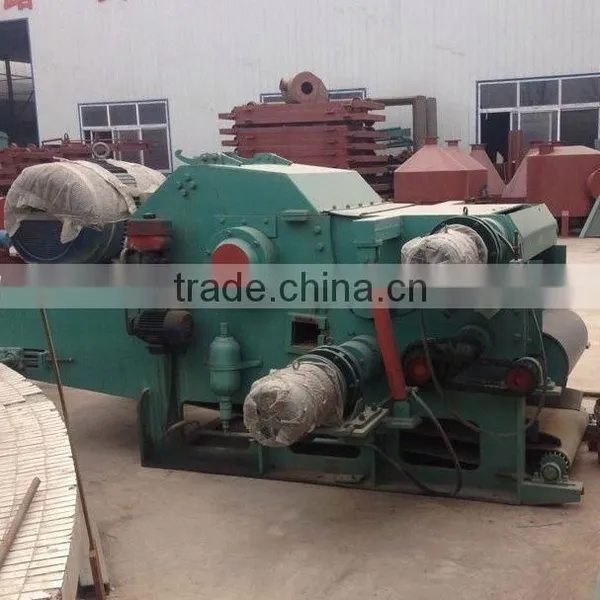

Machine in workshop:

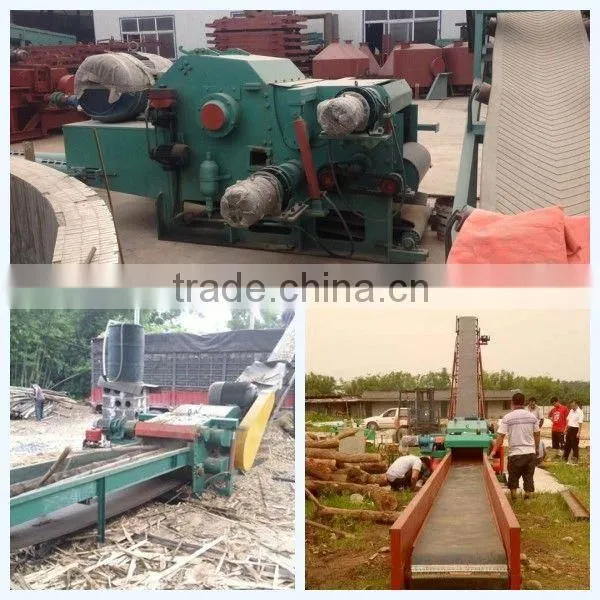

Working site:
Customer's visiting and transporting
