CE Approved Factory Price Fish Feed Pellet Machine/fish Feed Production Plant

CE Approved Factory Price Fish Feed Pellet Machine/fish Feed Production Plant photo-1

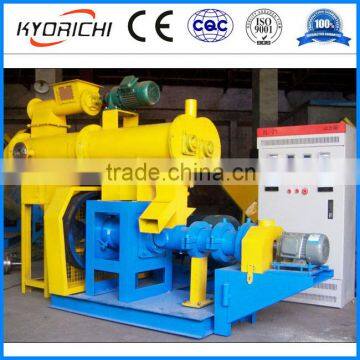

CE Approved Factory Price Fish Feed Pellet Machine/fish Feed Production Plant photo-2

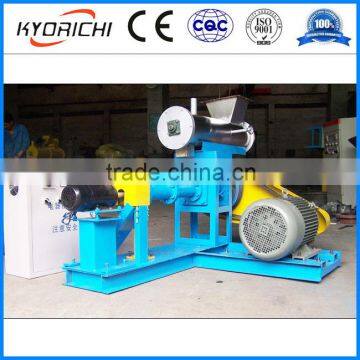

CE Approved Factory Price Fish Feed Pellet Machine/fish Feed Production Plant photo-3

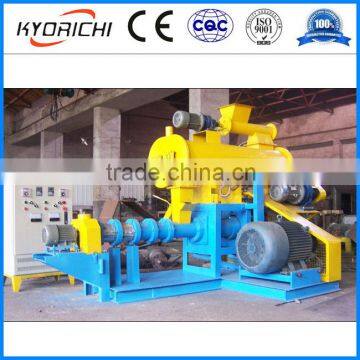

CE Approved Factory Price Fish Feed Pellet Machine/fish Feed Production Plant photo-4

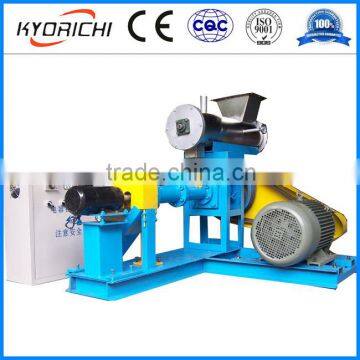

CE Approved Factory Price Fish Feed Pellet Machine/fish Feed Production Plant photo-5
CE Approved Factory Price Fish Feed Pellet Machine/fish Feed Production Plant photo-6
US$ 2,000 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
Kyorichi
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Henan, China
Brand Name Kyorichi
Model Number DSP60-B
Type Other, floating fish feed pellet machine
Voltage 380v or can be customized
Power(W) 22-220kw
Dimension(L*W*H) 1470x1020x1250mm
Weight 2000 kg
Certification CE/GOST
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

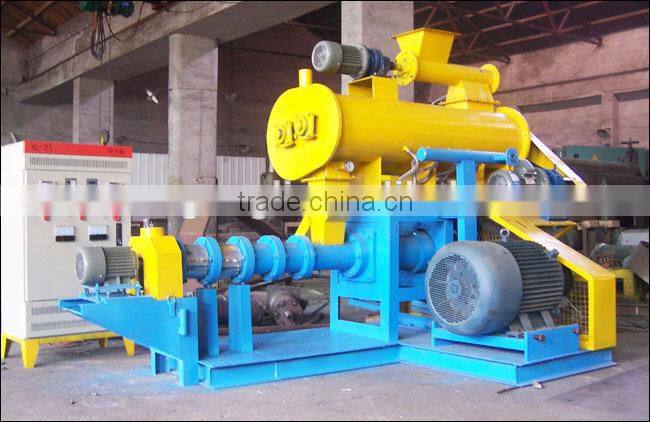

CE Approved Factory Price fish feed pellet machine/fish feed production plant

CE Approved Factory Price fish feed pellet machine/fish feed production plant

Product Description

1.Features of floating fish feed pellet machine

Dry type fish feed extruder is widely used for producing variety materials into high-grade aquatic feed pellets for fish, catfish, shrimps, crab etc. The final products have unique shape and good taste, high nutrition and smooth textures. For feeds of fish and shrimp, the floating time in water can be adjusted by the extrusion degree adjustment. This dry type floating fish feed machine is an ideal for small and medium fish farm holders or feed processing plant.

CE Approved Factory Price fish feed pellet machine/fish feed production plant

2.Advantages of floating fish feed pellet machine
1. This floating fish feed pellet machine is widely used for producing floating feed pellets of all kinds of aquatic animal.
2. Advanced technology and humanized design ensures easy operation and reliable performance.
3. High efficiency, low power consumption
4. Screw sleeve of this small fish food extruder adopts enchase alloy steel strip structure, which guarantees long service life.
5. Different moulds can be chosen to make pellets with different diameters and shapes.
6. Feed pellets dia. Is 0.9-15mm.

CE Approved Factory Price fish feed pellet machine/fish feed production plant

3. Floating fish feed pellet machine advantages
1.Rice Dust: contain about 10-14% of protein and also contain vitamin B1, B2, B6 and small quantity of enzyme.
2.Mustard Cake: Mix maximum 40% of cake in the fish feed. But don’t use dry cake more than 20%. Mustard cake contain 30-32% protein. It also contain a high rate of fat.
3.Wheat Chaff: contain fiber, control many types of fish diseases.
4.Maize: contain protein, carbohydrate, fat, vitamin A and E.
5.Cotton Seeds: contain about 54% protein. It is a better ingredients for supplementary fish feed.
6.Fish Powder: easily digestible to fish. Fishmeal contain about 55-60% protein.
7.Bone Powder: very necessary for building fish-bone.
8. Innards : very suitable and ideal feed for catfish. It contain 52% protein.

4.Technical Parameters of Floating fish feed pellet machine

Mode

Capacity (t/h)

Main Power
(kw)

supply of raw Power (kw)

screw diameter
(mm)

Cutting power (kw)

Conditioning power (kw)

DSP60-B

0.18-0.2

15

0.4

Φ60

0.4

0.75

DSP70-B

0.25-0.30

18.5

0.6

Φ70

0.6

0.75

DSP80-B

0.35-0.40

22

1.1

Φ80

0.8

1.1-1.5

DSP90-B

0.50-0.60

37

1.1

Φ90

1.1

2.2

DSP120-B

0.70-0.80

55

1.1

Φ120

1.5

2.2-3.0

DSP135-B

1.0-1.2

75

1.5

Φ135

2.2

3.0-4.0

DSP160-B

1.8-2.0

90

2.2

Φ155

2.2-3.0

4.0-5.5

DSP200-B

3.0-4.0

132

2.2

Φ195

3.0-4.0

5.5

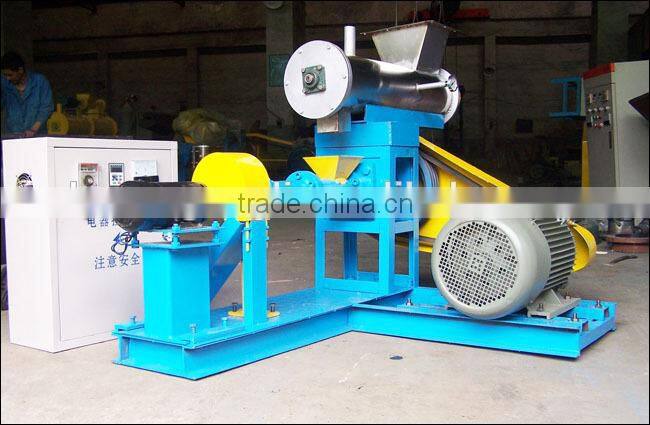

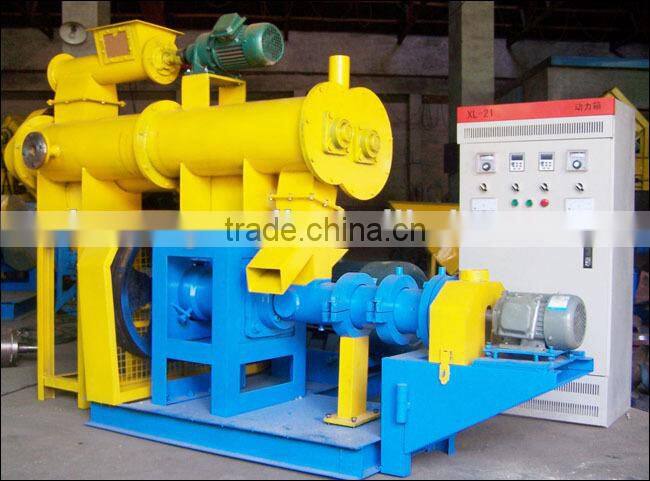

5.Detailed pictures of Floating fish feed pellet machine

CE Approved Factory Price fish feed pellet machine/fish feed production plantCE Approved Factory Price fish feed pellet machine/fish feed production plantCE Approved Factory Price fish feed pellet machine/fish feed production plant



Raw material

♣     Raw material of Floating fish feed pellet machine :

 Soybean, soybean meal, soybean oil, corn, fish meal, fish oil, rapeseed meal, meat meal, rapeseed meal, cotton, wheat,etc

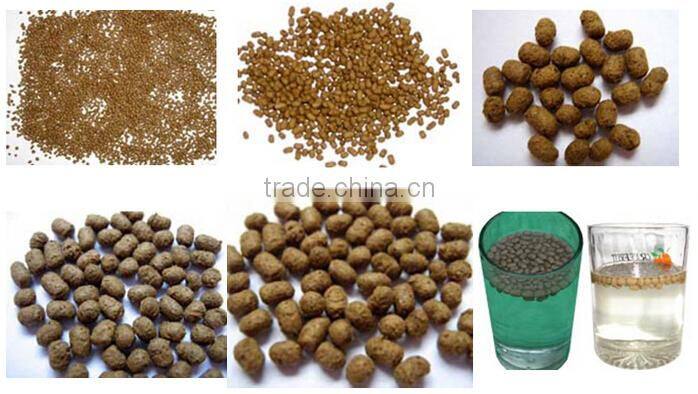

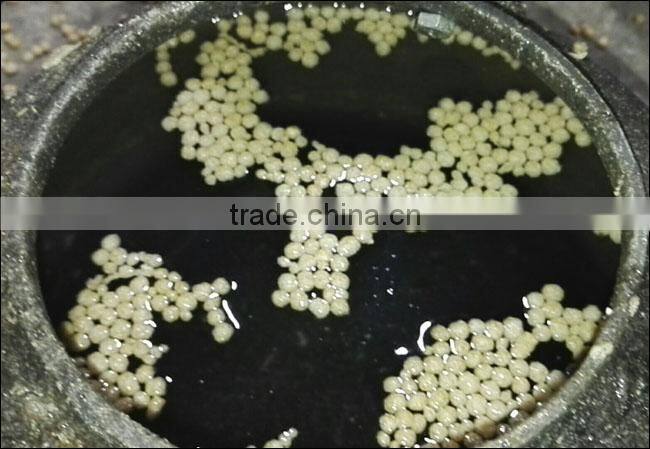

♣     Final product of  Floating fish feed pellet machine:

CE Approved Factory Price fish feed pellet machine/fish feed production plant





Whole line process

 ♣    Related production line of  Floating fish feed pellet machine

CE Approved Factory Price fish feed pellet machine/fish feed production plant



CE Approved Factory Price fish feed pellet machine/fish feed production plant

Packaging & Shipping

CE Approved Factory Price fish feed pellet machine/fish feed production plant





Welcome you to enquiry directly!!
