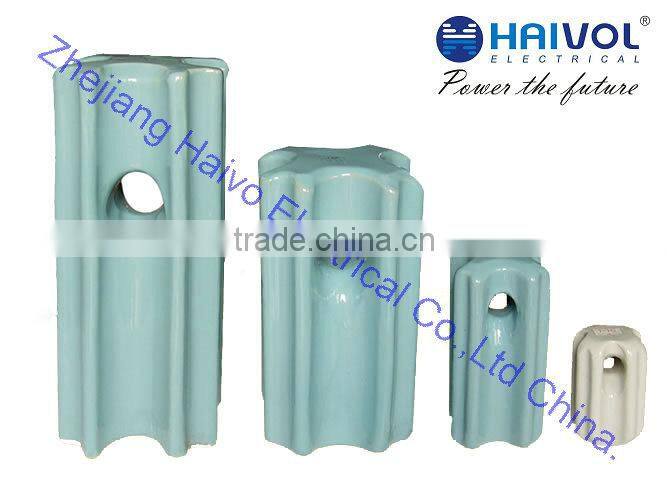

ANSI 54 Series Stay Porcelain Insulators
US$ 2.5 - 10
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
HAIVO
Model Number:
54-1
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Voltage Line Disc Type Suspension Porcelain Insulators(ANSI52)US$ 2.5 - 10MOQ: 500 Pieces -
57 -21 Post Ceramic Insulators(ANSI)US$ 2 - 10MOQ: 500 Pieces
-
HOT!Pin Type Porcelain Insulators (ANSI 56 Series)US$ 2.5 - 10MOQ: 1000 Pieces
-
ANSI 57 Series Post Porcelain InsulatorsUS$ 2.5 - 10MOQ: 1000 Pieces
-
High Voltage Line Disc Type Suspension Porcelain InsulatorsUS$ 2.5 - 10MOQ: 1000 Pieces
Place of Origin
Zhejiang, China
Brand Name
HAIVO
Model Number
54-1
Type
Insulating Ceramics
Material
Other, porcelain, Porcelain
Specifications
ANSI 54 series Strain Porcelain Insulators1)creepage distance:41/47/57/76mm
2)Certificates:ISO9001:2008
3)good quality
ANSI 54 series Strain Porcelain Insulators
•Material: Porcelain
•standard:ANSI
•class standard:54-1/54-2/54-3/54-4
•specification:
|
Cat NO
|
A1049 |
A1050 |
A1051 |
A1052 |
||

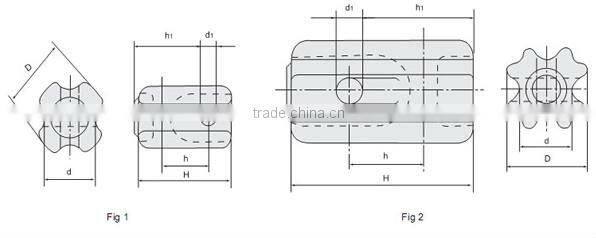

Fig |
1 |
1 |
1 |
2 |
||
Class NSI |
54-1 |
54-2 |
54-3 |
54-4 |
||
Main Dimensions (mm) |
H |
88 |
108 |
140 |
171 |
|
h |
44 |
57 |
79 |
69 |
||
h 1 |
64 |
76 |
103 |
114 |
||
D |
64 |
73 |
86 |
89 |
||
d |
44 |
54 |
60 |
60 |
||
d 1 |
16 |
22 |
25 |
25 |
||
Mechanical failing load (kn) |
44 |
53 |
89 |
89 |
||
Creepage Distance(mm |
41 |
47 |
57 |
76 |
||
Flashover Voltage |
Power-frequency |
Dry |
25 |
30 |
35 |
40 |
Wet |
12 |
15 |
18 |
23 |
||
Weight(kg |
0.43 |
0.63 |
1.2 |
2 |
||
