Product Introduction

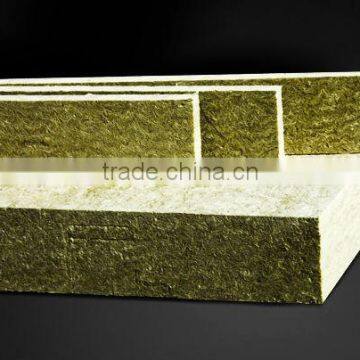

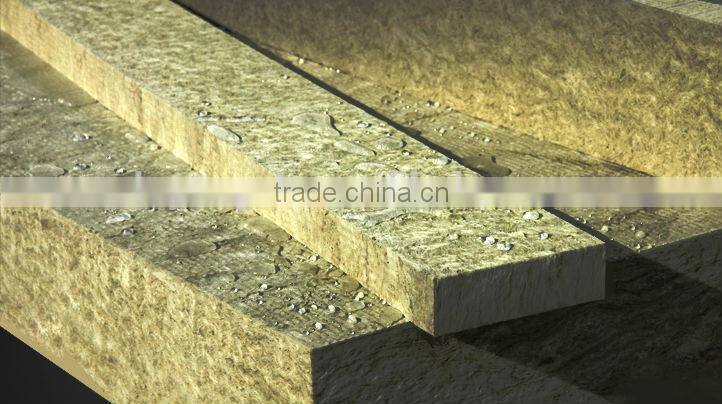

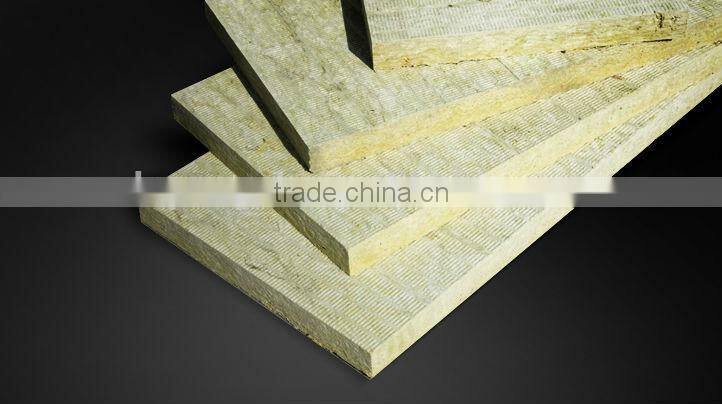

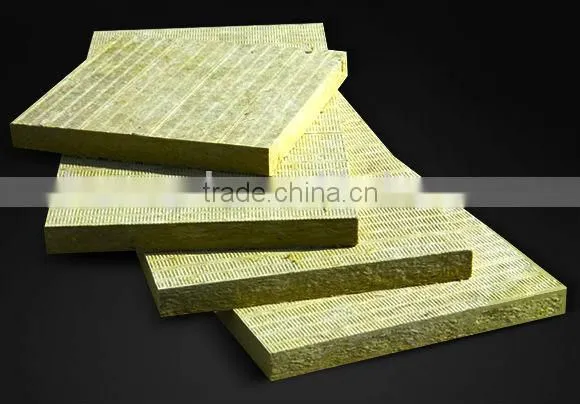

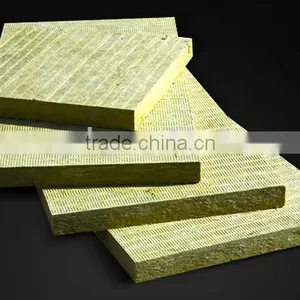

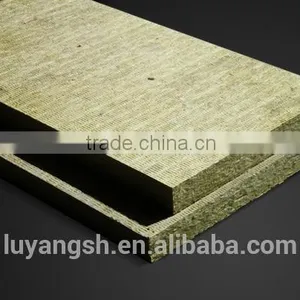

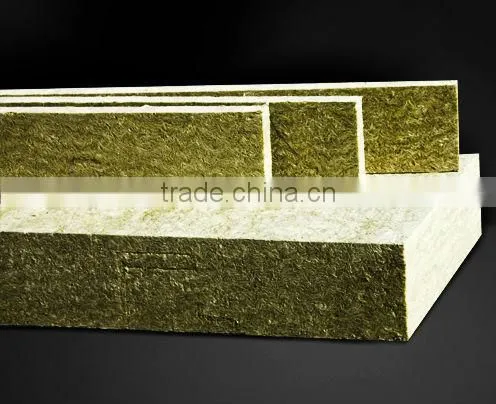

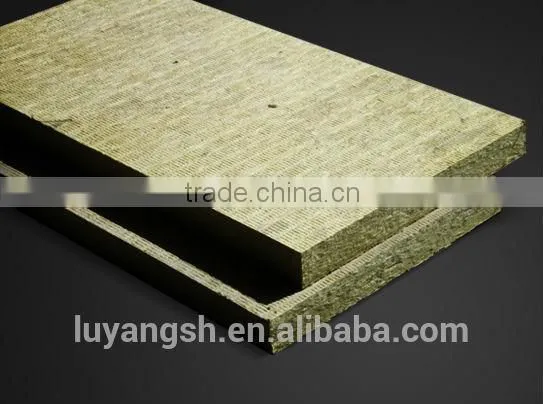

Rock wool roof insulation board is specifically designed for industrial and civil roof flattop roofing system, requesting the function of insulation, sound-absorbing noise reduction and fire prevention function (especially for flexible water-proof roof system). It has excellent resistance to compression, high-load and anti-aging and weathering properties. It can completely carry the weight of workers when walking for construction, maintenance, and also can ensure roofing system with the long-term, stable, insulation, sound-absorbing functions. It is often used in fire demanding automotive plant, electronics factory, cigarette factory, garment factory, pharmaceutical factory and other factories.
Specification
Product code |
Rock wool roof insulation board | |
Density(kg/m³) | 160 | 180 |
Thickness(mm) | 50-100 | |
Size(mm) | 1200×600×(50-100) | |
Technical Parameters
Properties | Unit | Density | Standards | |
160 | 180 | |||
Thermal conductivity (average temperature25°C) | W/(m.k) | ≤0.040 | GB/T 25975 | |
Combustion performance
| - | Grade 1 non-combustion | GB/8624 | |
Compression strength (10% deformation) | kPa | ≥60 | GB/T 25975 | |
Point load(compress 5mm) | N | ≥500 | EN 12430 | |

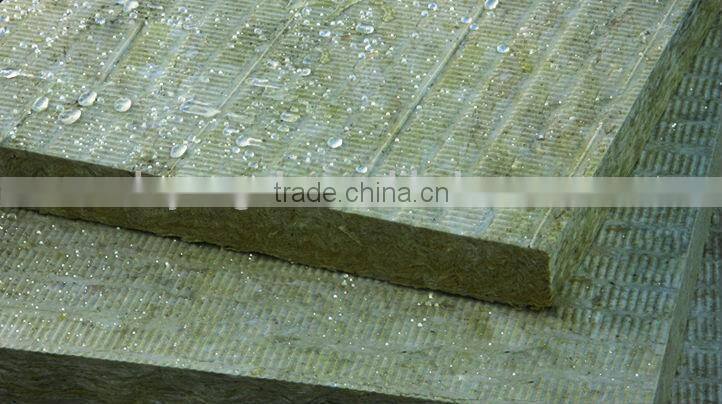

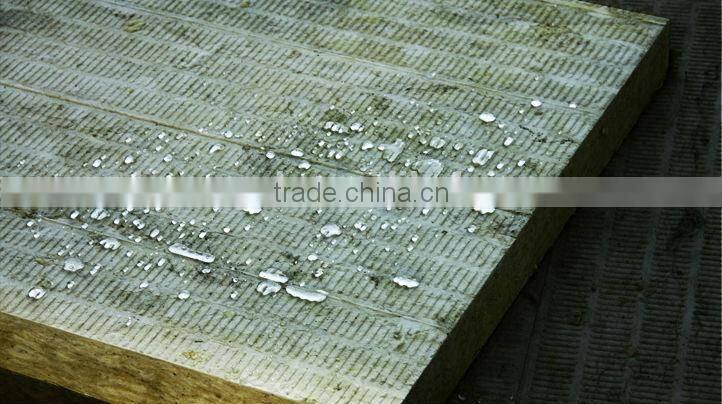

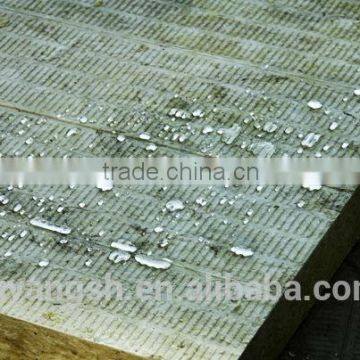

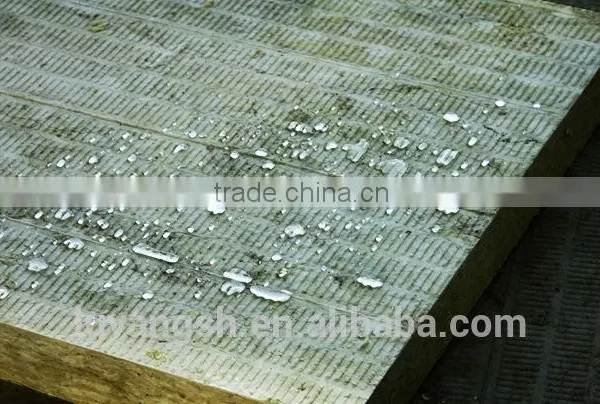

Hydrophobic | % | ≥98.0 | GB/T 25975 | |
Quality hygroscopicity | % | ≤1.0 | GB/T 25975 | |
Melting temperature | °C | >1000 | GB/8624 | |
Acidity ratio | -- | ≥1.8 | GB/T 5480 | |
Application
BST rock wool roof insulation board is often used in steel structure roofing structural system which has a high request for compressive strength. Often used as thermal insulation layer and support layer , together with flexible waterproofing material and breathable layer to form a roof thermal insulation and waterproofing system and. Flexible waterproofing roof is often used in airports ,railway station, bus station, industrial workshop, large stores, gymnasium and other steel structure or concrete flat roof structure waterproof system.
Products need to be stored indoor, outdoor storage is required tarps covering.
