Insulation Fire Brick

Shandong Luyang Energy-Saving Materials Co., Ltd.
Insulation Fire Brick thumbnail-1
Insulation Fire Brick thumbnail-2
Insulation Fire Brick thumbnail-3
Insulation Fire Brick photo-1
Insulation Fire Brick photo-2
Insulation Fire Brick photo-3
US$ 767 - 850 MOQ: 1 Ton
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Shape:
Brick
Material:
Mullite
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Shape Brick
Material Mullite
SiO2 Content (%) 55
Al2O3 Content (%) 42
SiC Content (%) 50
Model Number LYMZ-23A/23B
Brand Name LUYANG

LUYANG insulating firebrick



coupled with high insulating efficiency expands the extensive applications of IFB in high-grade



refractory powder and materials in good purity.



During the process of production ,organic and multiple filling materials are injected according to the



required proportion ,the brick is compressed in vacuum and sintered under high temperature.





 Low thermal conductivity



High purity and low iron content



Good thermal resistance with direct access to fire



Superior thermal shock resistance



Accurate dimension and easy cutting



Insulation fire brick

Cracking Furnace



Conversion Furnace



Heating equipment



Refining equipment



Reproduction equipment



Hot Blast Stove





DescriptionGrade 23Grade 26Grade 28Grade 30
Chemical Composition (%)
Al2O342566773
SiO255413024
Fe2O3<1<0.8<0.7<0.7
K2O+Na2O1.11.71.71.7
Density (kg/m3)6008009001000
Classification Temperature ( 0C )1300140015001550
Cold Crushing Strength (MPa) 1.21.82.53.3
Modulus of Rupture(MPa) 11.72.33.1
Permanent Linear Change(%)x24Hrs <0.6<0.6<0.8<0.9
Thermal Expansion(%)1000°C0.50.520.520.53



 Specification

    Length:230mm

    Width:114/172mm

    Thickness:64/76mm

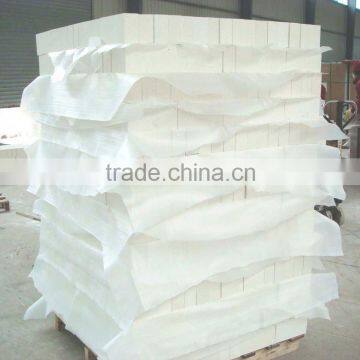

    Package: 10 pcs/ carton box,  668pcs/pallet

Insulation fire brick

Insulation fire brick

Customized production is also available, please contact us for more .



With US your money and bunissess will be very very safe.



SO hope YOU give US  a chance to sever YOU.



CONTACT US PLEASE!





Insulation fire brick

Insulation fire brick
