Voice Recorder Digital Voice Recording Module With Lcd And Bluetooth

Specifications

SPECIFICATION FOR APPROVAL

TDK008

LCD color option :                                            A: white B blue C yellowD green

Remoter option:

Modulecharacteristics :

1. . Support LCDaa
2. Support USB/SD/AUX/FM switch automaticlyaa 3.
3. Support MIC/LINE IN/FM various mo
4. ,previous,next,setting the volume,play/pause,record,play the recording.
5. ,FAT32.
6. ,MP2 Layer3,MP3 Layer3
7. -320kbp MP3 MUSIC
8. .

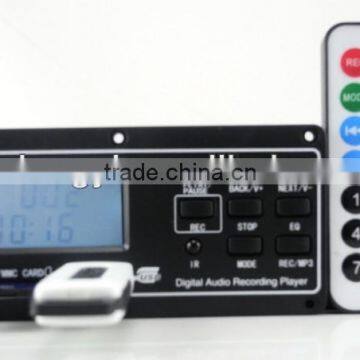

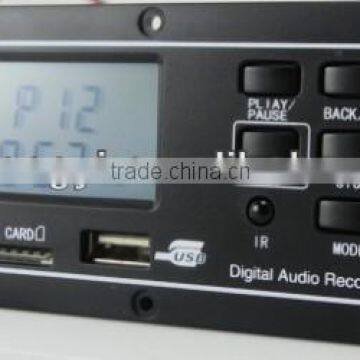

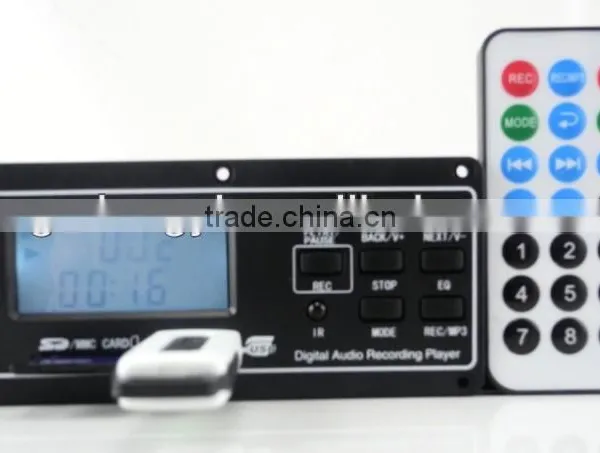

Instruction of Panel butten

1,“RECPLAY”: Switch mode for playback rec. file and mp3 music file ,press one time shortly for mp3,and press again for record.

2,“REC”KEY:(a)When in USB/SD ,short press for recording“MIC”,The

Lcd show MIC/REC/USBor SD;(b)when in LINE IN situation,short press for“LINE”recording ,The LCD show LINE IN/REC/USB or SD;(c)“when in FM”,short press for “FM”recording,The LCD show FM/REC/USB or SD;Press again will stop recording ,and save it in usb or sd card automatically

3,“VOL-”:setting the vol-.

4,“VOL+”:setting the vol+.

5,“MODE”L long press for power on and power off,short press for mode switch function)();when in SD and usb:switch mode order is USB→SD→AUX→FM→USB;if only in USB:Mode order is USB→AUX→FM→USB;if only in SD card:Mode order is SD→AUX→FM→SD.

6,“PREV”:.

7,“NEXT”:.

8,“PLAY/PAUSE”:when in USB/SD,Short press for play/pause;when in FM,Short press for channel searching and save channel;when in REC. ,short press will stop recording ,and save the rec.file ,and switch to the state recorded for playback.;when in MP3 state, short press“PREV/NEXT”to choose delet file,and short press again“PLAY/PAUSE”,and long press “PLAY/PAUSE”could delet the mp3 file playing or the recording file .

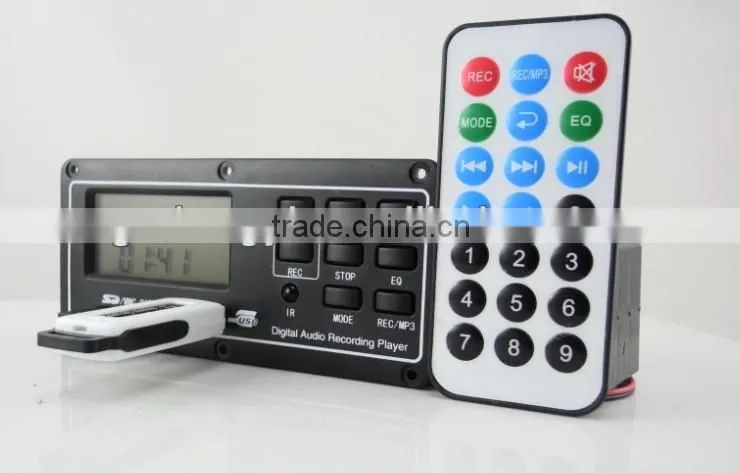

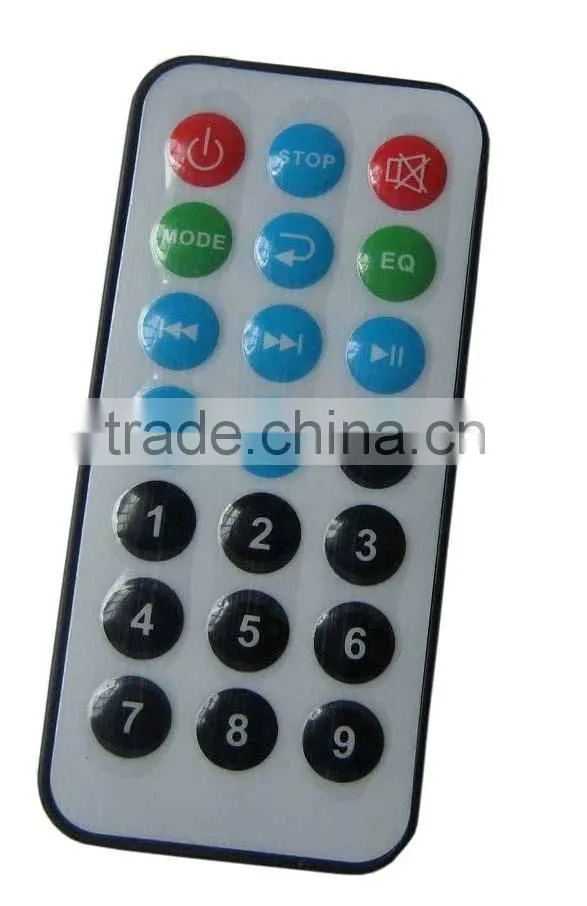

Instruction for control button

1.“ REC:"RECORD, short press for record, Press again will stop recording ,and save it in usb or sd card automatically

2. MODE: when in SD and usb:switch mode order is USB→SD→AUX→FM→USB;if only in USB:Mode order is USB→AUX→FM→USB;if only in SD card:Mode order is SD→AUX→FM→SD

3,PREV: when in USB/SDsituation ,short press for previous song; when in FM situation ,short press for previous channel.

4,NEXT: when in USB/SDsituation ,short press for next song; when in FM situation ,short press for next channel.

5,VOL+: setting the vol+.

6,VOL-: setting the vol-.

7,REP: switch mode for single repetition and all cycle when USB/SD play music; power on for all cycle.

8,“MP3/REC”: Switch mode for playback rec. file and mp3 music file ,press one time shortly for mp3,and press again for record.

9,MUTE:mute butten, one press for mute,two for cancel the mute.

10,EQ:sound filed model. NORMAL→JAZZ→ROCK→POP→CLASSIC→NORMAL

11,PLAY/PAUSE: same of panel

12,0~9:select buttons directly in the USB/SD. If more than 10, continuous to choose the digital

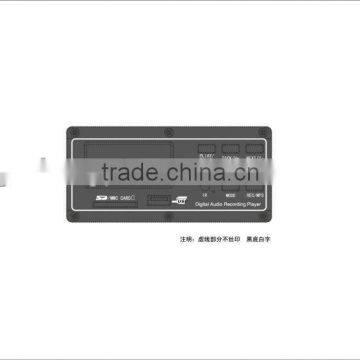

PCB CONNECTION AND SIZE

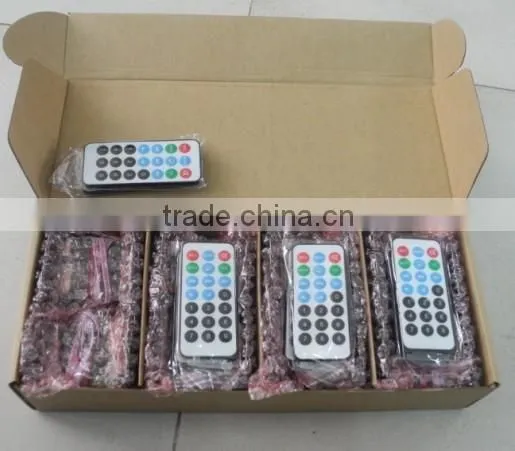

OUR PACKAGE :
