Descriptions:
The enclosures:Made of die-cast aluminum alloy.The surface sprayed epoxy resin powder,therefore they have good anti-corrosion performance.
The transparent shield:Made by toughened glass of borosilicate,the exposed fasteners are the stainless steel, between the suites of toughened glass cover and the light fitting body are used ferrule suspension hook design.
Explosion-proof light fitting's terminal box side entry:suitable for rubber-coated and the armored cable wiring.
The Phoenix internationally certified cage type terminals are selected as the internal terminals,which are convenient for wiring.
The unique heat insulation design united with the exterior high density'sradiator in the explosion-proof light fitting to cause the radiation effect will be better.It can satisfy the related requirements of illumination in petrochemical,chemical and marine industries.
The explosion-proof light fitting can be selected and matched the different light sources according to the user's different requests.
The high-frequency generator will be mounted in the light fitting body when the electromagnetic induction energy saving lamp is selected,and the ballast,the trigger and compensation capacitor will be mounted in the light fitting body when the metal halide lamp,high pressure sodium vapor lamp and high pressure mercury vapor lamp are selected.The explosion-proof light fitting can be fitted with the energy saving lamp,incadescent lamp and self-ballasted mercury vapor lamp directly.
The interlock switch can be fitted according to the user's request,which is safer that power will be automatically failed after uncovering.
| The mounting ways of the explosion-proof light fiting are celing type,bracket type,chain type | |
| |
|
Noted:
1.The highest class of flameproof is up to IIC.
2.The four patented technologies were obtained.
3.The degree of protection is up to IP66.
4.It is convenient to be mounted and maintained.
5.International IECEx Approval,Europe union ATEX Apporoval.
Summary:
Specifications
1ATEX Certifing
2With China Conformity Certificate of Explosion-proof
2Humanization Design
3New Products,Several light source
- Main technical data:
- Ex mark: Ex de IIC T6/T5/T4/T3 and DIPA21 TA T6/T5/T4/T3
- Intended use:
- Can be used in zone 1 and zone 2
- Can be used in zone 21 and zone 22
- Protection degree: IP66
- Rated voltage: 220 V AC, 50 or 60Hz
- Ambient temperature: -40 ≤ Ta≤55 degrees
- Lampholder code: E40
- Power: 150 to 500W
- Light source: self-ballasted mercury lamp, incandescent lamp, electromagnetic induction compact fluorescent lamp, metal halide lamp, high pressure sodium lamp and high pressure mercury lamp
- Terminal: L1,N Cage type terminal, PE terminal 2×10mm2

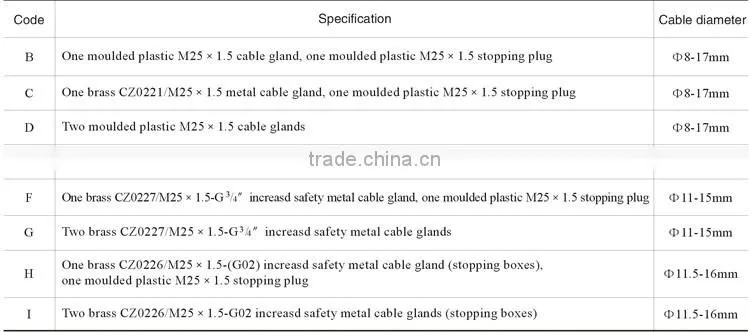

- Cable entry:
- Molded plasticc M25 x 1.5 cable gland, Outside diameter: Ø8 to 17mm,Molded plastic 1xM25 x 1.5 stopping plug

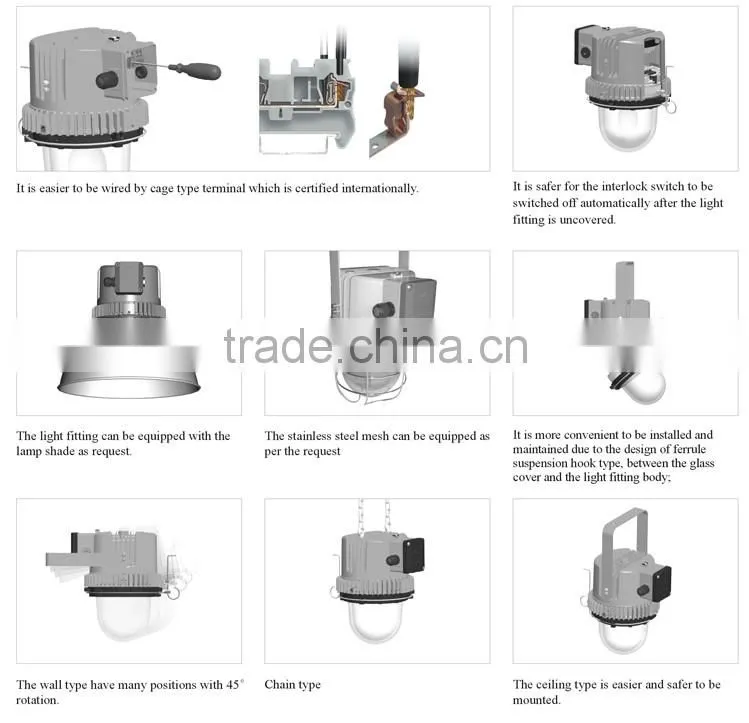

- Feaures:
- Four patents
- Highest class IIC of flameproof, protection degree up to IP66
- Convenient to be wired and mounted due to the wiring of explosion-proof junction box
- Convenient to be installed and maintained due to the design of ferrule suspension hook type between the glass cover and the lighting fixture body
- Easier to be wired by cage type terminal which is certified internationally
- High impact toughened glass cover is compliance with international standard even without the mesh shade
- External fastener and other accessories are made of stainless steel which is high corrosion-proof
- Standard equipped with the light source of Philips brand
- High luminance, high light efficiency and high coloration
- Energy saving is up to 70% higher than the ordinary incandescent lamp
- Range of wide operating voltage: 170 to 250V
- Once start-up, the light is no frequent flash
- Cold sunlight color: 6,500K
- Air pump type is used to the light source which makes the design life longer
- All brands and trademarks used are for reference only
1. Q: Could I put my own logo on it?
A: Yes,OEM service offered.
2. Q: How about the guaranty?
A: More than 1 year. And each product has different warranty,please contact us for detail.
3. Q: How about the certificates?
A: TUV/CE/UL/VDE/RoHS/SGS/CCC/CQC and so on.
4. Q: Could I buy 1pc sample first and small order?
A: Of course,support sample order and small order, especially for new customers under certain condition.
5. Q: How long to make a sample?
A: Samples will be deliveried less than four days.
6. Q: What payment is acceptable?
A: PayPal or western is accaptable for samples.
7.Q: What material do you fabricate?
A: We normally produce stainless steel,aluminum,plastic etc.
