Specification and Features:
Main Technical Data:
| Ex mark | Ex e IIC T4/T5/T6 Gb DIP A21 TA T4/T5/T6 |
| Intended use | Can be used in zone 0, zone 1, zone 2, zone 20 zone 21 and zone 22 |
| Degree of protection | IP66 |
| Rated voltage | max 1100V |
| Rated current | max 400A |
| Ambient temperature use | -40 ℃ to +40 ℃ /55 ℃ |
| Shock resistance | 7J(Nm) |
| Earthing | M6 |
| Box internal installation structure forms | Rail bracket install and brass mounting plate install |
| Box open structure forms | Open cover type and open door type |
| Remove plate | 3mm detachable removal plate |
| Material thickness | Standard 1.5mm(Other customized) |
| Material enclosure | 304/316L/Carbon steel |
Order Specification:
Optional Removable Plate:

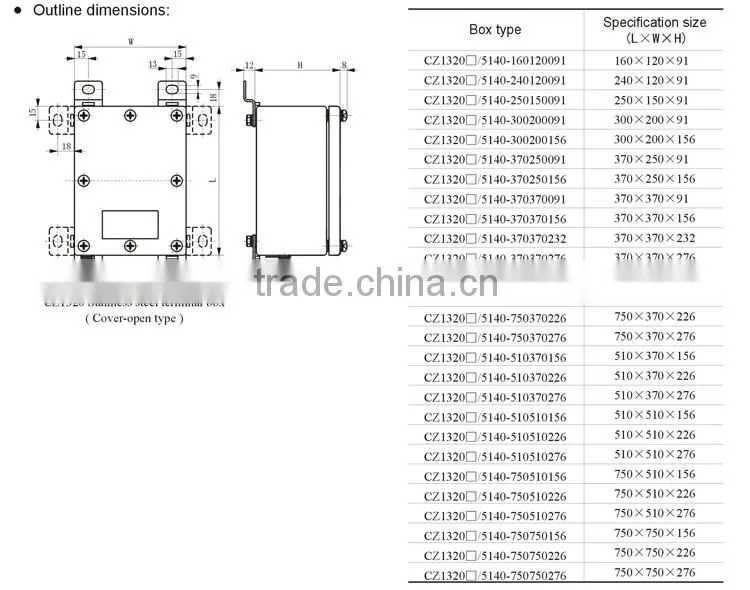

Outline dimensions:
Specification of Cover-Open box:

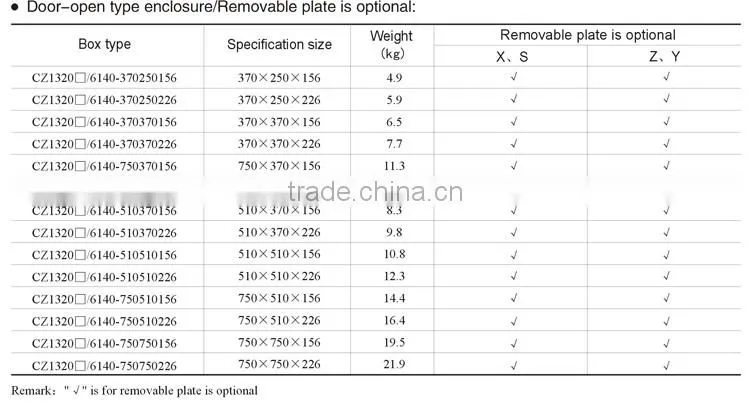

Specification of Door-Open box:
1. Q: Could I put my own logo on it?
A: Sure,customers' logo can be printed or put on the items.
2. Q: How about the guarantee of the items?
A: According to the actual situation.
3. Q: How about the quality?
A: Over 1 year. Each product will be different warranty,please contact us.
4. Q: How about the certificates?
A: TUV/DNV/SIRA/CML/CE/CQST
5. Q: Could I buy 1pc sample first and small order?
A: Of course,support sample order and small order, especially for new customers under certain condition.
6. Q: How long to make a sample?
A: Samples will be prepared within three days.
7. Q: What payment is acceptable?
A: PayPal or western is accaptable for samples.
International Trade:
Tel: +86-573-83883599
Fax: +86-573-83883986
Address: NO.1 Qixing Road, Qixing Town, Nanhu District, Jiaxing, Zhejiang.P.R.China
Over 25 years OEM experience, we can provide professional solutions for customers.
Click "Send "get the Latest quotation Now!!!
