| Ex mark | Ex II 2G Ex de II C Gb |
| Intended use | Zone 1, zone 2, zone 21, zone 22 |
| Ambient temperature | -40℃ to +70 ℃ |
| Rated voltage | 440V |
| Setting range of over load trip | 0.1 ~ 25A |
| AC3 motor on-off capacity | up to 440V/25A |
| Rated on-off capacity | up to 65kA |
| Capacity of auxiliary contact | AC15 1A/230V |
| Voltage trip | 230V/50Hz |
| Terminals | main contacts 1 ~ 10mm2(6 ~ 10mm2 used in connection with compression lug) auxiliary contact 1 ~ 2.5mm2 |

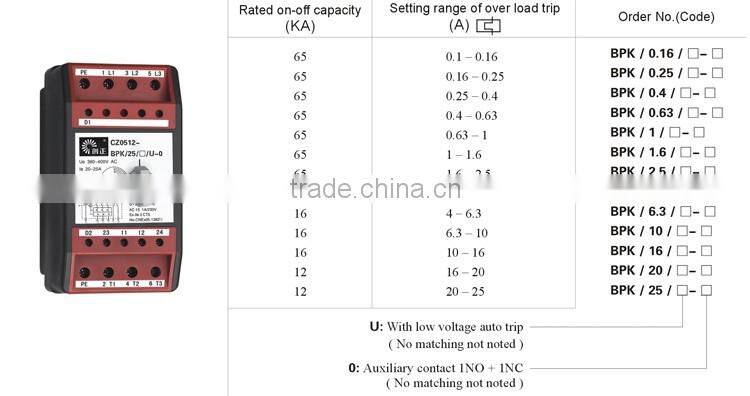

Order specifications:

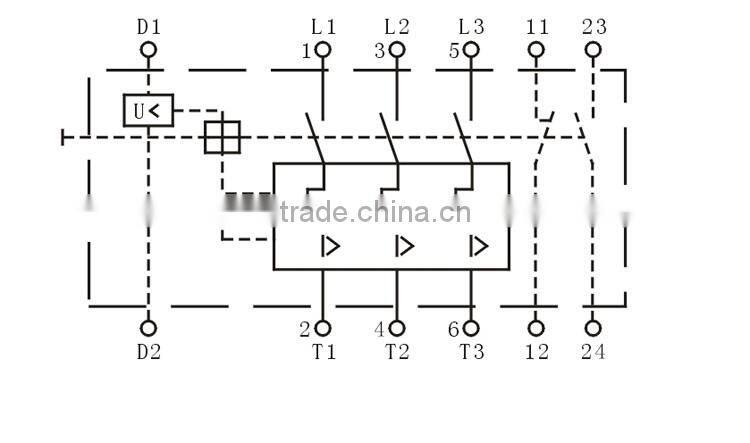

Electrical principal diagram:

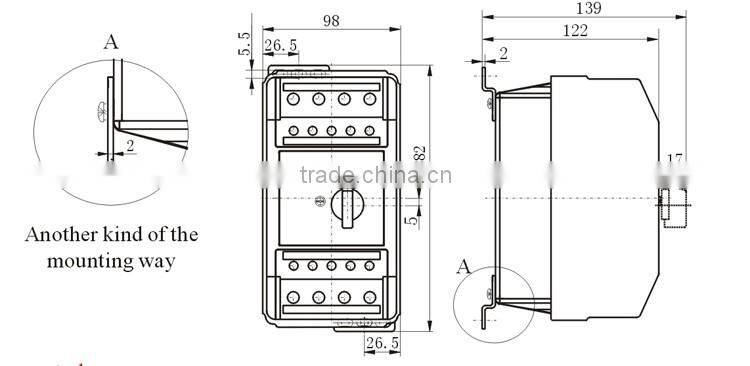

Outline dimensions:
1. Q: Could I put my own logo on it?
A: Sure,customers' logo can be printed or put on the items.
2. Q: How about the guarantee of the items?
A: According to the actual situation.
3. Q: How about the quality?
A: Over 1 year. Each product will be different warranty,please contact us.

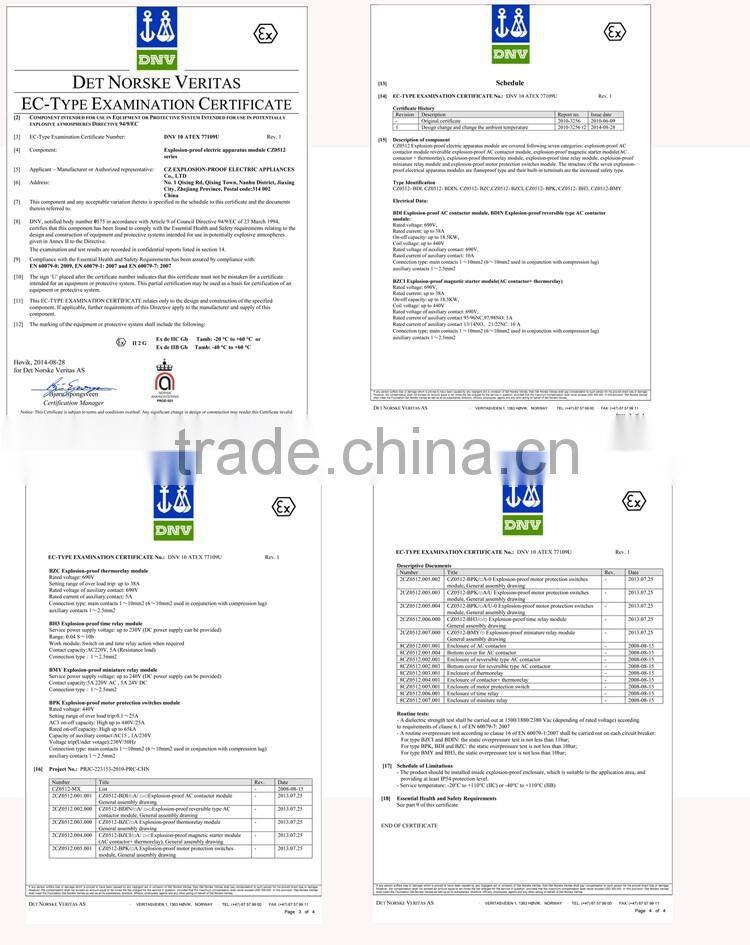

4. Q: How about the certificates?
A: TUV/DNV/SIRA/CML/CE/CQST
5. Q: Could I buy 1pc sample first and small order?
A: Of course,support sample order and small order, especially for new customers under certain condition.
6. Q: How long to make a sample?
A: Samples will be prepared within three days.
7. Q: What payment is acceptable?
A: PayPal or western is accaptable for samples.
