Specifications
1. rubber out whole body2. 129, 536pcs large capacity
3. 3.7v rechargeable battery
4. RoHS &CE certification
5. drop record
shockproof security guard equipment
Unique Features of V1 kingguard
1. Durable, it is sealed totally by Polycarbonate, the whole body are encased in special rubber,
making it tamper- resistant and waterproof.
2, Large storage capacity ,it can store 129.536pcs records circularly .
4, low power reminder, will indicate yellow light, let guards charge in time, don’t delay patrolling.
5, Visual and tactile prompt, reader will flash blue LED light and vibration when read successfully,
6, Power off protection, data can keep ten years without power
7, Impact records ,it can generate records in software if someone breaks it on purpose.
8, USB-B port, it’s more durable than mini USB.
V1 Kingguard Technical Data
Probe |
RFID |
Read Tag Distance |
2-3 cm (EM30) |
Storage Capacity |
129,536 pieces records ,circulating storage |
Material |
Polycarbonate and rubber |
Data safety |
Data can keep ten years with power off protection |
Read tags indication |
Blue & Vibration |
Charge Indication |
Red Light |
Battery used |
3.7V rechargeable Lithium Battery |
Battery life (fully charged) |
3 months or longer |
Protection Grade |
Based on IP67 design |
Shockproof |
durable enough to withstand 50 times drop from 2m(about 6.5ft) |
Waterproof |
Work well in the rainy day |
Operate temperature range |
-40°C— +85°C |
Dimension |
130*39*38mm |
Weight |
160g |

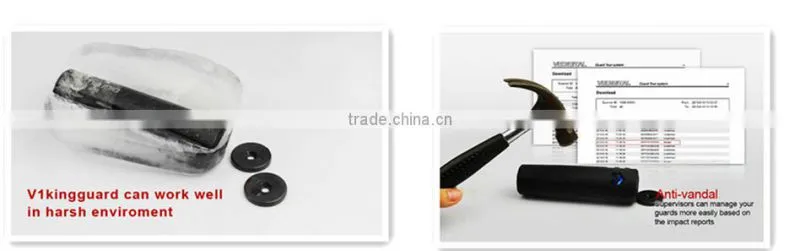

waterproof and shockproof function

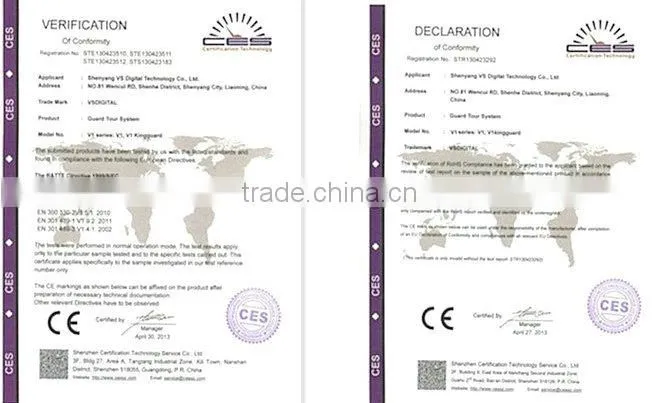

Certifications

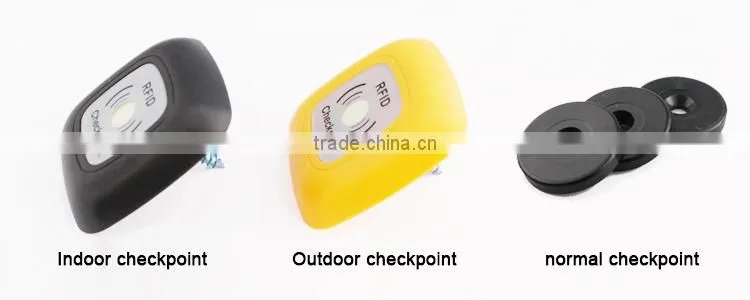

checkpoint
EM50B EM50Y EM30
two ways to transmit data
1. Economic way: V1 + USB cable.
2. Standard way: V1+ IP-Downloader of GPRS or RJ45
can tranmit data from a remote place (even in differect cities) without computer nearby, just need a SIM card inside.
advantage:
No need computer
Patrol data is downloaded into IP downloader then istransferred to server by GPRS.
Operate easily
Operator just needs to connect V1 and IP Downloader with USB cable, and then IP-downloader will read patrol
records automatically and transfer patrol data to the software, if meet the signal is busy or
broken, IP Downloader will detect the server constantly until upload sucessfully.
No Maintenance
IP downloader uses embedded design, so hardware program won’t be affected virus like PC.
Reliable storage
IP Downloader uses Flash memory, so the patrol data can be kept more than 10 years after power off.
Download patrol data movably
If IP Downloader uses standard mobile power , it can download and upload patrol data movably.
Recognize reader automatically
IP Downloader can recognize V1, V5, V51 and downloads patrol data automatically.
48 groups alarm clock
Read ibutton, RFID tag function
Update firmware remotely
software- 8 kinds of powerful report
advantages of online software
1.it can realize "check at any time, anyplace" via mobile phone, Ipad or PC by typing in .
2.it has 8 kinds of report, such as impact report, low power report ,flow report and so on.
3.it can be sent to someone you wanted via Email, PDF and CSV (which can be checked by Excel)
4.it can set daily plan, week plan ,month plan and customized plan.
5.it will have the APP function in the near future thus it will send you the result of the patrolling automatically.
why you choose VSdigital?
1.We are the guard tour scanner manufacturer since 2003 and have our own R&D department.
2. our products have passed CE and ROHS Certifications .
3.OEM and ODM avaliable.
4.Can translate software according to you needs.
5.5 years warranty.
6.Money back policy---when you received the goods ,and think our products cann’t meet you needs,
you can send them back to us and we will return your money.
7.Online software-the only online software can be checked at anyplace anytime via mobile phone,Ipad
or PC by typing in
8.after sale services:
1) online remote assistance.
2) tested stricly and packed well before our profucts are sent.
9. payment: you can pay via: T/T ,West union, Escrow and Paypal.
Our Services
1. 24h service available
2. 5 years warranty.
3. all products will be strctly tested and well packed before the shipment.
small Box: 21*15*7cm outer box:60*38*55cm
