NEMA G10 Fiberglass Sheet Electrical Insulation Sheet

NEMA G10 Fiberglass Sheet Electrical Insulation Sheet thumbnail-1
NEMA G10 Fiberglass Sheet Electrical Insulation Sheet thumbnail-2
NEMA G10 Fiberglass Sheet Electrical Insulation Sheet thumbnail-3
NEMA G10 Fiberglass Sheet Electrical Insulation Sheet thumbnail-4
NEMA G10 Fiberglass Sheet Electrical Insulation Sheet thumbnail-5
NEMA G10 Fiberglass Sheet Electrical Insulation Sheet thumbnail-6
NEMA G10 Fiberglass Sheet Electrical Insulation Sheet photo-1
NEMA G10 Fiberglass Sheet Electrical Insulation Sheet photo-2

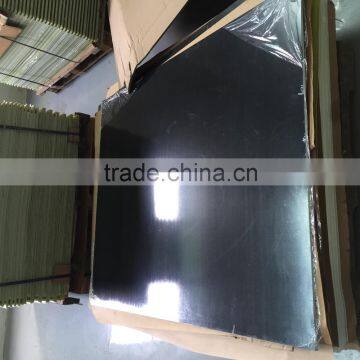

NEMA G10 Fiberglass Sheet Electrical Insulation Sheet photo-3
NEMA G10 Fiberglass Sheet Electrical Insulation Sheet photo-4

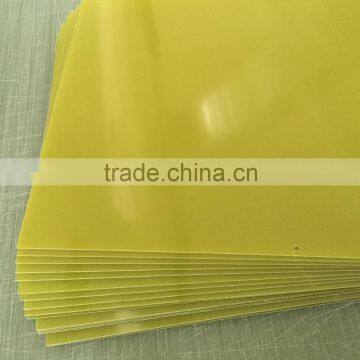

NEMA G10 Fiberglass Sheet Electrical Insulation Sheet photo-5
NEMA G10 Fiberglass Sheet Electrical Insulation Sheet photo-6
US$ 2 - 10 MOQ: 1000 Kilograms
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
CS
Model Number:
FR4 108
Contact Supplier Request Quote Chat Now
Huizhou Zheng Sheng Precision Work Science Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Yantian Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name CS
Model Number FR4 108
Type Insulation Sheet
Material Fiberglass
Application Other, high dielectric property, Electrical Insulate,High Voltage,High temperature
Rated Voltage 220V
Tensile Strength 340MPa, 340MPa
Product Description

NEMA G10 Fiberglass Sheet Electrical Insulation Sheet

Raw material

FR4 fiberglass board is made of fiberglass cloth impregnated with epoxy resins and phenolic resins.

Processing method

Pressing under high heat and pressure to become epoxy board.

Applications

Widely used to automative electrical insulation.

Technical Data

NEMA G10 Fiberglass Sheet Electrical Insulation Sheet

Basic Information
Product name
NEMA G10 Fiberglass Sheet Electrical Insulation Sheet
Material
Fiberglass cloth and epoxy/phenolic resin
Grade
Grade A & Grade B or customer demands
Technical Performance
Density
2.2g/cm 3
Combustibility
UL94 V-0
Water absorption
≤6.5mg
Formation methods
High temperature and high pressure
Reference Standard
GB/T1303.1-1998
Thermal stability in 24H
≥200°C
Dielectric constant (1MHz)
5.14
Impact strength parallel to laminations (Charpy)
≥45.3 KJ/m 2
Flexural strength perpendicular to lamination
≥350 Mpa
Breakdown voltage parallel to laminations

(in 90±2°C transformer oil)
≥40 KV
Laminations (Charpy)

Dielectric strength perpendicular to laminations

(in 90±2°C transformer oil,1mm in thickness)
≥10.7 MV/m
Detailed Images

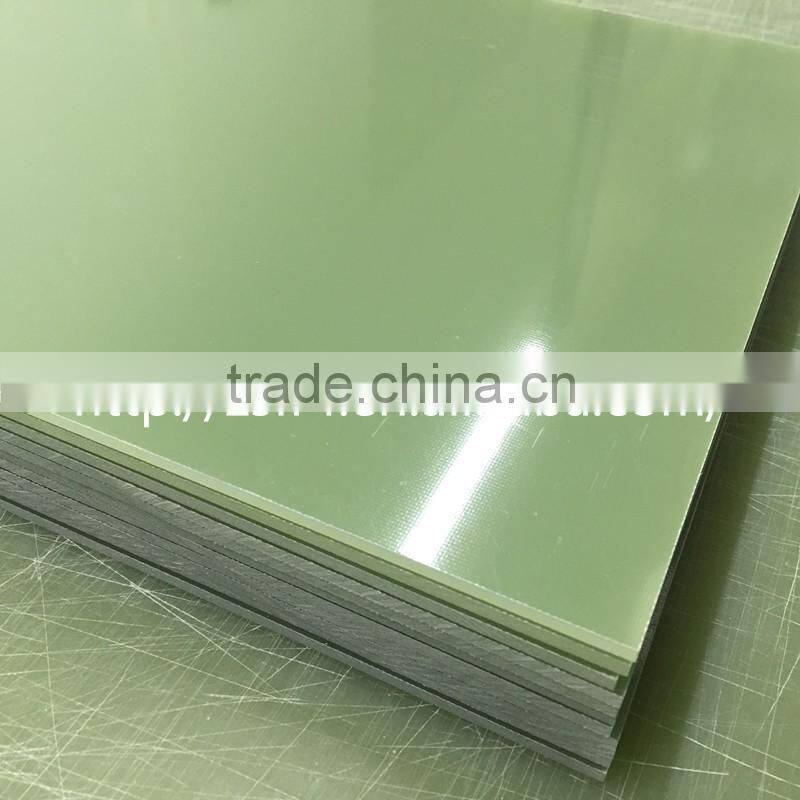

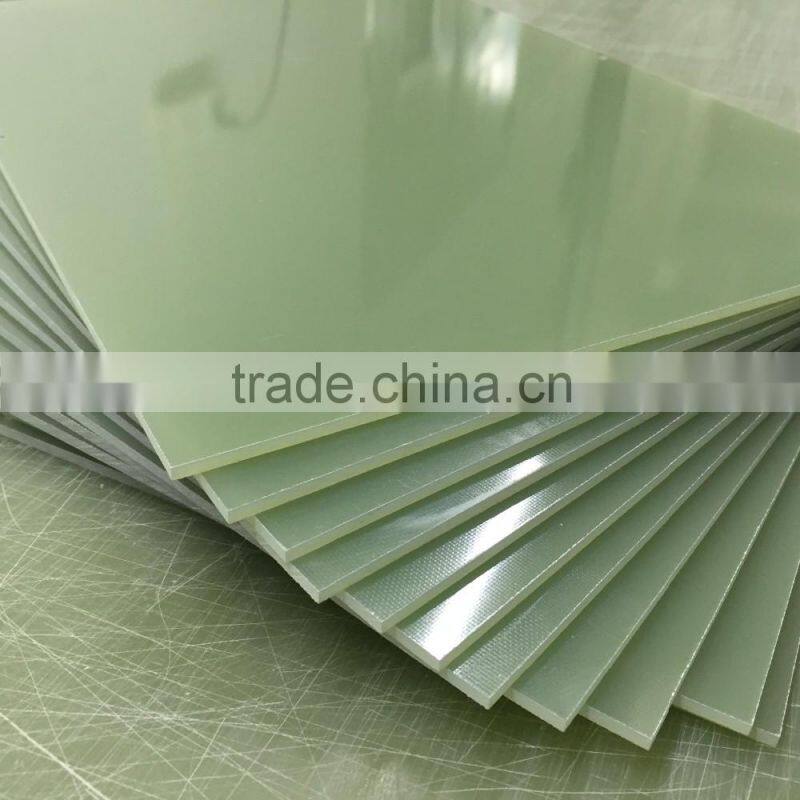

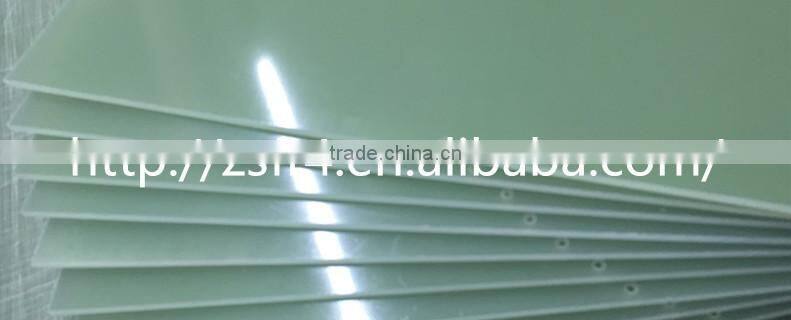

NEMA G10 Fiberglass Sheet Electrical Insulation Sheet

Flat surface,non-pit and great eletrical insulation property.Any requirement can be discussed.

Packing & Delivery

Different package will be used according to customers' requirement.

Generally we use solid pallet with PE film inside.

Cartoon paper and bubble wrap will used to strengthen the protection.

Quick Delivery

With the 15-year manufacturing experience,we have been cooperated with DHL,FedEx,UPS,TNT,EMS and other shipping company.

Company Display

Manufacturer

We are a professional epoxy fiberglass board manufacturer with 15 years experience.

Workshop

We have more than 8,000 square meters professional workshop.

Producing Line

We have the most advanced producing lines in this field.

Q.C.

Check with the GB/T1303.1-1998 standard and every customer's requirement will be checked as a major point.
