Factory Outlet Fr4 Laminate Epoxy Glass Resin Sheet

US$ 2 - 9 MOQ: 500 Kilograms

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

C.S

Model Number:

fr4-14

Huizhou Zheng Sheng Precision Work Science Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

yantian shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name C.S

Model Number fr4-14

Type Insulation Sheet

Material Fiberglass

Application Low Voltage

Rated Voltage 40KV

Tensile Strength 340MPa

Product Description

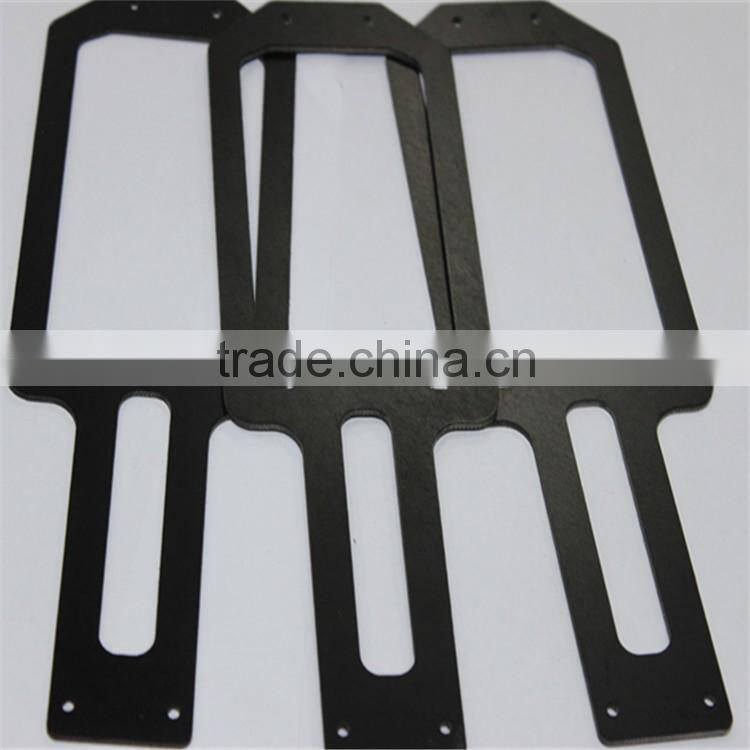

Factory outlet fr4 laminate epoxy glass resin sheet

Properties	Unit	Index Value	Fact Value
Properties	Unit	3240-A	3240-A
Flexural Strength perpendicular to laminations
A: under normal conditions	Mpa	≥340	345
Impact Strength parallel to laminations (Charpy)	KJ/m2	≥33	34.5
Tensile Strength	Mpa	≥300	300
Insulation Resistance after immersion in water (D-24/23)	W	≥5.0×108	5.1×108
Dielectric Strength perpendicular to laminations (in 90±2 °C transformer oil, 1 mm)	KV/mm	≥10.2	10.4
Breakdown Voltage parallel to laminations (in 90±2°C transformer oil)	KV	≥35	36.1
Permittivity (50Hz)		≤5.5	5
Permittivity (1MHz)		≤5.5	5.1
Dissipation Factor (50Hz)		≤0.04	0.032
Dissipation Factor (1MHz)		≤0.04	0.032
Water Absorption (D-24/23, 1.6mm	≤mg	34	21.5
Density	g/cm3	(1.70-1.90)	1.9
Color	—	Natural	Natural
Reference Standard	—	GB/T1303.1-1998

Packaging & Shipping

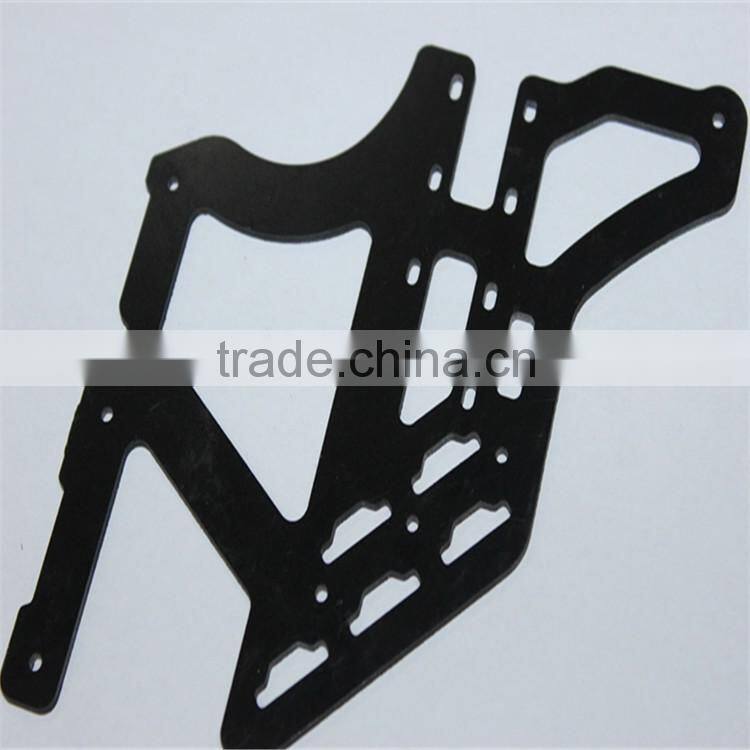

Factory outlet fr4 laminate epoxy glass resin sheet

Packaging	1. pallet with carton.
	2. Plastic pallet with carton.
	3. Wooden wooden pallet with wooden case.
	4. According to customer requirements.
Delivery	1. Stock size 3-5 working days.
	2. Custom size 10-15 working days.
