Help CenterHeat Shrinkable Breakout
Negotiable
MOQ: 50 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
HEAG.HYRS
Model Number:
ZT
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO/SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
HEAG.HYRS
Model Number
ZT
Type
Heat Shrinkable
Material
PE

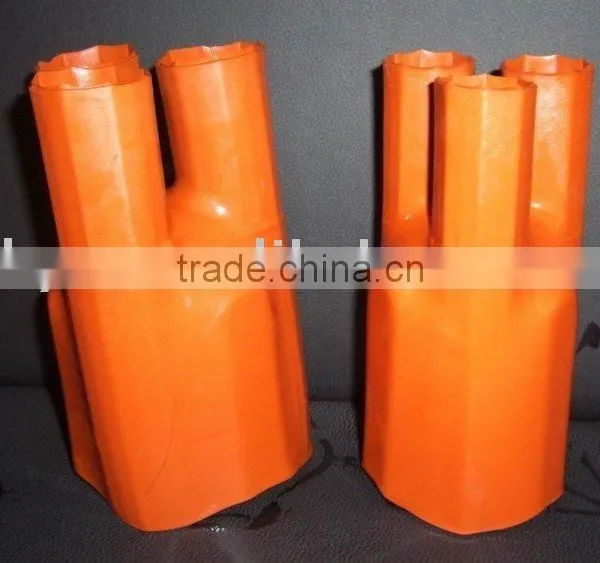

cable breakouts are widely used in electric power industry to provide insulation with sealing over the cruth of multi-core cable
| Property | Typical Data |
| Hardness | 80(shoea A) |
| Tensile strength | 10mpa |
| Elongation at break | 300% |
| Shrink temperature | 120-140 |
| Shrink ration(dia) | 250% |
| Longitudinal shrinkage | ±5% |
| Specification | Dia of Body | Dia of finger | size of conductor(mm2) | usage range | color |
| ZT-2.0 | 22/12 | 11/3.5 | 10-16mm2 | LV termination for 2 cores | black |
| ZT-2.1 | 38/19 | 15/5 | 25-50mm2 | ||
| ZT-2.2 | 58/23 | 26/8.5 | 70-120mm2 | ||
| ZT-2.3 | 88/42 | 33/14 | 150-240mm2 | ||
| ZT-3.00 | 26/20 | 11/5.4 | LV,HV termination for 3 cores | black,redmauve | |
| ZT-3.0 | 53/26 | 25/7 | 10-16mm2 | ||
| ZT-3.1 | 73/39 | 30/10 | 25-50mm2 | ||
| ZT-3.2 | 88/48 | 38/15 | 70-120mm2 | ||
| ZT-3.3 | 108/60 | 47/18 | 150-240mm2 | ||
| ZT-3.4 | 125/70 | 65/25 | 300-500mm2 | ||
| ZT-4.0 | 33/22 | 13/5 | 10-16mm2 | LV termination for 4 cores | black |
| ZT-4.1 | 40/26 | 16/6 | 25-50mm2 | ||
| ZT-4.2 | 64/33 | 26/7.5 | 70-120mm2 | ||
| ZT-4.3 | 76/42 | 33/11 | 150-240mm2 | ||
| ZT-5.0 | 35/21 | 13/5 | 10-16mm2 | LV termination for 5 cores | black |
| ZT-5.1 | 52/29 | 16/5 | 25-50mm2 | ||
| ZT-5.2 | 80/39 | 26/10 | 70-120mm2 | ||
| ZT-5.3 | 93/46 | 33/11 | 150-240mm2 |
