1KV 4-CORES Low Voltage Heat Shinkable Straight Throught Joint
Negotiable
MOQ: 20 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
HEAG/HYRS
Model Number:
JSY-1/4
Place of Origin:
Zhejiang, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1KV 3-CORES Low Voltage Heat Shinkable Straight Throught JointNegotiableMOQ: 50 Sets -
1KV 2-CORES Low Voltage Heat Shinkable Straight Throught JointNegotiableMOQ: 20 Sets
-
1KV 5-CORES Low Voltage Heat Shinkable Terminational KitsNegotiableMOQ: 20 Sets
-
1KV 4-CORES Low Voltage Heat Shinkable Terminational KitsUS$ 1 - 10MOQ: 20 Sets
-
1KV 3-CORES Low Voltage Heat Shinkable Terminational KitsNegotiableMOQ: 20 Sets
Brand Name
HEAG/HYRS
Model Number
JSY-1/4
Place of Origin
Zhejiang, China
Product Advantage:
20 years producing, 8 years exporting experience
all sets passed IEC60520 and JB8144 testing
Component: Insulation tubing, protective tubing,Filling adhesives
Technical Data
| Property | Typical Data |
| Hardness | 80(Shoea A) |
| Tensile Strength | 12Mpa |
| Elongation at Break | 300% |
| Dielectric Strength | ≥20kv/mm |
| Ac voltage withstand | 2.5kv |
| Shrink temperature | 120-140°c |
| Shrink ration (dia) | 250% |
| Longitudinal shrinkage | ±5% |
Characteristic
1). Light weight, reliable operation, easy installation
2). Shrinking fast and no crack
Specifications
| NAME | TYPE | Size of Conductor(mm2) |
| 5-CORES JOINTS | JSY-1/5.0 |
10-16 |
| 5-CORES JOINTS | JSY-1/5.1 | 25-50 |
| 5-CORES JOINTS | JSY-1/5.2 | 70-120 |
| 5-CORES JOINTS | JSY-1/5.3 | 150-240 |
| 5-CORES JOINTS | JSY-1/5.4 | 300-400 |

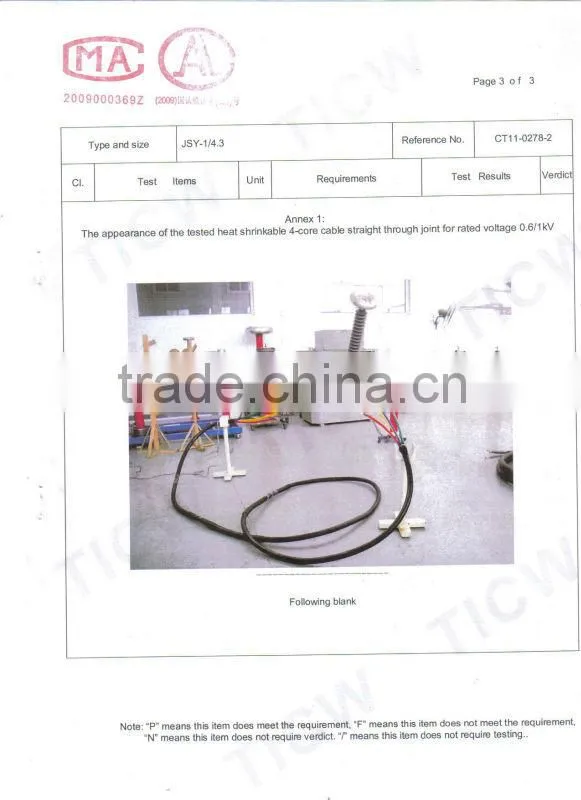

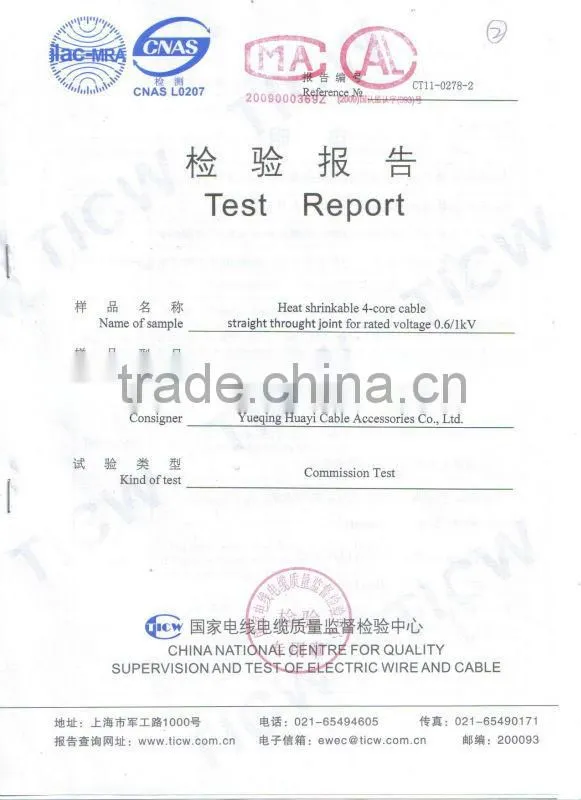

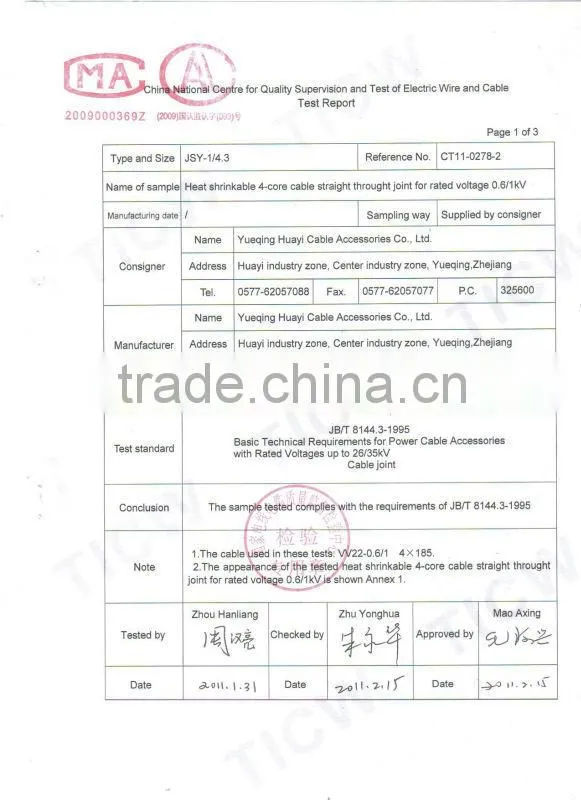

Test Report
