36kv Cold Shrinkable 3-core Outdoor Termination Kit
US$ 1 - 2
MOQ: 5 Sets
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
HEAG,HYRS
Model Number:
WLS
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Shanghai and others
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
New Type Rain ShedNegotiableMOQ: 100 Pieces -
Heat Shrinkable Bus-bar Insulation TubeNegotiableMOQ: 100 Meters
-
All Kinds of Heat Shrinkable Bus-bar Tie-in ShapedNegotiableMOQ: 50 Pieces
-
Medium Wall Sleeving With Hot Melting AdhesivesNegotiableMOQ: 100 Pieces
-
Constant Force SpringUS$ 0.05 - 1MOQ: 500 Pieces
Place of Origin
China
Brand Name
HEAG,HYRS
Model Number
WLS
Type
Splice
INTRODUCTION:
36kv Cold Shrinkable outdoor termination kit
Made of imported silicon rubber material. Have excellent electric performance and excellent physical performance, such as high elasticity, a long life span and constant shrink pressure,and they don't need a flame or special tools for shrinking.
Detailed Description:
- Material: silicone rubber imported from Germany
- Available cores; 1-core and 3-cores
- Available Cable Area:25 mm²~500 mm².
- Certification;ISO9001:2000,conform to IEC60502-4:1997
- Advantage:A.leading manufacter, high quality and best price
SPECIFICATIONS:
| Description of Goods | Specification |
Size of Conductor (mm2) |
| Three Cores Indoor Termination Kits | NLS-36/3.1 | 50-120 |
| Three Cores Indoor Termination Kits | NLS-36/3.2 | 150-240 |
| Three Cores Indoor Termination Kits | NLS-36/3.3 | 300-500 |
| Three Cores Outdoor Termination Kits | WLS-36/3.1 | 50-120 |
| Three Cores Outdoor Termination Kits | WLS-36/3.2 | 150-240 |
| Three Cores Outdoor Termination Kits | WLS-36/3.3 | 300-500 |
| Three Cores Straight Through Joints | JLS-36/3.1 | 50-120 |
| Three Cores Straight Through Joints | JLS-36/3.2 | 150-240 |
| Three Cores Straight Through Joints | JLS-36/3.3 | 300-500 |
TECHNICAL DATA:
| Property | Typical Data |
| Ac withstand(under rain) | 117kv/1min |
| Ac withstand(without rain) | 117kv/1min |
| Impulse withstand | ±250kv/10times |
| Dc withstand | -156kv/15min |
| Ac withstand | 104kv/4h |
| Partial discharge test | ≤10Pc(1.73Uo) |
PRODUCT SHOW:
B.OEM is welcome.

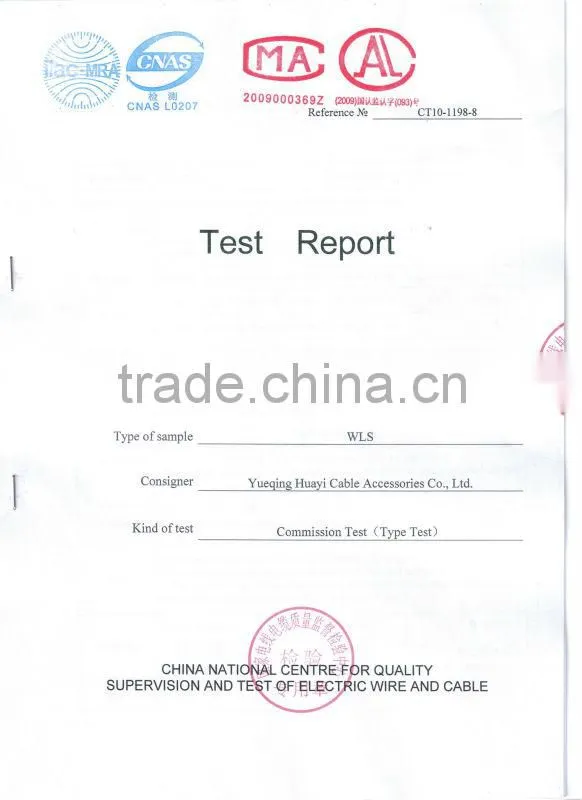

CERTIFICATION:

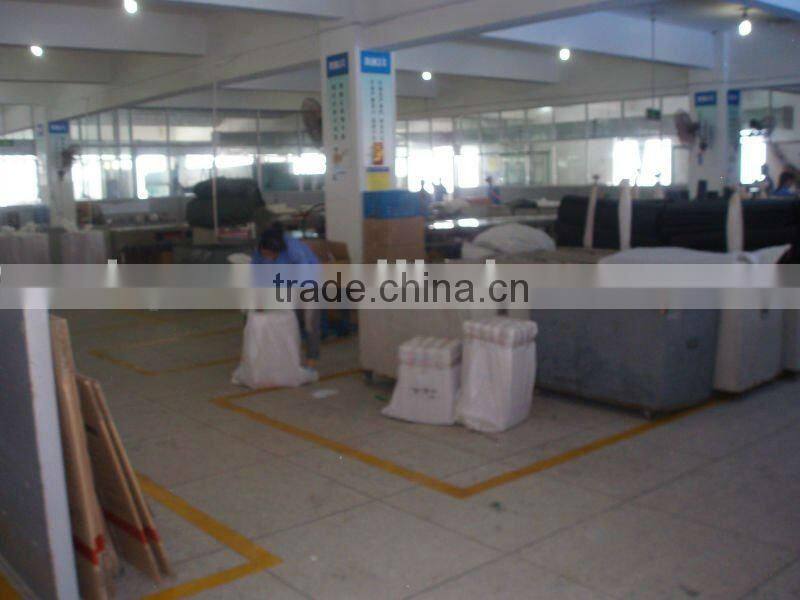

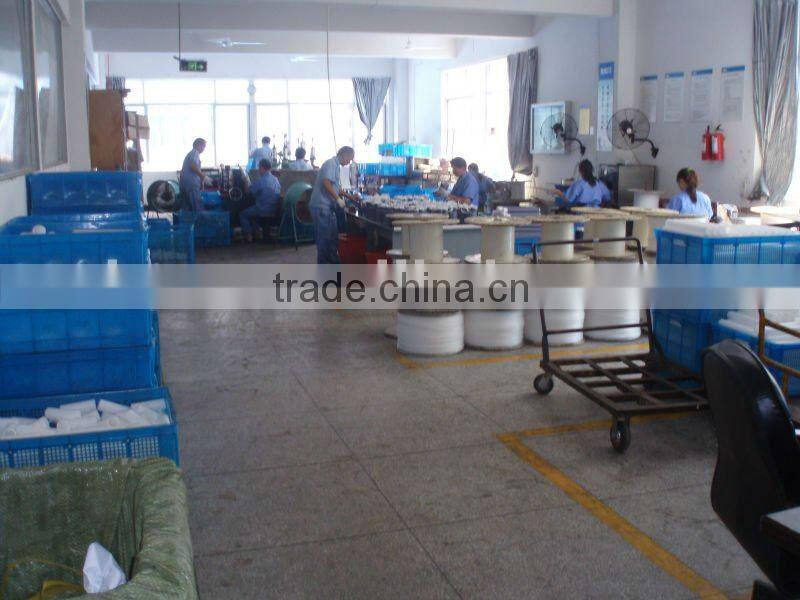

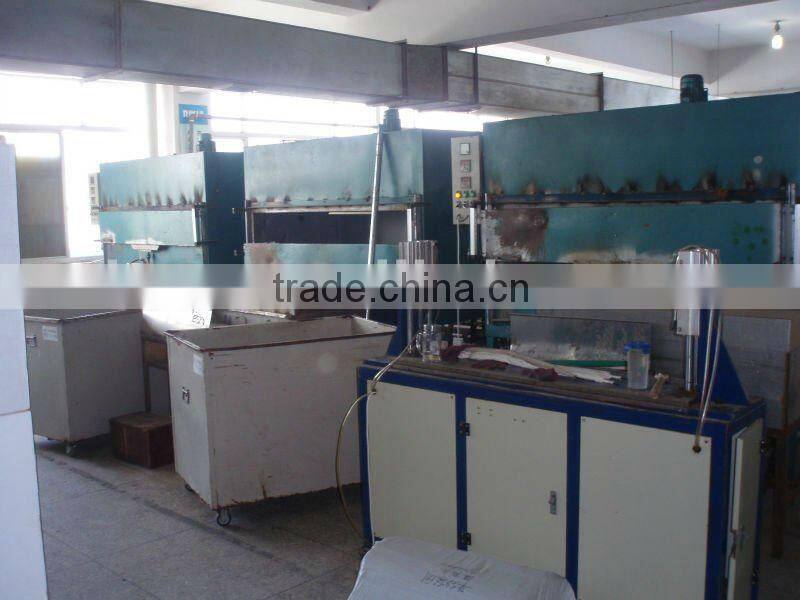

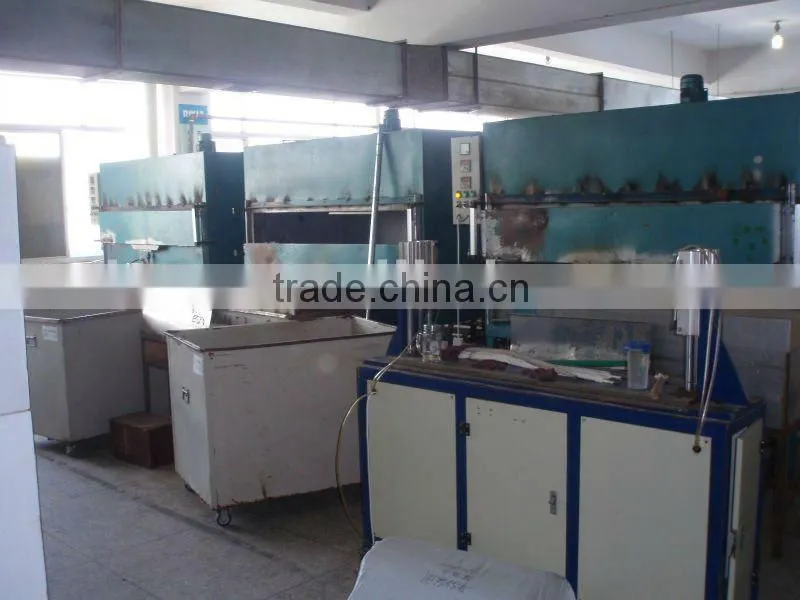

PHOTOES of PRODUCTION FIELD:
