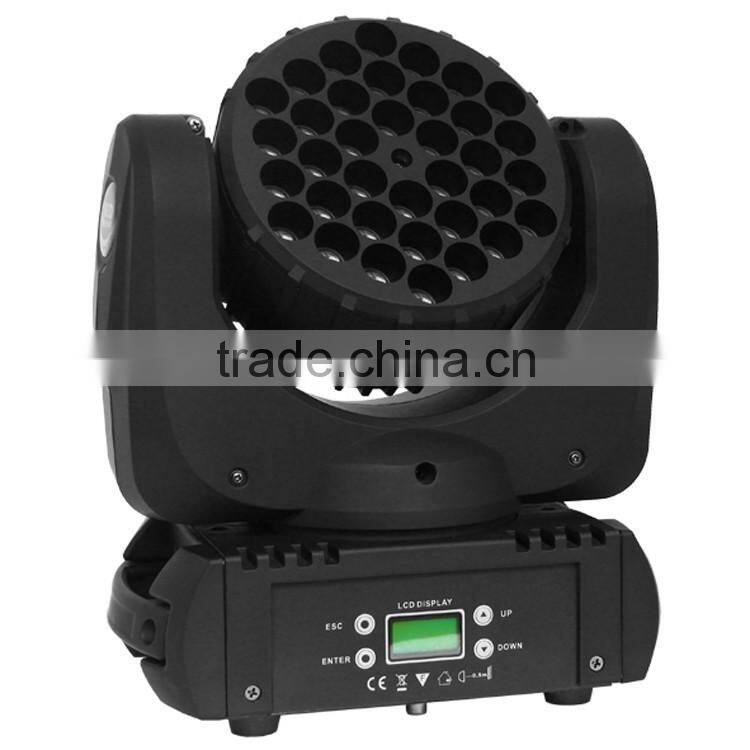

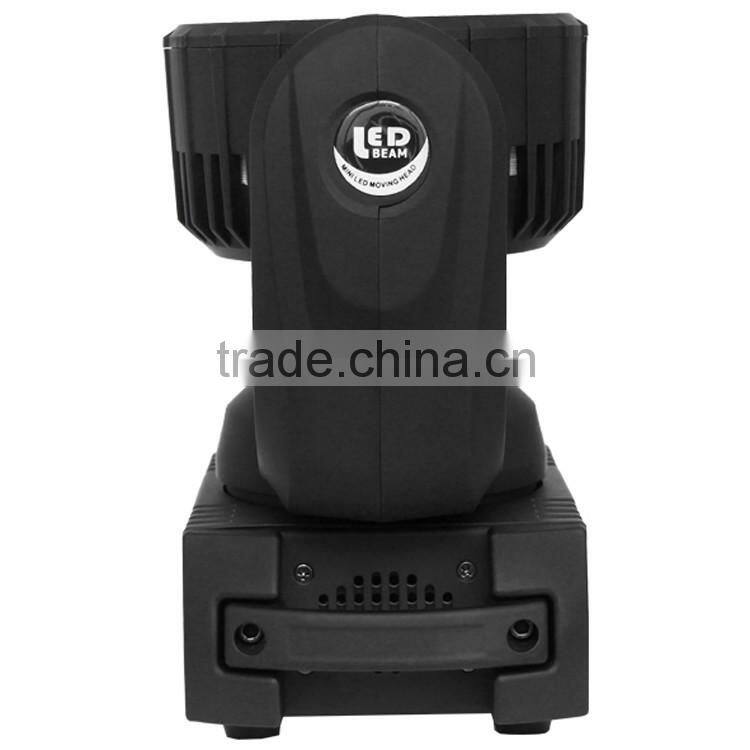

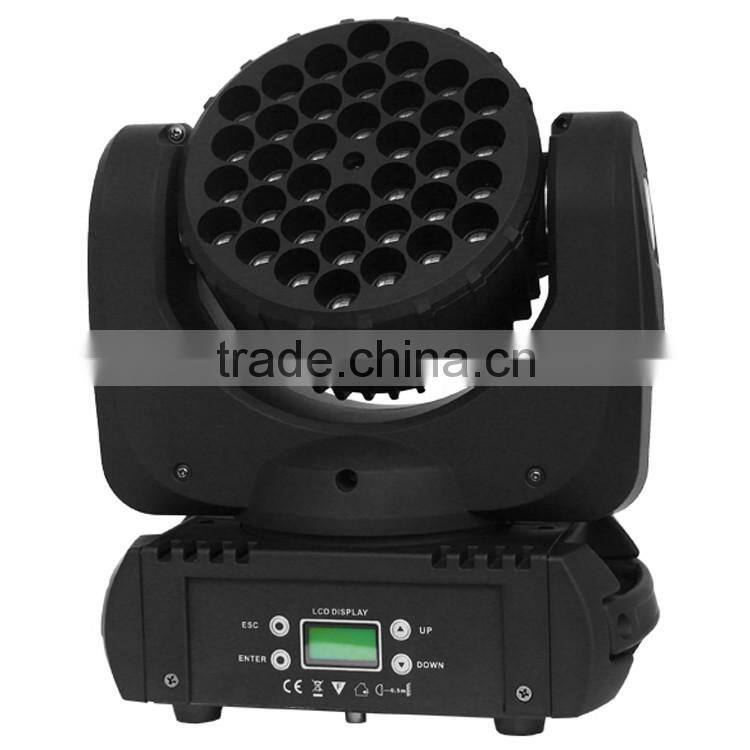

Manufacturer Wholesale Blizzard Lighting Blade RGBW 36x3w LED Moving Head Wash Beam

Manufacturer Wholesale Blizzard Lighting Blade RGBW 36x3w LED Moving Head Wash Beam

LAMP SOURCE
- 36*3w Cree RGB LEDs or RGBW LEDs.
- Output Lamp power:150w
- Average life: 50,000 h. The LED features 100,000h if used appropriately

OPTICS
Beam Angle:8 degrees.
Focus: electronic

COLOR SYSTEM
Smoothly rgbw color mixing,more than 1670 million colors

EFFECTS SECTION

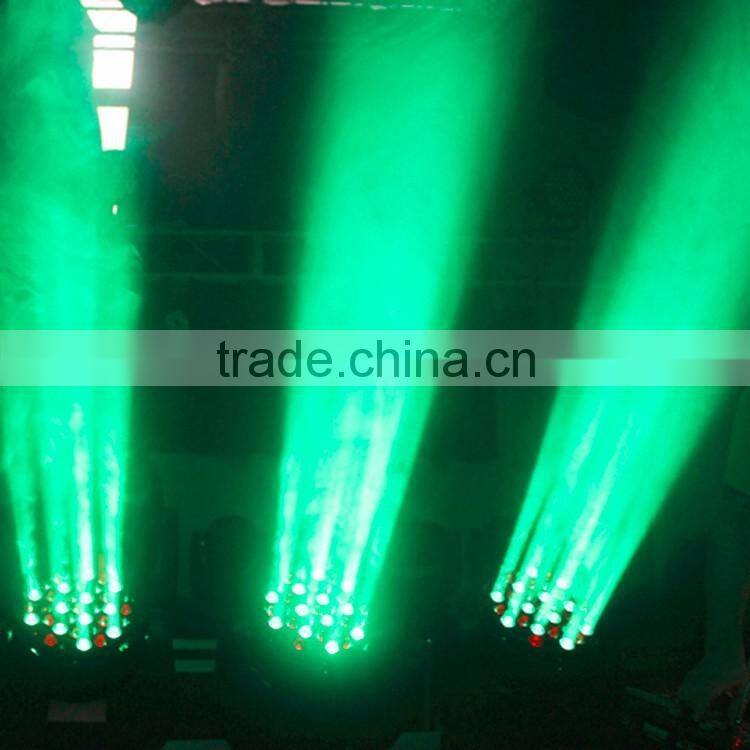

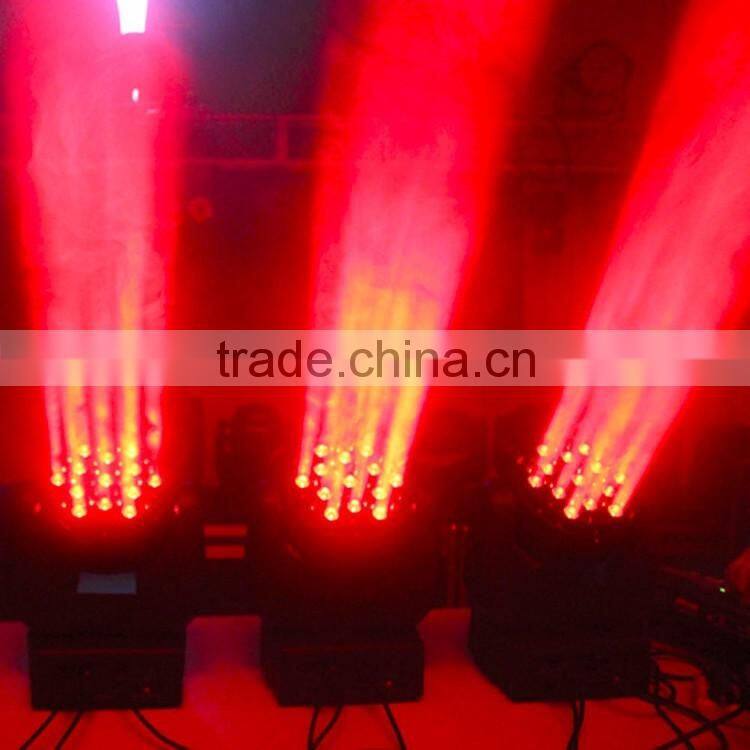

Powerful and sharpy beam effects
Mechanical shutter and adjustable speed strobe effect
Mechanical dimmer

CONTROL AND PROGRAMMING
DMX protocol signal: USITT DMX 512
DMX Channels:15CH

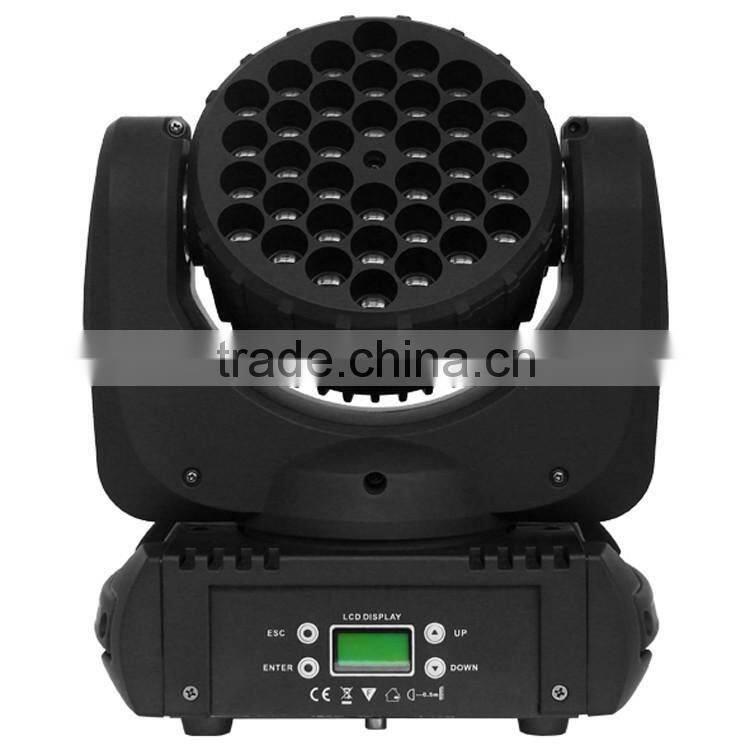

Display: LCD backlit Display
Pan/Tilt Resolution: 16 bit
Movement control: vectorial

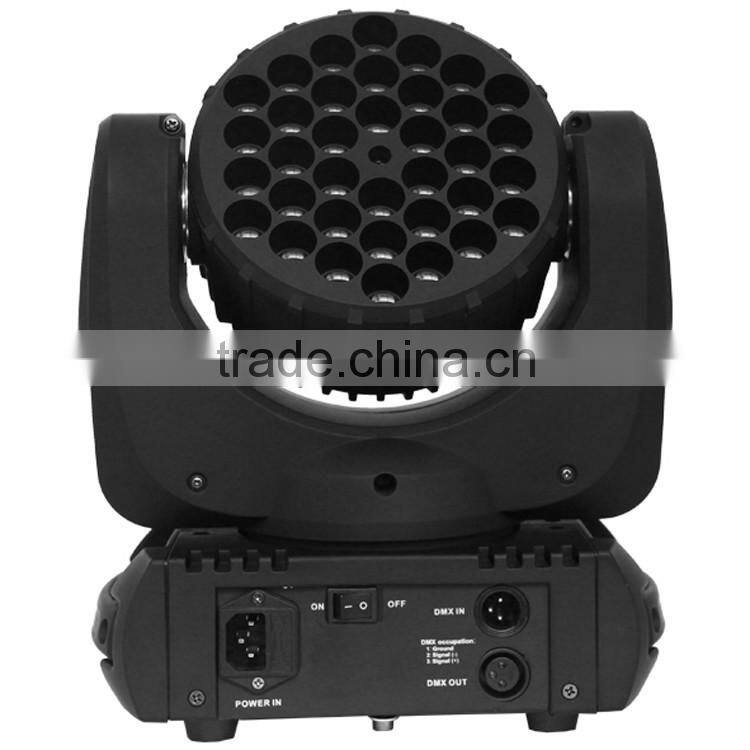

DMX signal connection: 3-pin XLR input & output

BODY
Aluminium structure with die-cast plastic cover.
Two side handles for transportation.

MOVING BODY
Travel:
- PAN = 540° - TILT = 270°
Maximum speeds:
- PAN = 2.45 sec
- TILT = 1.30 sec
Resolution:
- PAN = 2.11° - PAN FINE = 0.008°
- TILT = 0.98° - TILT FINE = 0.004°
Automatic repositioning of PAN and TILT after accidental movement not controlled by control unit.

ELECTRONICS
Function reset from the lighting desk
ON/OFF lamp control from the lighting desk
"AUTOTEST" function from menu
Electronic monitoring with status error
Cooling system monitoring
DMX level monitoring on all channels
Internal data transmission diagnostics

SAFETY DEVICES
Bipolar circuit breaker with thermal protection.
Automatic break in power supply in case of overheating or failed operation of cooling system.

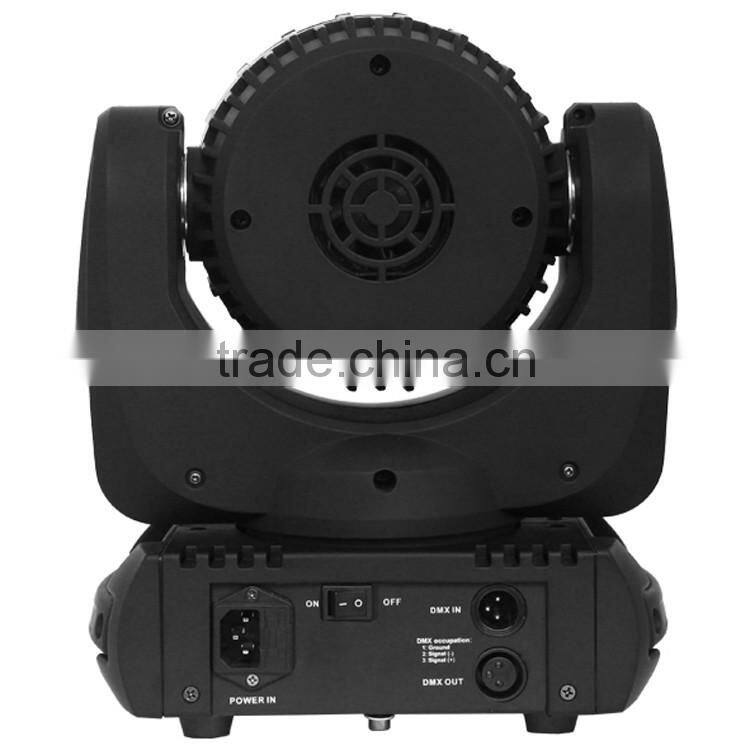

Forced ventilation with axial fans.

WORKING POSITION
Any Working Position
Hanging system: with fast-lock omega clamps (1/2 turn) on the base

CE MARKING
2006/95/EC - Safety of electrical equipment supplied at low voltage (LVD)
2004/108/EC - Electromagnetic Compatibility (EMC)
2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
FCC - FCC CFR 47 Part 18

SIZE
Length: 34cm
Width: 26cm
Height: 40cm
Weight: 5kg

Accessories
Power line: 1 piece
Users manual: 1 sheet
DMX line: 1 piece 1m

Cautions
Be careful with your operations. With a dangerous voltage you can suffer a dangerous electric shock when touching the wires!
Unplug mains lead before opening the housing!
To prevent fire or shock hazard,do not expose this fixture to rain or moisture!
This fixture must be earthed!
Do no try to repair it when the circuit is out of order, send it back to your supplier to repair!
