Durable and good price pultrusion profile FRP GRP fiberglass channel
frp channel, grp channel, fiberglass channel

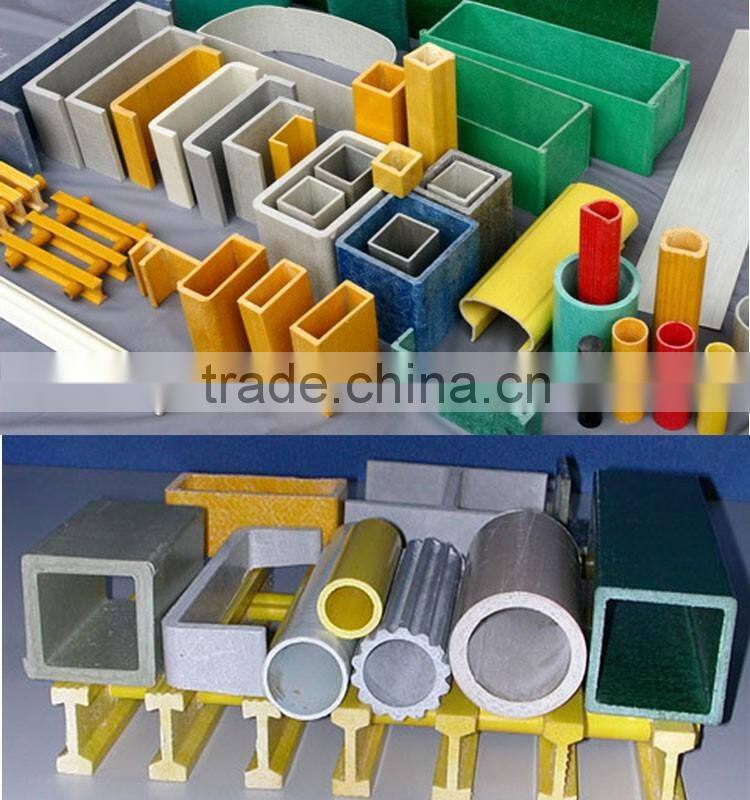

FRP profiles have a lot of kinds, glass fiber reinforced plastic pipe, glass fiber reinforced plastic square tube, glass fiber reinforced plastic rectangular pipe, glass fiber reinforced plastic round bar, FRP flange beam.
The FRP profiles of the basic components for resin and glass fiber (including cloth, felt, etc.), it is a fiber (including glass fiber, carbon fiber, organic fiber and other metal, non-metallic fiber) as the reinforcing material to resin (mainly epoxy resin. Polyester resin, phenolic resin) for glue linker, auxiliary other auxiliary materials (main materials: release agent, curing agent, catalyst, sealing die agent, UV light stabilizer, clean die water, gel coat, etc.) composite and become. It has high temperature resistance, corrosion resistance, high strength, small specific gravity, low moisture absorption, extension small and insulation good and a series of excellent characteristics.
Regular Sizes(other sizes can also be customized as requirements):
| Product Name | Size(mm) | Weight(kg/m) | Product Name | Size(mm) | Weight(kg/m) |
| Square tube | 120*120*5 | 4.1 | Channel | 200*100*9 | 6.4 |
| 100*100*5 | 3.7 | 180*50*8 | 4.05 | ||
| 100*100*2.7 | 2.2 | 160*70*9 | 4.8 | ||
| 80*80*3.5 | 2 | 150*60*8 | 3.86 | ||
| 70*70*4 | 1.95 | 100*50*6 | 2.16 | ||
| 60*60*5 | 2.05 | ||||
| 50*50*4 | 1.4 | 80*40*4 | 1.21 | ||
| 50*50*5 | 1.62 | 70*30*4.5 | 1 | ||
| 40*40*4 | 1.04 | 60*50*5 | 1.4 | ||
| 40*40*3.5 | 1 | 60*50*5 | 1.4 | ||
| 40*40*2.7 | 0.83 | 50*40*3.5 | 1 | ||
| 30*30*3.1 | 0.653 | 88*30*5 | 1.27 | ||
| 25*25*5 | 0.76 | ||||
| Rectangular tube | 180*60*4 | 3.6 | |||
| 160*60*4 | 3.16 | I beam | 200*100*10 | 7.4 | |
| 140*60*3 | 2.16 | 150*150*7.2 | 6 | ||
| 120*3.5*60*3 | 2.3 | 150*100*6.5 | 4.5 | ||
| 100*50*5 | 2.7 | 125*125*9.4 | 6.5 | ||
| 90*4*40*7 | 2.236 | 110*50*6 | 2.12 | ||
| 90*4*40*5 | 1.9 | 70*25*4 | 0.85 | ||
| 86*32*3 | 1.51 | 65*25*3 | 0.64 | ||
| 75*3*35*6 | 1.58 | 58*15*4.5 | 0.67 | ||
| 63.5*37*3.5 | 1.274 | 38*15*4 | 0.5 | ||
| 60*35*3 | 1 | 33*20*4 | 0.48 | ||
| 95*35 | 1.4 | 30*20*10*4 | 0.41 | ||
| 60*30*3 | 1.07 | 25*40*15*4 | |||
| 60*30*2.7 | 0.87 | 50*25*15*4 | |||
| 58*26 | 25*15*5 | ||||
| 48*32*3 | 0.88 | 25*15*4 | 0.37 | ||
| 48*28*3 | Rod | Φ25 | 1.05 | ||
| 40*20*2.5 | Φ20 | 0.58 | |||
| 58*26 | Φ16 | 0.4 | |||
|
Rectangular tube with wing 50*50*5 |
2.7 | Φ14.5 | 0.3883/0.318 | ||
| extension ladder parts | 70*3*30*3 | 1.4 | Φ14 | 0.28 | |
| Ladder brace | 39*36*26 | 0.67 | Φ12 | 0.22 | |
| 35*28*20 | 0.58 | Φ10 | 0.15 | ||
Round tube |
Φ90*76.6*6.7 | 3.55 | Strip | 100*2.5 | 0.51 |
| Φ80*70*5 | 2.3 | 50*8 | 0.74 | ||
| Φ65*57*4 | 1.45 | 50*5 | 0.48 | ||
| Φ60*48*6 | 1.88 | 40*4 | 0.31 | ||
| Φ60*50*5 | 1.66 | Angle steel | 50*50*5 | 0.89 | |
| Φ50*40*5 | 1.3 | 40*40*4 | 0.6 | ||
| Φ50*42*4 | 1.06 | 30*30*3 | 0.3 | ||
| Φ55 | Cutting | 0.38 | |||
| Φ51*43*4 | 1.09 | Fluted tube | 25*36 | 0.853 | |
| Φ48*38*5 | 1.26 | Telescopic trolley | 0.76 | ||
| Φ47*39*4 | 1 | Deck | 38*300 | 4.7 | |
| Φ46*38*4 | 0.97 |
Kick plate 100 |
0.72 | ||
| Φ46*42*2 | 0.53 |
Kick plate 200 |
1.36 | ||
| Φ40*32*4 | 0.82 | Bracket | 58 | 4.5kg/m2 | |
| Φ38*31.8*3.1 | 0.62 | 38 | 3.7kg/m2 | ||
| Φ32*28*2 | 0.33 | 200*200*70 | 7.44kg/m2 | ||
| Φ31*25*3 | 0.51 | 300*250*70 | 5.7kg/m2 | ||
| Φ25*20*2.5 | 0.38 | Support bar | 0.37 | ||
| Φ21.5*16.5*2.5 | 0.285 | Bottom | 0.228 | ||
| Φ19*12.5*3.25 | 0.295 | Lid | 0.235 | ||
| M plate | 1.2 |
