Home > Products > Micro Panel Printers > Easily Embedded Receipt Thermal Panel Printer
Easily Embedded Receipt Thermal Panel Printer
- 10000 Unit / Units per Month
- Xiamen
- Credit Card
You May Like
Product Details
Products Status | Stock | Type | Other, thermal printer | |
Style | Black And White | Use | Barcode Printer | |
Interface Type | Other, RS232/TTL/USB | Max Paper Size | 58mm | |
Black Print Speed | 50-80mm/s | Color Print Speed | NA | |
Max. Resolution | 576 Dots/line | Brand Name | Sanor | |
Model Number | A3 | Place of Origin | Fujian, China |
Product Description

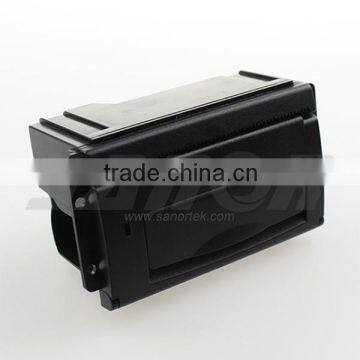

Easily Embedded Receipt Thermal Panel Printer
Feature:
- 58mm thermal bus ticket printer machine
- Smart appearance
- Easy paper loading
- Low noise thermal printing
- Different interfaces RS232/TTL/USB as optional
- Front panel make paper replacement easily
- Paper ending detection, automatic memory printing
- Compatible with APS SS205-CH
Application:
- Taxi meter print proposal
- Recording Meter print proposal
- Self-service Print proposal
- Ticket Machine print proposal
- Medical instrument print proposal
- Weight Machine Print proposal
- Electric Instrument Print proposal
- Test Instrument Print proposal
Specification:
Printing Method | Thermal Dot Line | |
Printing Speed | 50-80mm/s | |
Resolution | 8 dots/mm, 384 dots/line | |
Effective Printing Width | 48mm | |
Character | Character Set | ASCII,GB2312-80(Chinese) |
Print Font | ANK:(8x16,9x17,9x24,12×24), Chinese: 24×24 | |
Paper Spec | Paper Type | Thermal paper |
Paper Width | 57.5± 0.5mm | |
Paper Thickness | 60-85µm | |
Roll Core Inner Diameter | 13mm(min.) | |
Paper Roll Diameter | Max: 23mm | |
Reliability | MCBF | 5 million lines |
Interface | RS-232/TTL/USB | |
Insert Depth | 40.5/43.5mm | |
Power Supply (Adapter) | DC5V-9V/12V | |
Physical | Outline Dimension (WxDxH) | 44.5D*79W*48.5/51.5H mm |
InstallationPortSize | 73*44.5mm | |
Color | Black/Beige | |
Environment | Operating Temp | 5°C ~ 50°C |
Operating Humidity | 10% ~ 80% | |
Storage Temp | -20°C ~ 60°C | |
Storage Humidity | 10% ~ 90% |
Company Information
Xamen Sanor Electronic Technology Co.,LTD. is a professional printing solutions of high and new technology Company. with the factory Located in the beautiful coastal city - xiamen.The company since was established,has been focused on bill printing field, always adhere to independent innovation, and has a number of intellectual property rights, after years of development and technology accumulation, the company designed and developed a variety of printing equipment are very popular with the masses of customers at home and abroad. Is the current domestic professional micro print solution development and one of the manufacturers.
1.we own the advanced production facilities for manufacturing printers.
2. our company employee the skill-full workers, almost service in our company for over 4 years.
3.we have the professional team in sourcing and quality inspection team. Every printer will request for abundant of times inspection from raw material to a finished product, such as raw material sourcing assessment, incoming material inspection, PCB board test, auto cutter test,printerhead test... finished printer test and so on.
4.our experienced packing team will pack every printer in strong carton in best way for air/seaworthy transportation.
We take care of everyting from manufacturing to goods arrival!
FAQ
1, Q: Are you a factory or trading company?
Sanor:We are a manufacturer,owing the professional design group,skill-full staffs and quality inspection team,located in add:3/F,No.318,Tongji South Road,Jimei District,Xiamen,China,361021.
2, Q: We would like to have our own brand, is that ok?
Sanor:Yes, we can accept OEM/ODM with your brand or your design. But we will require a MOQ for different models.
3, Q: Besides the English language, do your printers support other languages? And what operation system they backup?
Sanor:Yes, our printer not only supports English language, but also Russian, Spanish, Portuguese etc 48 different languages available, and it backups iOS, Android, Windows, Linux operation systems.
4, Q: How much your sample?
Sanor:(1) Samples charge:According to your order printer. Sampling time:5-7days
(2) Return:the sample charge will be return when we get your large order.
5, Q: What sale after service do you offer?
Sanor: Each printer will have 12 months warranty. Free components will be offered for repair in warranty period, if the issue caused by non-artificial damages.
