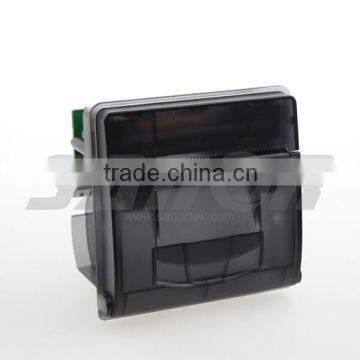

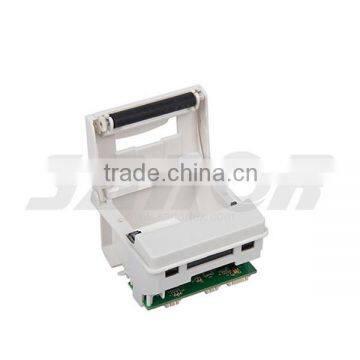

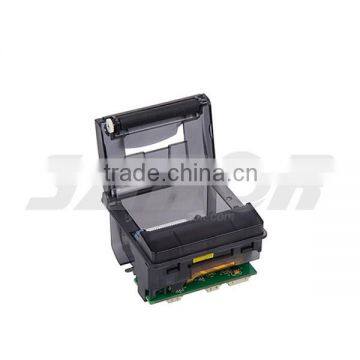

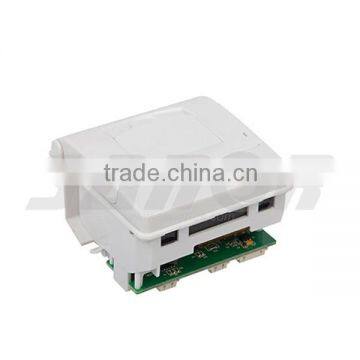

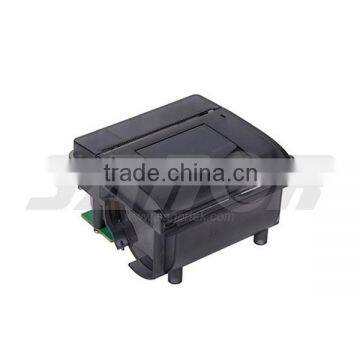

58mm Thermal Panel Printer for Embedded System
Brief:
Add a mini printer to any microcontroller project with this very cute thermal printer. Thermal printers are also known as receipt printers, they're what you get when you go to the ATM or grocery store. Now you can embed a little printer of your own into an enclosure. This printer is ideal for interfacing with a microcontroller, you simply need a 5V-9V/12V TTL/USB/RS232 output from your microcontroller to print text, barcodes, bitmap graphics, even a QR code!
This package comes with a thermal printer including the print head (it does not require ink, a set of power and data cables, and two plastic shims for panel mounting.
Feature:
- Compatible with APS ELM205-CH
- Easy paper loading
- Low noise thermal printing
- Different interfaces optional
- Easily embedded to any kinds of instruments and meters
- Medical Equipment,
- Measureing equipment,
- Security Equipment,
- Automotive
- ID Automation and Instruments
- Hospitality and Retail
- EFTs POS
- Fiscal printers
- Gas pumps
Specification:
Printing Method |
Thermal Line |
|
Printing Speed |
50-80mm/s |
|
Resolution |
8 dots/mm, 384 dots/line |
|
Effective Printing Width |
48mm |
|
Character |
Character Set |
ASCII,GB2312-80(Chinese) |
Print Font |
ANK:(8x16,9x17,9x24,12×24), Chinese: 24×24 |
|
Paper Spec |
Paper Type |
Thermal paper |
Paper Width |
57.5± 0.5mm |
|
Paper Roll Diameter |
Max: 40mm |
|
Reliability |
MCBF |
5 million lines |
Interface |
Serial(RS-232,TTL)/USB |
|
Insert Depth |
34.65mm |
|
Power Supply (Adapter) |
DC5V-9V/12V |
|
Physical |
Outline Dimension (WxDxH) |
76.8x77.4x47.7mm |
Installation Port Size |
72.8 x 73.26mm |
|
Color |
Beige/Black/White |
|
Environment |
Operating Temp |
5°C ~ 50°C |
Operating Humidity |
10% ~ 80% |
|
Storage Temp |
-20°C ~ 60°C |
|
Storage Humidity |
10% ~ 90% |
|
Company Information
Xamen Sanor Electronic Technology Co.,LTD. is one of professional thermal printer providers and highly specialized in designing,developing,manufacturing and marketing of printing.
With rich of experience and professional R&D team,Sanor successfully launched a series of printing equipment.Such as portable printers,bluetooth printers,micro panel printers,Kiosk printers,POS receipt printers,barcode label printers,as well as printer mechanism and so on.
There are some pictures of our company as following:
Why you choose us:
1.we own the advanced production facilities for manufacturing printers.
2. our company employee the skill-full workers, almost service in our company for over 4 years.
3.we have the professional team in sourcing and quality inspection team. Every printer will request for abundant of times inspection from raw material to a finished product, such as raw material sourcing assessment, incoming material inspection, PCB board test, auto cutter test,printerhead test... finished printer test and so on.
4.our experienced packing team will pack every printer in strong carton in best way for air/seaworthy transportation.
We take care of everyting from manufacturing to goods arrival!
Packing:20units/ctn, 1carton is 15kg;
Shipping:Air/sea/express
1, Q: Are you a factory or trading company?
Sanor: We are a manufacturer,owing the professional design group,skill-full staffs and quality inspection team,located in add:3/F,No.318,Tongji South Road,Jimei District,Xiamen,China,361021.
2, Q: We would like to have our own brand, is that ok?
Sanor: Yes, we can accept OEM/ODM with your brand or your design. But we will require a MOQ for different models.
3, Q: Besides the English language, do your printers support other languages? And what operation system they backup?
Sanor: Yes, our printer not only supports English language, but also Russian, Spanish, Portuguese etc 48 different languages available, and it backups iOS, Android, Windows, Linux operation systems.
4, Q: How much your sample?
Sanor:(1) Samples charge:According to your order printer. Sampling time:5-7days
(2) Return:the sample charge will be return when we get your large order.
5, Q: What sale after service do you offer?
Sanor: Each printer will have 12 months warranty. Free components will be offered for repair in warranty period, if the issue caused by non-artificial damages.
