Wireless Video Door Phone Intercom System
Technical specification:
Monitor |
Outdoor Camera |
Standby Operating:15mA |
Standby Operating:16mA |
Operating Current:350mA |
Operating Current:310mA |
|
Voltage:3.7V Li-ion Battery Capacity:1400mA/h |
Voltage:DC5V/Li-ion 3.7V Battery Capacity:1400mA/h |
Transmitting Power:16-19dBm |
Transmitting Power:16-19dBm |
Receiving Sensitivity:-100dBm |
Receiving Sensitivity:-100dBm |
Audio Frequency:300Hz-3000Hz |
Audio Frequency:300Hz-3000Hz |
2.4 inch TFT screen |
OV7725 Panorama Camera |
Support Photograph,can save 10pcs pictures |
Feature as follow :
11. Wide Angle Intercom Kit
Kit Includes:
1 x Portable Indoor Receiver & Battery.
1 x Caller Station & Battery.
1 x Indoor Receiver Charging Cradle.
2 x Plug In Transformers.
1 xTool (for access to the caller station battery).

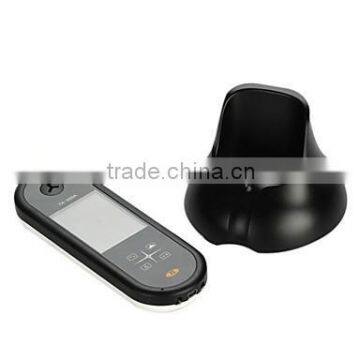

Indoor Receiver Specification:
1) Portable: Yes.
2) Re-Chargeable: Yes.
3) Power Supply: Battery & Transformer.
4) Transformer: Plug in 5v 1000MA.
5) Battery Type: 3.7v 1400MA Li-ion.
6) Video Operation: Yes.
7) Two Way Audio: Yes.
8) Picture Storage: Yes (last 10 un-answered callers).
9) Notification of New Picture: Yes.
10) Colour Picture: Yes.
11) Unlocking Door Facility: Yes (when used with transformer).
12) Monitor Mode: Yes (when used with transformer).
13) Charging Time from Flat: 3 hours.
14) Standby Current: 4 - 8 MA.
15) Transmission Power: 18-20dBm.
16) Operating Temperature: -20 Celcius.
17) Transmission Distance: 100 meters (open air).
18) Size of Indoor Receiver: 165 (H) x 53 (W) x 25 (D) mm.
19) Charging Cradle Size: 105 Diameter x 78 (H) mm.
20) Colour: Black & White (indoor receiver), Black (charging cradle).
Caller Station Specification:
1) Power Supply: Battery or Transformer (both supplied).
2) Plug in Transformer: 5v 1000MA.
3) Battery: 3.7v 1400MA Li-ion.
4) Back Up Battery: Yes (when used with transformer).
5) Day & Night Camera: Yes.
6) Two Way Audio Communication: Yes.
7) Size: 190 (H) x 89 (W) x 60 (D) mm.
8) Relay Output: Yes (N/O or N/C).
9) Charging Time from Flat: 3 hours.
10) Standby Current: 15 - 18 MA.
11) Transmission Power: 18-20dBm.
12) Operating Temperature: -20 Celcius.
13) Transmission Distance: 100 meters (open air).
14) Colour: Black & Chrome.

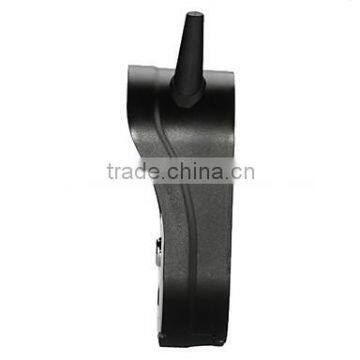

Wireless Video Door Phone Intercom System Picutres
Wireless Video Door Phone Intercom System
This unique Wireless Video Door Phone Intercom System also includes a Covert Camera which records
and stores images of callers,for times when the owner has not answered, this is ideal for viewing
what friends or family have called, but also to help catch bogus callers and potential thieves.
It is not uncommon for a potential thief to ring a door bell during the day,
this allows them to find out when the property is often left empty !!
The wireless video door phone intercom system allows the home owner to safely and easily communicate with a caller,
using video and audio signals.
The wireless range between the caller station and indoor portable receiver is 300 meters
(open line of sight), which typically equates to 100 meters going through various internal and
external walls.
The caller station can be powered by battery and plug in transformers (both supplied).
A very useful wireless video door phone intercom system, which gives you the added benifit or recording images of
missed callers.
