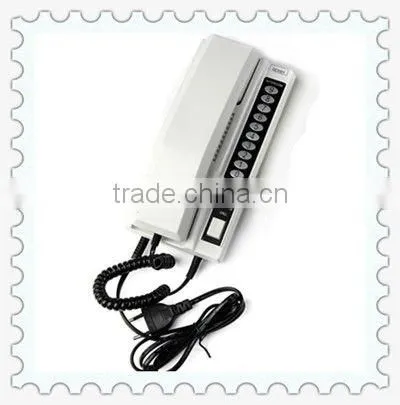

Super Full Duplex 2.4G Wireless Indoor Intercom System

Super Full Duplex 2.4G Wireless Indoor Intercom System thumbnail-1
Super Full Duplex 2.4G Wireless Indoor Intercom System photo-1
US$ 1 - 200 MOQ: 5 Sets
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
TA
Model Number:
TA-222DS-011
Contact Supplier Request Quote Chat Now
Dongguan Ta-Rf Security Electronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
yantian port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name TA
Model Number TA-222DS-011
Type Other, Hung/Flatwise, Wireless Intercom
Dimensions 21.5*10.5*7CM
Frequency Range 2402-2483MHz
Storage Channel 83 channel
Talk Range 500M

Specifications

Super Full Duplex 2.4G Wireless Indoor Intercom System
-AFH technology
-Super anti-jamming capability
-10year manufactuer

Super Full Duplex 2.4G Wireless Indoor Intercom System:



Product More detail Features:

1,Using 2.4G ISM public frequency band: 2402-2483MHz

 2,Air transfer rate: 250K

 3,Transmitting Power: Less then 20dBm(Less then 100mw), Receive Sensitivity: -100 or less

 4,AFH technology, super anti-jamming capability, can share 2.4G band with wireless LAN and bluetooth devices(need to improve)

 5,Panel a call key and two indicator lights: power indicator light(red) and operating light(green).

 6,With configure Code function

7,Power supply: AC 110/220V,  Electric Current: within 200mA

8,Communication distance:  more then 500 meters in open land



Applicable Scope:

1. Office interoperate

2. Family interoperate

3. Workshop interoperate

4. Access messenger



Instruction:



Configure Code:

1,With each machine in standby mode or off-hook, long press "Call"key five seconds, red and green lights bright at the same time, then both machine enter into Configure Code status, Configure Code time is about 16 seconds.

2,  If Configure Code successful, sounds 'Di..'three times and two lights twinkle alternately three times to exit Configure Code  then enter into standby mode.

3,If Configure Code failed, 16 seconds later power indicator ligh extinguish and enter into standby mode

4,on-hook mode, press key 'clean configure code 'then  sounds 'Du…'(this function is built-in)







Normal Operation:



1,Standby Mode:

On-hook mode, phone always in receiving mode( no sleep for the moment), power indicator twinkle four secnds a time, when the machine is picked pu can not be called.

2,Call Status:

1): Press CALL key(or press call key after pick up the phone) red light brights and enter into call status



2): If no one answer the call, considered to be no signal and sounds'Di…'four times to indicate no signal and end call status. If signal received phone sounds 'Du…'

a, If no one answer the call, sounds 'Du'15 times and exit call status.(call effective answered within one minute)

b,If call is answered , then stop sound 'Du…', green light brights and enter into call status.



3): With the phone called in standby mode, if receives signal then red light brights and sounds 'Ding Dong..' two times then stop sound, last about one minute then enter into standby mode. If answer the call, then stop sound, green light brights and enter into call status.



4): In the status of waiting answer the call, press CALL key again:

a. if the phone called sounds 'Ding Dong..'  hosts do not sound 'Ding Dong...' again,  sounds 'Du…' 15 times and re-time one minute at the same time.

b. if the phone called does not sound 'Ding Dong', hosts sounds 'Ding Dong' two times,  also sounds 'Du…' 15 times and re-time one minute at the same time.



5): Hang Up:  If call is hang up ,  will hear the sound 'Di..' one time. The hosts can hang up during the call.



TA-222 Packing Details:

Two Piece Weight: 1256g

Box Weight:174g

G,W,: 1430g

Box Size: 27.5*21.*8.5CM

Model Size :21.5*10.5*7CM

Carton Size :58*44*37CM
