3.5inch IR Camera Long Range Wireless Video Door Phone

3.5inch IR Camera Long Range Wireless Video Door Phone photo-1
US$ 86.35 - 99 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
TA
Model Number:
TA-896
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name TA
Model Number TA-896
Camera Other, cmos
Power 220v

Specifications

1. Wireless video door phone
2. For villas, apartments, houses
3. 3.5inch LCD color screen
4. Waterprooof IP44
5.3.5inch

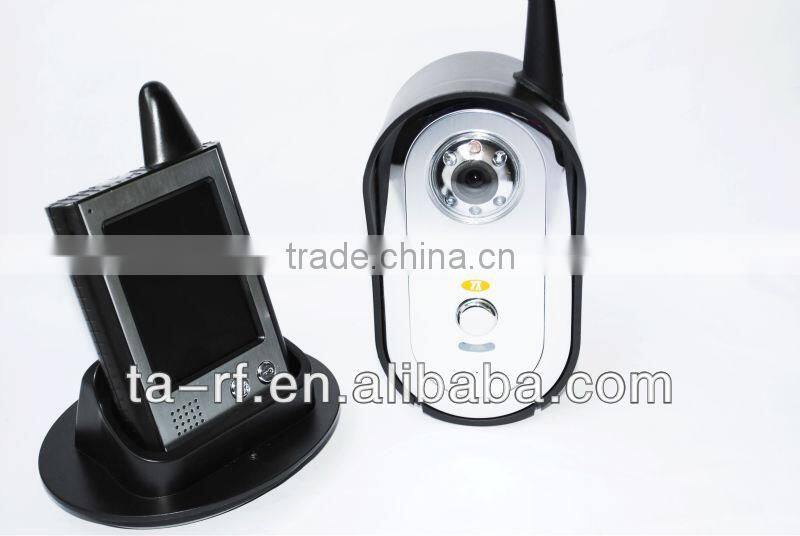

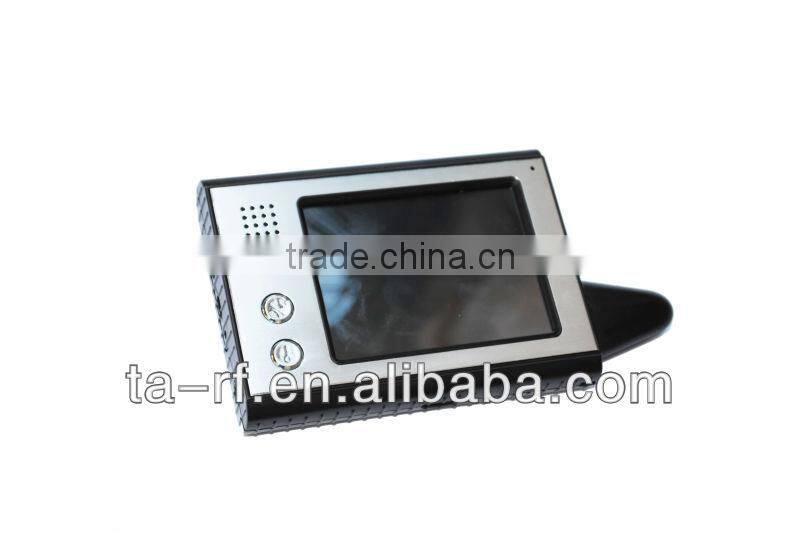

3.5inch IR camera long range wireless video door phone



1. Wireless video door phone

2. Pictures and video recording manually and automatically.

3. For villa, house, apartment.

4. 3.5inch LCD screen

5. 120 degree wide angle lens

6. 2 outdoor camera, 3 indoor monitors Max.

7. Nokia chargeable lithium battery supported, adaptor equipped.

8. IP44waterproof

9. Door release

10. 2.4G public frequency for the users from all over the world.

11. Patented shape design, unique supplier (manufacturer/factory) and unique products for you, no copy.

12. CE, Fcc and RoHS approved.



3.5inch IR camera long range wireless video door phone3.5inch IR camera long range wireless video door phone3.5inch IR camera long range wireless video door phone3.5inch IR camera long range wireless video door phone

Specification For the TA896 Wireless Video Door Phone

  • Adopt 2.4G ISM digital public frequency brand: 2402~2483.5MHz.
  •
  • Transmitting power 16~20dBm, receiving sensitivity: 90~100dBm.
  •
  • Intercom speech pattern.
  •
  • Image data and voice data synchronous transmission.
  •
  • Outdoor machine adopts 300,000pixels camera, indoor machine adopts 3.5’’ TFT display screen to show vivid and clear images.
  •
  • SD card for video and picture storage (TF card, auto circulation storage, Max: 4G supported).
  •
  • Power supply: lithium battery 3.7V for indoor machine, USB interface for charge and downloading.
  •
  • Chargeable lithium battery 3.7V for outdoor machine, adapter: 5V 1A.
  •
  • Adopt AFH self-adaption frequency hopping technology, which allows the machine work well along with sharing 2.4G frequency band with WIFI and Bluetooth simultaneously.
  •
  • Transmission distance reaches 300meters at an open space.
  •
  • 2 to 3 function(2 outdoor units and 3 handsets)could be achieved, handset could call to each other.
  •
  • Outdoor machine adopts tamper alarm function.
  •
  • Images adopts MJPEG compress mode, one-way wireless transmission could reach 12fps.
  •
  • Transmission channel, synchronization channel and40Bits code generate at random.
  •
  • Outdoor machine adopts night vision function (infrared lamp or LED flash) controlled by indoor machine.
  •
  • Outdoor machine adopts unlocking door function,power for electric latch: 12V (User Supply).
  •
  • CE/CCC/Fcc/R&NTTE/RoHS approved.



Parameters for TA896 Wireless Video Door Phone

Outdoor unit

Power

Specific lithium battery BP-6M(1100mAh)

Consumption

400mA



Environmental condition



  Temperature: -10°C~+70°C

Waterproof grade

IP44

Placement

Hang on outwall

Surface material

ABS & hardware accessories

Camera

320*480pixels

View angle

120° wide angle

Night vision pattern

2 leds or IR lamp

Working time

3hours continuously

Standby time

1000hours

Charge time

3hours

External power

DC5V 1A

Indoor monitor

Power

Specific lithium battery BP-6M(1100mAh)

Consumption

400mA

Environmental condition

Temperature: -0°C~+70°C

Placement

put on the table

LCD size

3.5" TFT color screen

Wireless communication mode

2.4GHz

Working time

2hours continuously

Standby time

100hours

Charge time

3hours

External power

DC5V 1A

Application distance

About 300m in open space
